EPEVER 150W solar panel

EPEVER M12-60-150 150W solar panel

Solar panel EPEVER M12-60-150 The 150W solar panel is a technologically advanced device that ensures efficient and reliable solar energy production. Thanks to its high cell efficiency of 22.6% and its robust construction with tempered glass and aluminum frame, the panel is an excellent choice for a variety of applications, both stationary and mobile.
Its compact dimensions and low weight make it easy to install, making it ideal for installations on roofs, campers, boats, and off-grid systems. Equipped with an IP65/IP67-rated junction box, the panel is resistant to harsh weather conditions and moisture, ensuring long-term reliability.
Thanks to compatibility with popular MC4 connectors and high electrical parameters, this panel is ideal for systems with voltages up to 700V, offering stable operation across a wide temperature range. It's an excellent choice for users looking for an efficient and durable source of renewable energy.

Technical specifications:

1. Model: EPEVER M12-60-150


2. Nominal output power (Pmax): 150 W


3. Operating temperature: -45°C ~ +80°C


4. Junction box: IP65/IP67 (water and dust resistance)


5. Cell efficiency: 22.6%


6. Open circuit voltage (Voc): 40.8 V


7. Voltage at maximum power (Vmp): 33.4 V


8. Short circuit current (Isc): 4.77 A


9. Current at maximum power (Imp): 4.50 A


10. Maximum system voltage: 700V


11. Maximum series fuse: 10 A

Connectors and cables:

• Connector: Standard unspecified but compatible with MC4.


• Cable: Not supplied as standard, non-standard application possible.

Temperature coefficients:

• Temperature coefficient Isc: +0.06% / °C


• Temperature coefficient Voc: -0.32% / °C


• Temperature coefficient Pmp: -0.45% / °C

Standard Test Conditions (STC):

• Radiation intensity: 1000 W/m²


• Cell temperature: 25°C


• AM spectrum: 1.5

Material and dimensions:

1. Glass: 3.2 mm tempered glass

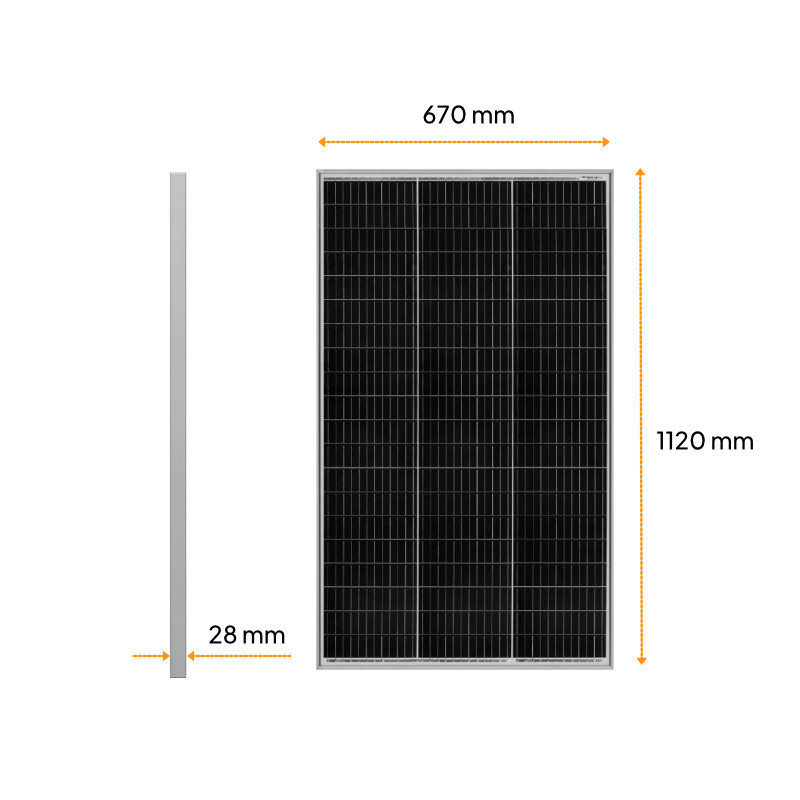

2. Dimensions: 1120 x 670 x 28 mm


3. Frame thickness: 25 mm


4. Libra: 8.3 kg

Advantages:

• High performance: Cell efficiency of 22.6%, which allows for efficient energy generation even in limited space.


• Resilience: Weatherproof construction with IP65/IP67 protection class.


• Compact size: Lower weight and dimensions facilitate installation in various systems, both stationary and mobile.


• Versatility: Thanks to compatibility with MC4 connectors and high operating voltages, the panel is easy to integrate with various photovoltaic systems.

Ideal applications:

• Off-grid systems (e.g. campers, boats, island systems).


• Hybrid systems and small home installations.


• Power supply to devices on recreational plots.

The panel is resistant to harsh weather conditions thanks to its IP65/IP67 protection rating and offers stable operation across a wide temperature range (-45°C ~ +80°C). Compatibility with popular MC4 connectors and the ability to integrate with systems up to 700V make it a versatile tool for creating effective photovoltaic systems.
EPEVER M12-60-150 panel is the perfect solution for users who value reliability, high quality and efficiency in renewable energy production.
