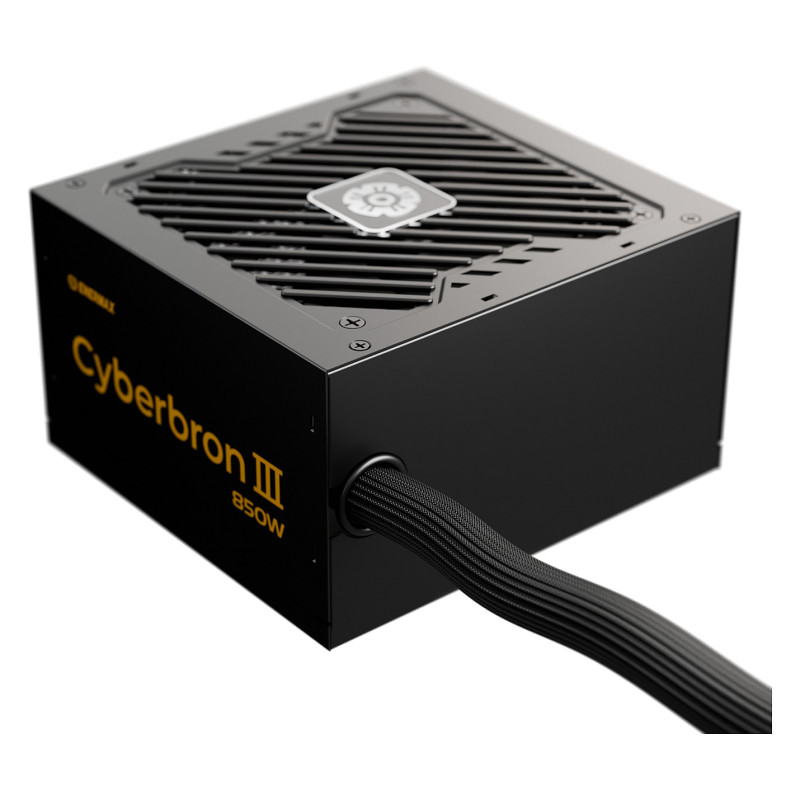

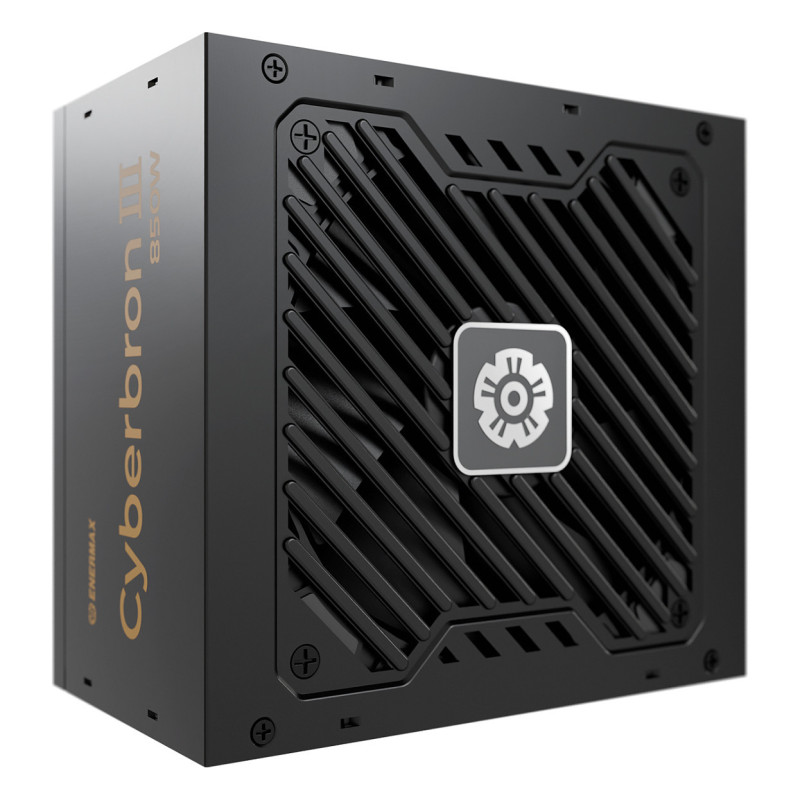

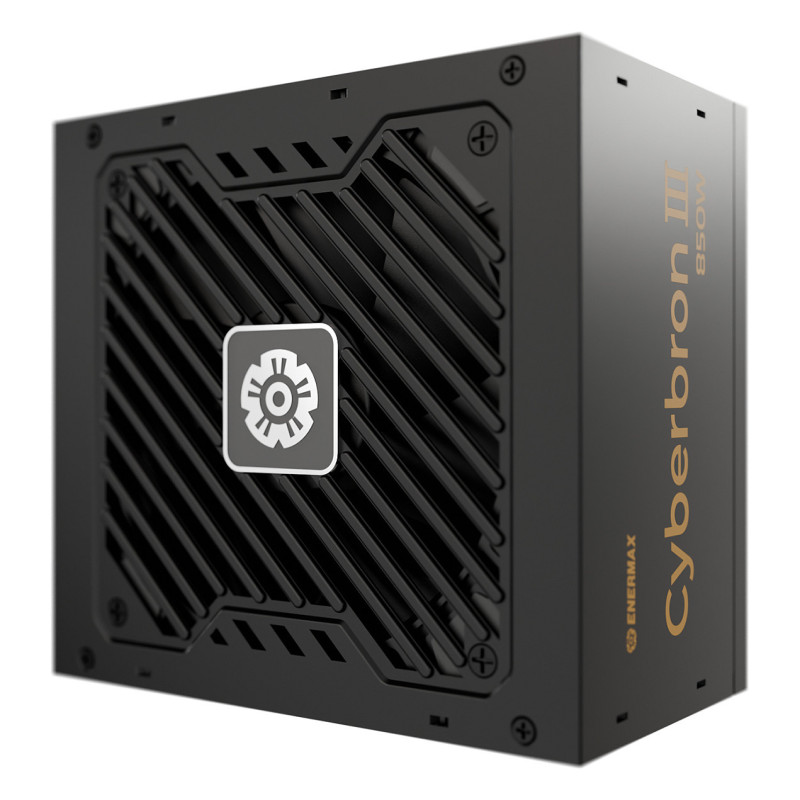

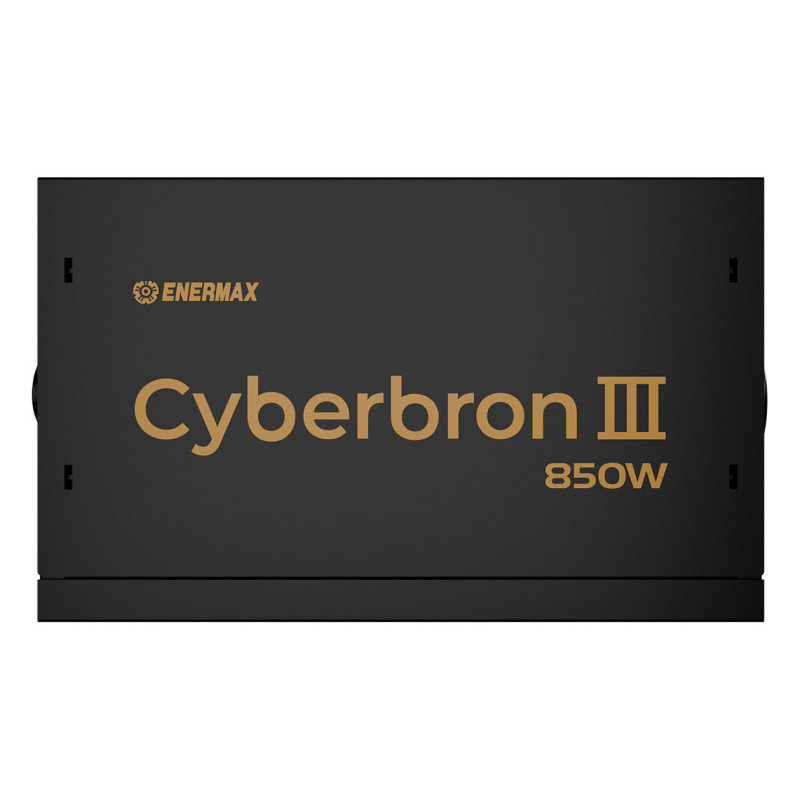

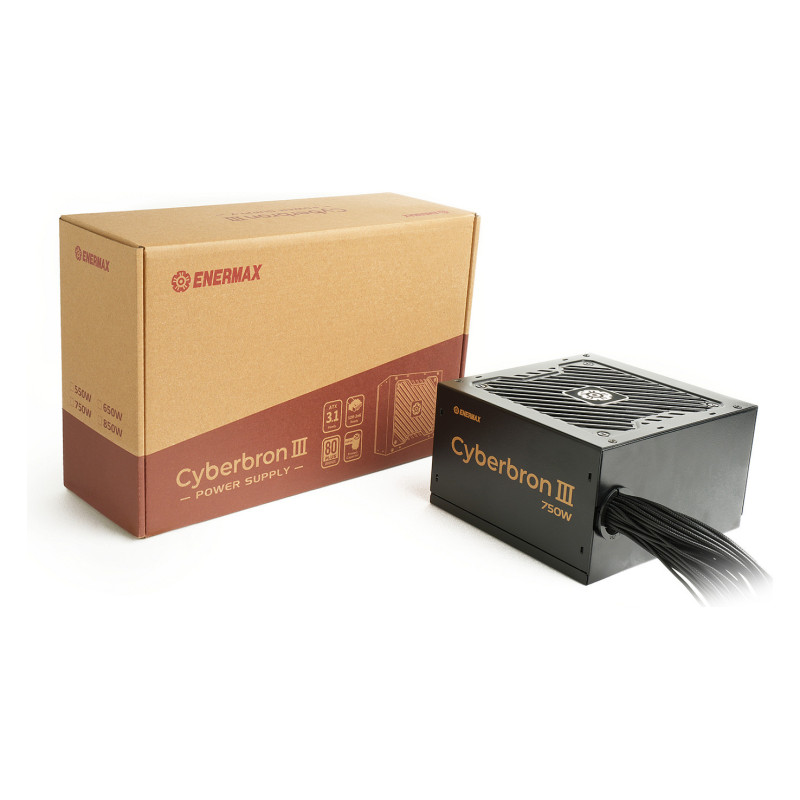

Enermax EMB850EWT-NAC power supply unit

Enermax EMB850EWT-NAC. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm

ENERGY CONSERVATION
80 PLUS® Bronze certified with 88% efficiency at 50% loading
Better power factor performance with active PFC design

ATX 3.1 READY
Cyberbron III series meets the Intel ATX 3.1 standards, reaches 60% low load efficiency and complies with required power supply timing standards.
The 750W model provides one 450W 12V-2x6 cable and
850W model provides one 600W 12V-2x6 cable.

SILENT OPERATION
120mm FDB fan provides an ultra-silent user experience

NON-MODULAR DESIGN WITH MESH-SLEEVED CABLES
Non-modular design with essential cables for easy system assembly.

JAPANESE PRIMARY CAPACITORS
High-quality Japanese primary capacitors provide the power supply's durability and ensure the Cyberbron III series is stable and reliable.

Power

Total power: 850 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 10-5 A
Combined power (+3.3V): 130 W
Combined power (+12V): 840 W
Combined power (+5V): 130 W
Max output current (+3.3V): 20 A
Max output current (+12V1): 70 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 8
Feature: EPS power connector (4+4 pin)
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Fan diameter: 12 cm
