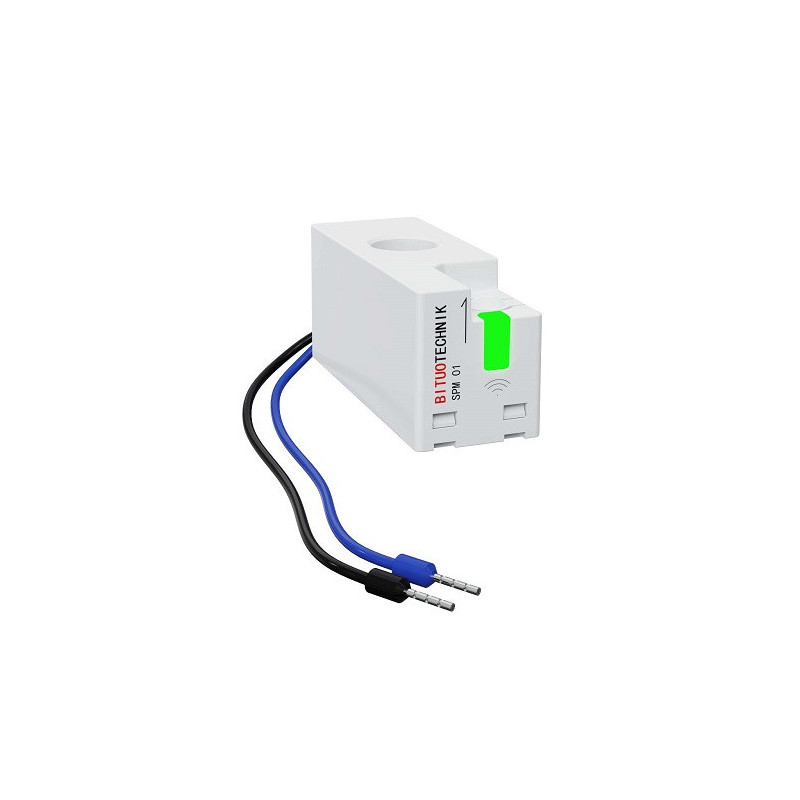

Energy Sensor - Tuya 1P+N 63A Wi-Fi
Product reference:
14-9990001083823
The smart energy sensor monitors energy consumption in single-phase systems up to 63A and connects via 2.4GHz Wi-Fi. Compatible with the Tuya app and voice controlled via Amazon Alexa and Google Assistant.
Energy Sensor - Tuya 1P+N 63A Wi-Fi
Product reference:
14-9990001083823
The smart energy sensor monitors energy consumption in single-phase systems up to 63A and connects via 2.4GHz Wi-Fi. Compatible with the Tuya app and voice controlled via Amazon Alexa and Google Assistant.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Smart Energy Sensor, 1P+N, 63A, Wi-Fi, Tuya
This smart energy sensor monitors energy consumption in single-phase systems up to 63A and connects via 2.4GHz Wi-Fi. Compatible with the Tuya app and voice control via Amazon Alexa and Google Assistant.
- Monitors energy consumption in single-phase systems (1P+N) with maximum current 63A.
- Easily connects via the Tuya app for real-time data analysis and energy history tracking.
- Compatible with Amazon Alexa and Google Assistant for convenient voice control.
- The compact design allows flexible installation in smaller distribution panels without taking up DIN rail space.
Features | |
|---|---|
| Product type | Smart energy sensor |
| Model | 1P+N, 63A, Wi-Fi, Tuya |
Specifications | |
| Maximum current | 63 A |
| Working voltage | 220~240V AC |
| Frequency | 50/60Hz |
| Rated insulation voltage | 250V |
| Energy measurement accuracy | 1%; Class 1 |
| Working power | 0.5W |
| Rated impulse withstand voltage | 4 kV |
| Overload category | III |
| Connector type | Wi-Fi (2.4 GHz), BK7231 SoC |
| Program compatibility | Tuya Smart / Smart Life (Android, iOS) |
| Reset button | Yes |
| Indicator light | Yes |
| Installation | Down |
| Protection class | IP20 |
| Working temperature | -25°C~+60°C |
| Diameter of the measured cavity | 9.8mm |
| Dimensions | 46.8 x 17.8 x 21.3 mm |
| Height | 60mm |
| Length | 200mm |
| Weight | 150 g |
| Width | 100mm |
