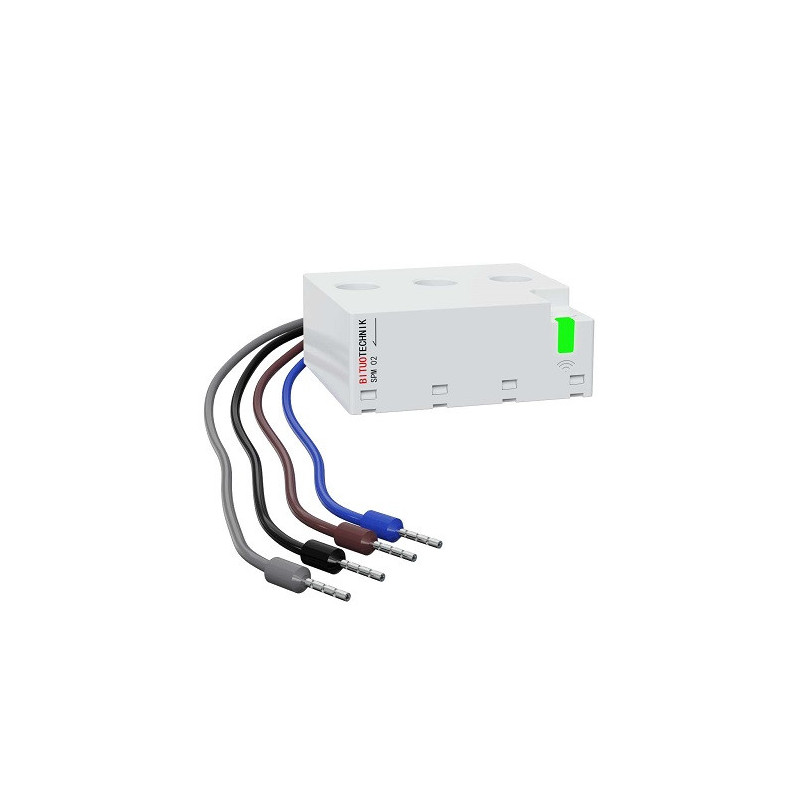

Energy Sensor - 3P+N 63A Wi-Fi Tuya Compatible
Product reference:
14-9990001083847
The smart energy sensor supports three-phase systems with a maximum current of 63A and allows you to monitor energy consumption in real time via Wi-Fi using the Tuya app. It is compatible with Amazon Alexa and Google Assistant, and is also designed to be installed under a circuit breaker.
Energy Sensor - 3P+N 63A Wi-Fi Tuya Compatible
Product reference:
14-9990001083847
The smart energy sensor supports three-phase systems with a maximum current of 63A and allows you to monitor energy consumption in real time via Wi-Fi using the Tuya app. It is compatible with Amazon Alexa and Google Assistant, and is also designed to be installed under a circuit breaker.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Smart energy sensor, 3P+N, 63A, Wi-Fi, Tuya
The smart energy sensor supports three-phase systems with a maximum current of 63A and can monitor real-time energy consumption via Wi-Fi using the Tuya app. It is compatible with Amazon Alexa and Google Assistant, and is designed to be installed under circuit breakers.
- Advanced energy monitoring for three-phase systems with real-time tracking of voltage, current, power and electricity consumption.
- Compatible with the Tuya smart home app for convenient monitoring and data analysis via Wi-Fi.
- Supports voice control with Amazon Alexa and Google Assistant, so it works hands-free.
- Flexible mounting options suitable for industrial, commercial or larger residential systems without taking up DIN rail space.
Features | |
|---|---|
| Product type | Smart energy sensor |
| Model | 3P+N, 63A, Wi-Fi, Tuya |
Specifications | |
| Maximum current | 63 A (3P+N) |
| Working voltage | 208~415V AC |
| Frequency | 50/60Hz |
| Rated insulation voltage | 400V |
| Energy measurement accuracy | 1%; Class 1 |
| Labor consumption | 0.7W |
| Rated impulse withstand voltage | 4 kV |
| Overload category | III |
| Connection type | Wi-Fi (2.4 GHz), BK7231 SoC |
| App compatibility | Tuya Smart / Smart Life (Android, iOS) |
| Voice control | Amazon Alexa Google Assistant |
| Reset button | Yes |
| Indicator light | Yes |
| Installation | Distribution |
| Protection class | IP20 |
| Working temperature | -25°C~+60°C |
| Diameter of the measured cavity | 9.8mm |
| Dimensions | 46.8 x 52.8 x 21.3 mm |
| Height | 60mm |
| Length | 150mm |
| Weight | 250 g |
| Width | 100mm |
