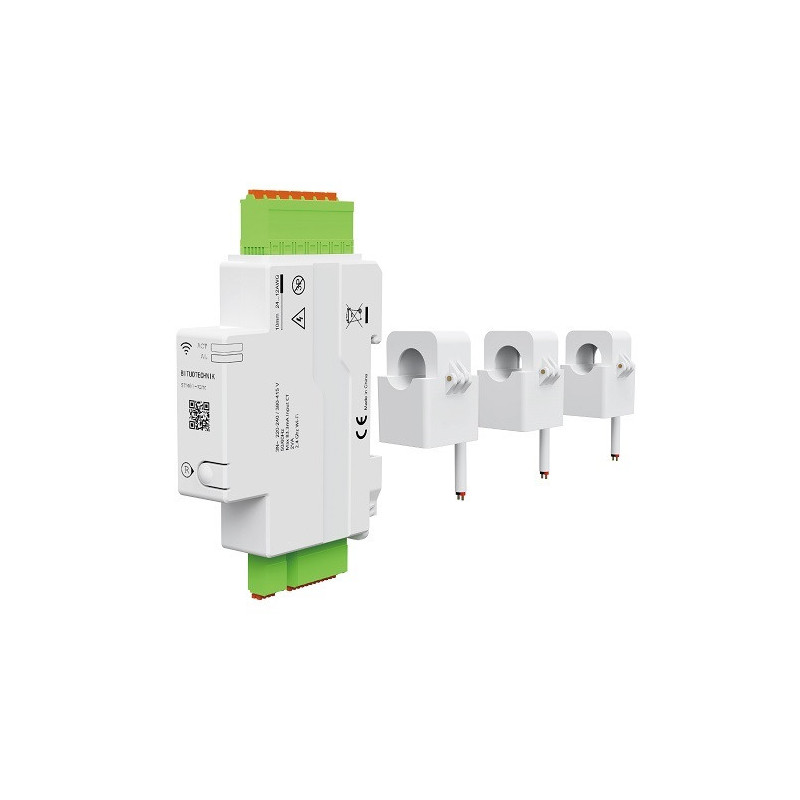

Energy Monitoring Device - Tuya 3P+N 120A Wi-Fi DIN
Product reference:
14-9990001083809
The smart energy monitor records energy consumption in three-phase systems with a maximum current of 120A. It connects via 2.4 GHz Wi-Fi and is compatible with the Tuya app, allowing real-time data monitoring and voice control via Amazon Alexa and Google Assistant.
Energy Monitoring Device - Tuya 3P+N 120A Wi-Fi DIN
Product reference:
14-9990001083809
The smart energy monitor records energy consumption in three-phase systems with a maximum current of 120A. It connects via 2.4 GHz Wi-Fi and is compatible with the Tuya app, allowing real-time data monitoring and voice control via Amazon Alexa and Google Assistant.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Smart Energy Monitor 3P+N, 120A, DIN, Tuya, Wi-Fi
The Smart energy monitor tracks energy consumption in three-phase systems with maximum amperage 120A. It connects via 2.4GHz Wi-Fi and is compatible with the Tuya app, allowing real-time monitoring and voice control via Amazon Alexa and Google Assistant.
- Advanced energy monitoring that allows you to track voltage, current, power and electricity consumption in real time.
- Supports up to 120A current measurement, suitable for both home and commercial use.
- Easy installation with split current transformers allowing for quick installation without power interruption.
- Compatible with the Tuya app for remote monitoring and voice control via Amazon Alexa and Google Assistant.
Features | |
|---|---|
| Product type | Smart energy monitor |
| Model | Smart energy monitor 3P+N, 120A, DIN, Tuya, Wi-Fi |
Specifications | |
| Maximum current | 120 A |
| Working voltage | 220~240V AC (phase-neutral) / 380~415V AC (phase-phase) |
| Frequency | 50/60Hz |
| Insulation voltage | 440V |
| Energy measurement accuracy | 1%; Class 1 |
| Maximum consumption | lt;2VA |
| Rated impulse withstand voltage | 4 kV |
| Overload category | III |
| Connector type | Wi-Fi (2.4 GHz) |
| Program compatibility | Tuya Smart / Smart Life (Android, iOS) |
| Voice control | Amazon Alexa Google Assistant |
| Reset button | Yes |
| Installation | DIN rail |
| Protection class | IP20 |
| Working temperature | -25°C~+70°C |
| Height | 150mm |
| Length | 200mm |
| Weight | 450 g |
| Width | 120mm |
