Energy Meter VM-3P75CT
Product reference:
39-8719076059462
Energy meters are used in Energy Storage Systems, where they monitor the power and consumption of the entire installation. They are placed in the distribution box to minimize energy transfer to the grid. They can also be used to measure the power generated by a photovoltaic inverter or AC loads, with the data presented on the screens of GX devices such as the Cerbo GX or Ekrano GX, and in the VRM Portal.
Energy Meter VM-3P75CT
Product reference:
39-8719076059462
Energy meters are used in Energy Storage Systems, where they monitor the power and consumption of the entire installation. They are placed in the distribution box to minimize energy transfer to the grid. They can also be used to measure the power generated by a photovoltaic inverter or AC loads, with the data presented on the screens of GX devices such as the Cerbo GX or Ekrano GX, and in the VRM Portal.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
5 - 8
business days
Energy Meter VM-3P75CTTechnical specifications
Current inputs:
Communication:
Power supply:
Case:
Environment:
Standards:

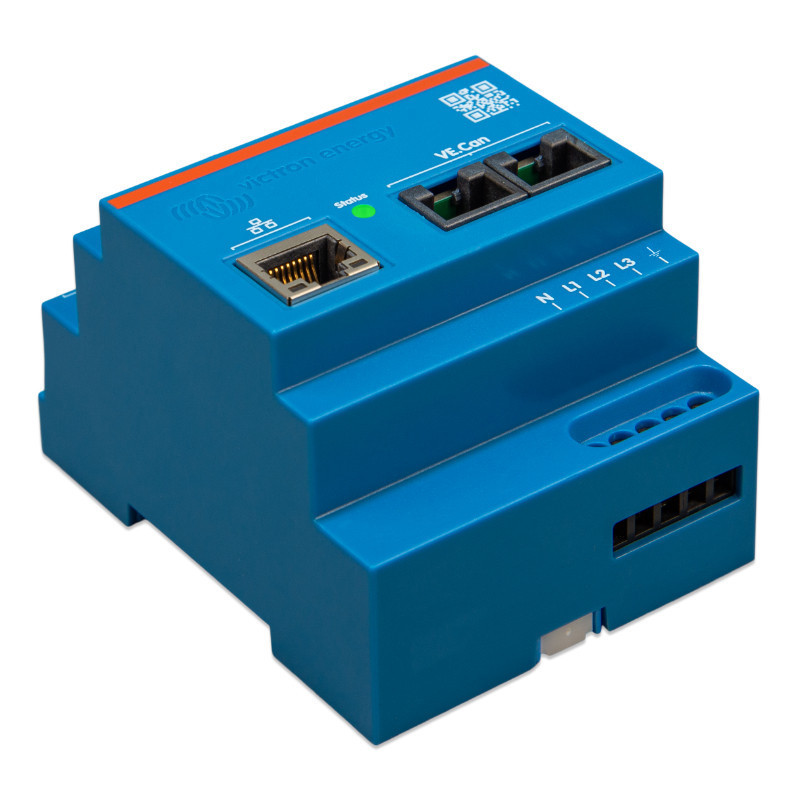

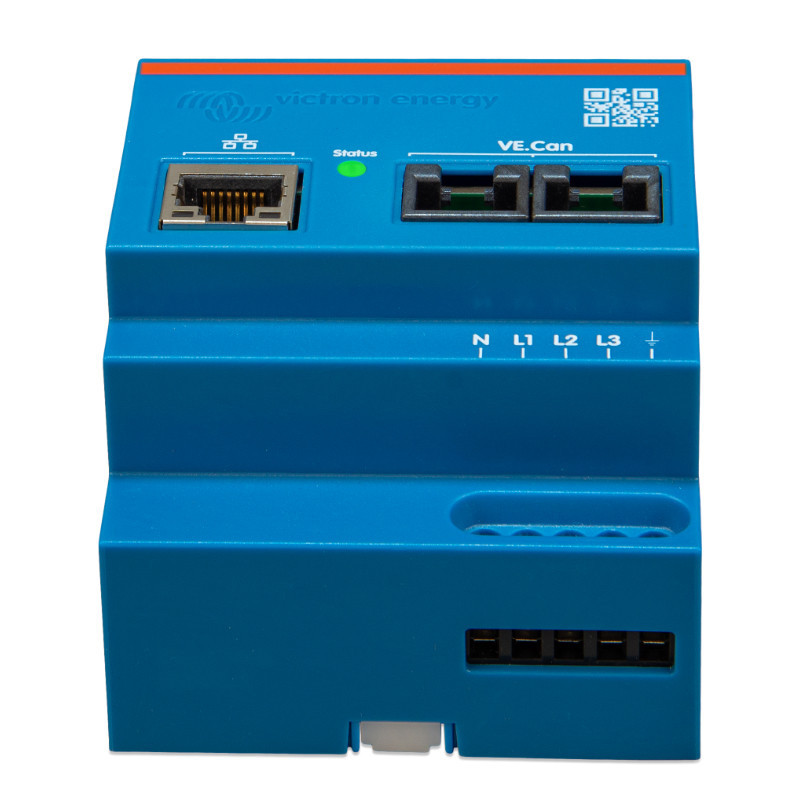

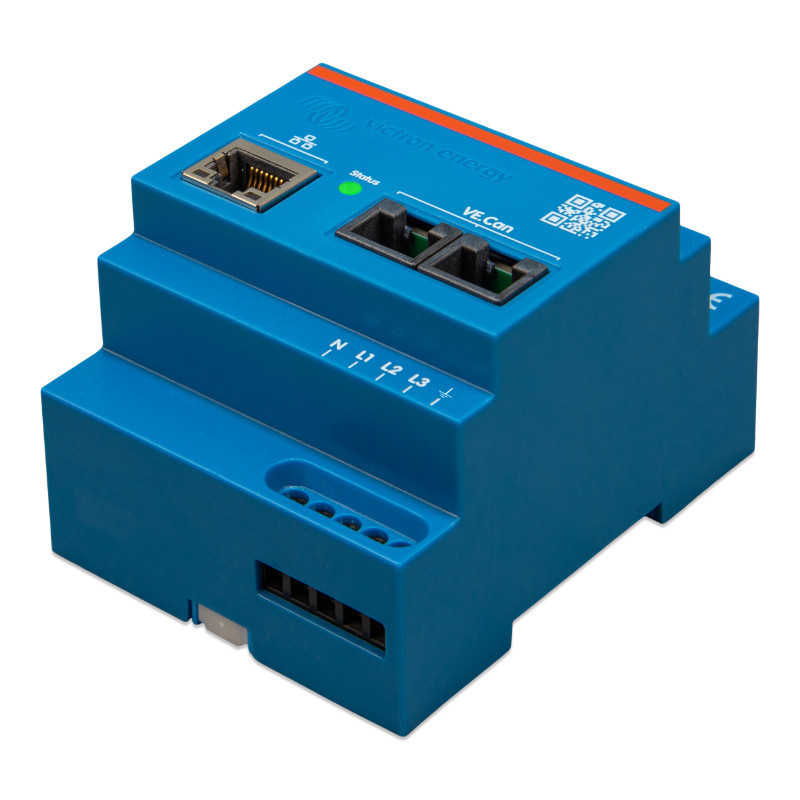

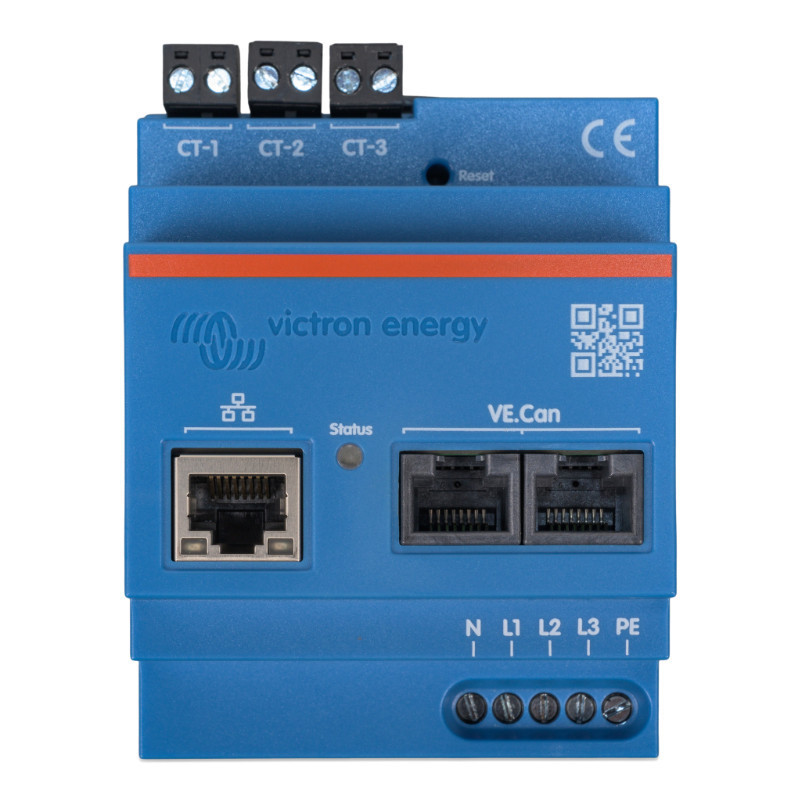

Victron VM-3P75CT energy meter
This innovative device is designed to precisely monitor energy consumption and generation in single- and three-phase installations. Its applications include both energy storage systems and photovoltaic installations, where it is an excellent tool for measuring power and efficiency. VM-3P75CT It is designed for installation in distribution boxes, minimizing excess energy sent to the grid. Data transfer via VE.Can or Ethernet allows users to access detailed power information on individual phases, which is crucial for effective energy management.
This device not only monitors energy consumption but also enables precise measurement of power generated by photovoltaic inverters, generators, and AC loads. Data from the VM-3P75CT counter are presented on advanced screens such as Cerbo GX or Ekrano GX and can also be monitored remotely via the portal VRM, making it an ideal choice for modern energy management systems.
Technical specifications
- Model: VM-3P75CT
- Voltage connection: Direct
- LN input voltage range: 85 to 265VAC
- LL input voltage range: 150 to 460VAC
- Frequency: 50/60Hz
Current inputs:
- Power connection: Via current transformers (included, cable length 640 mm)
- Rated current: 75A
Communication:
- VE.Can communication port: Two RJ45 connectors (VE.Can terminators included)
- Ethernet communication port: One RJ45 connector, Modbus UDP protocol
- Refresh rate: 100ms
Power supply:
- Type: Self-powered via L1-N
- Wear: 1.45W / 3.1VA
- Frequency: 50/60Hz
Case:
- Material and color: Polycarbonate, blue (RAL 5012)
- Voltage connection: Screw terminals 0.25 - 1.5 mm² (24 - 16 AWG)
- Connecting the current transformer: Screw terminals for plug (included)
- Protection category: IP20
- Libra: 370g
- Dimensions (H x W x D): 90 x 71 x 59mm
Environment:
- Indoor/outdoor use: Only inside
- Operating temperature: From -25 to +55 °C
- Storage temperature: From -25 to +70 °C
- Relative humidity: < 90% non-condensing
- Height: 2000m
- Mains voltage fluctuations: ±0.1Vin
- Overvoltage category: Cat. II
- Degree of contamination: 2
Standards:
- Security: EN-IEC 61010-1
Victron VM-3P75CT energy meter
This versatile device is ideal for energy management systems. With precise power measurements and advanced communication features, it's a key element for effective installation monitoring. Its robust design and advanced features ensure long-lasting and reliable operation, making it an excellent choice for demanding users.
