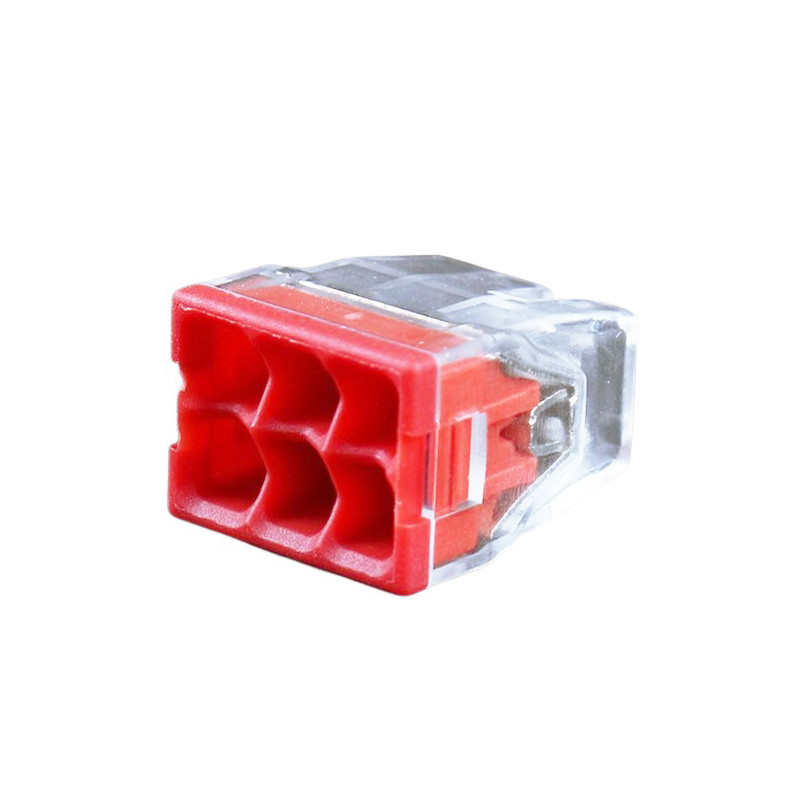

Electrical Connector - Connection Connector 6x 0.5-2.5mm² 24A 450V 100pcs
Product reference:
14-9990000240432
The connection connector has six connection points for wires with a cross section of 0.5 to 2.5 mm², with a nominal current of 24A and a voltage of 450V. The transparent housing allows easy inspection of the connections, and the set contains 100 pieces.
Electrical Connector - Connection Connector 6x 0.5-2.5mm² 24A 450V 100pcs
Product reference:
14-9990000240432
The connection connector has six connection points for wires with a cross section of 0.5 to 2.5 mm², with a nominal current of 24A and a voltage of 450V. The transparent housing allows easy inspection of the connections, and the set contains 100 pieces.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Not available
Connection Connector, 6X 0.5-2.5Mm², 24A, 450V, 100Vnt
The connection connector has six connection points for wires with a cross section of 0.5-2.5mm², with a rated current of 24A and a voltage of 450V. The transparent housing allows easy inspection of the connections, and the set contains 100 pieces.
- Quick and safe connections for all types of wires: solid, thin, single or multi-core.
- Compact design for effective space saving in junction boxes.
- The transparent housing allows for easy visual inspection of the connections.
- The set contains 100 pieces, suitable for various electrical applications.
Features | |
|---|---|
| Product Type | Connection Connector |
| Number of Connection Points | 6 |
| Wire Cross-Section Width | 0.5-2.5mm² |
| Rated Current | 24A |
| Nominal Voltage | 450V |
| Nominal Pulse Voltage (II/2) | 4kV |
| Insulating Material | Polycarbonate (PC) |
| Operating Temperature | -25°C to +85°C |
| Dimensions | 14 x 16 x 10.5 mm |
| Weight | 194g (for 100 pcs) |
| Color | Transparent; Red |
| The set consists of | 100 pcs |
| Height | 50mm |
| Length | 200mm |
| Weight | 250 g |
| Width | 100mm |
