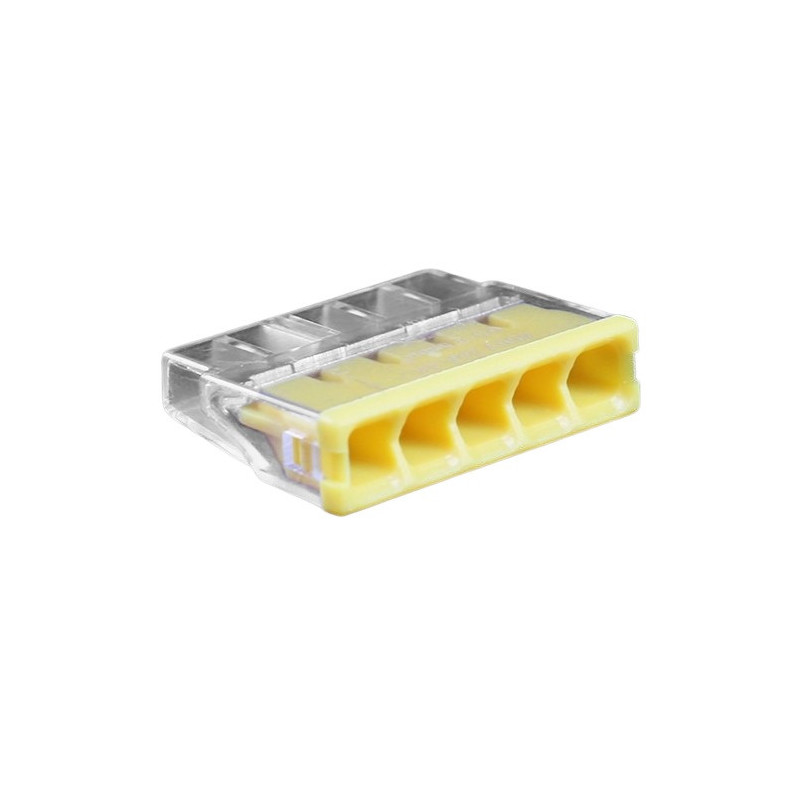

Wire Connector - HiSmart 5 Hole Connector, 0.5-2.5 mm², 100 Pcs., Transparent Yellow
Product reference:
14-9990000240425
The connection connector has five connection points for wires with a cross section of 0.5 to 2.5 mm², with a nominal voltage of 450V and a current of 24A. The transparent housing allows easy inspection of the connections, and the set contains 100 pieces.
Wire Connector - HiSmart 5 Hole Connector, 0.5-2.5 mm², 100 Pcs., Transparent Yellow
Product reference:
14-9990000240425
The connection connector has five connection points for wires with a cross section of 0.5 to 2.5 mm², with a nominal voltage of 450V and a current of 24A. The transparent housing allows easy inspection of the connections, and the set contains 100 pieces.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Not available
Welding joint, 5X 0.5-2.5Mm², 24A, 450V, 100Vnt
The welding connector has five connection points for wires with a cross section of 0.5-2.5mm², with a nominal voltage of 450V and a current of 24A. The transparent housing material allows easy inspection of the connections, and the set contains 100 pcs.
- Quick and safe connections for all types of wires: solid, thin, single or multiple.
- Compact design saves space in junction boxes.
- The transparent housing allows for easy visual inspection of the connections.
- The set contains 100 pieces for wide use in various fields.
Features | |
|---|---|
| Product type | Welding joint |
| Connection points | 5 |
Specifications | |
| Rated voltage | 450V |
| Rated current | 24A |
| Rated impulse voltage (II/2) | 4kV |
| Wire cross-sectional area | 0.5-2.5mm² |
| Insulating material | Polycarbonate (PC) |
| Working temperature | -25°C to +85°C |
| Dimensions | 22 x 16 x 5.5 mm |
| Weight | 174g (for 100 pcs) |
| Color | Transparent; Yellow |
| The set includes: | 100 pcs |
| Height | 30 mm |
| Length | 150mm |
| Weight | 220 g |
| Width | 100mm |
