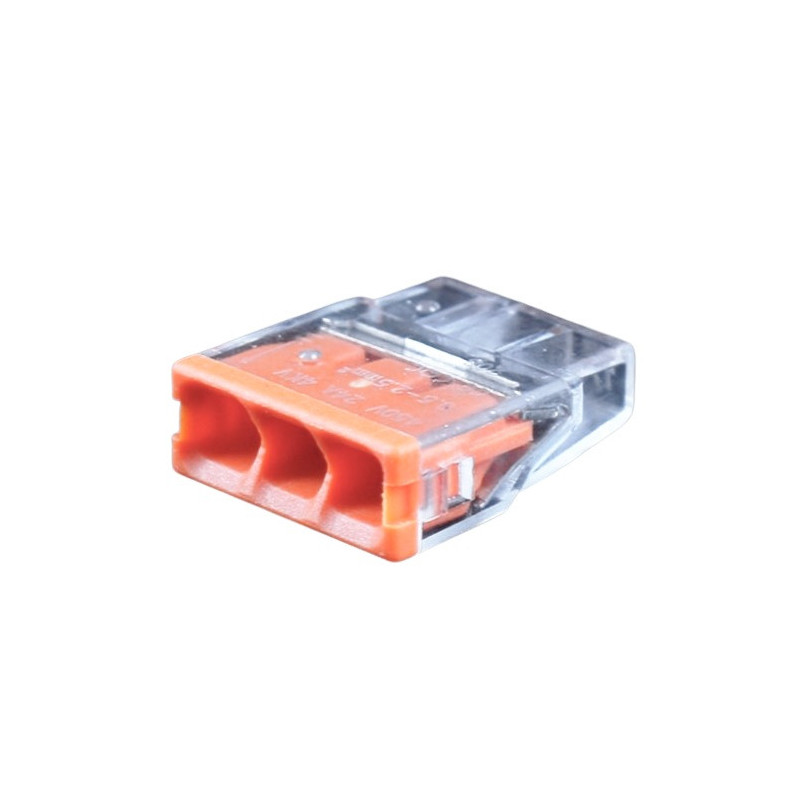

Electrical Connector - Connection Connector 3x 0.5-2.5mm² 24A 450V 100pcs
Product reference:
14-9990000240401
The connection switch has three connection points for wires with a cross-section ranging from 0.5 to 2.5 mm², with a nominal current of 24A and a voltage of 450V. The transparent housing material allows for visual inspection of the connections, and the set contains 100 pieces.
Electrical Connector - Connection Connector 3x 0.5-2.5mm² 24A 450V 100pcs
Product reference:
14-9990000240401
The connection switch has three connection points for wires with a cross-section ranging from 0.5 to 2.5 mm², with a nominal current of 24A and a voltage of 450V. The transparent housing material allows for visual inspection of the connections, and the set contains 100 pieces.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Not available
Welding joint, 3X 0.5-2.5Mm², 24A, 450V, 100Vnt
The welding connector has three connection points for wires with a cross-section ranging from 0.5-2.5mm², with a nominal current of 24A and a voltage of 450V. The transparent housing allows for visual inspection of the connections, and the set consists of 100 pieces.
- Quick and safe connections for all types of wires: solid, thin, single or multi-core.
- Compact design for efficient use of space in junction boxes.
- Transparent housing for easy visual inspection of connections.
- The set consists of 100 pieces, suitable for wide use in various fields.
Features | |
|---|---|
| Product type | Welding joint |
| Connection points | 3 |
| Wire cross-sectional area | 0.5-2.5mm² |
Specifications | |
| Rated voltage | 450V |
| Rated current | 24A |
| Nominal impulse voltage (II/2) | 4kV |
| Insulating material | Polycarbonate (PC) |
| Working temperature | -25°C to +85°C |
| Dimensions | 13.5 x 16 x 5.5 mm |
| Weight | 109g (for 100 pcs) |
| Color | Transparent; Orange |
| The set includes: | 100 pcs |
| Height | 30 mm |
| Length | 150mm |
| Weight | 145 g |
| Width | 20 mm |
