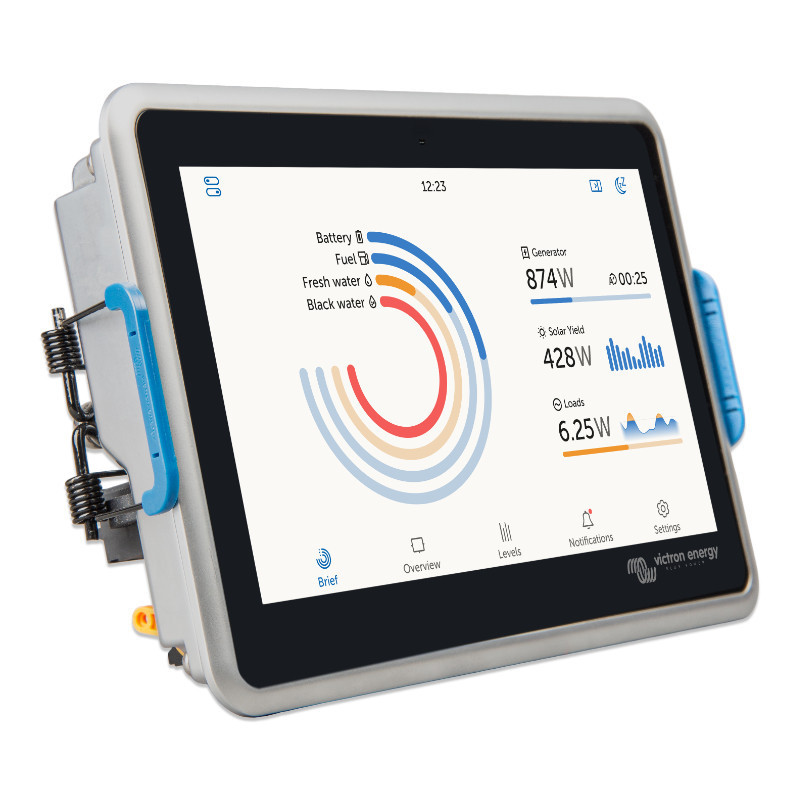

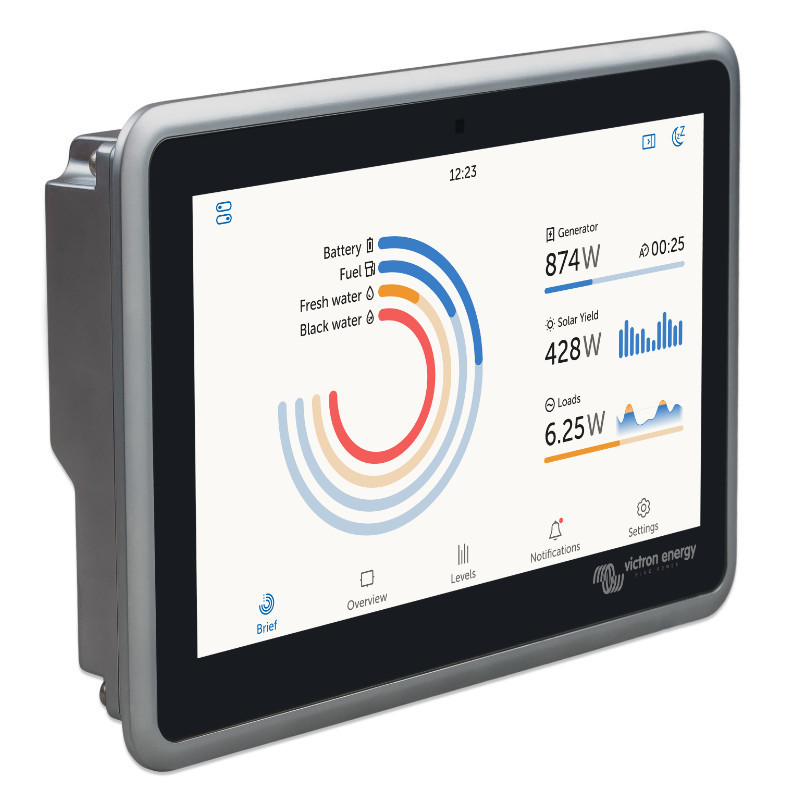

Ekrano GX

brands Victron Energy is an advanced monitoring device that takes energy system management to a new level. This innovative GX series product features an integrated, 7-inch touch screen, offering users the ability to centrally monitor and manage the system from anywhere in the world. Its features allow not only for performance overviews but also for remote control via the portal. Victron Remote Management (VRM), allowing the user to have full insight into the system's operation from any corner of the globe. Regardless of where you are, Ekrano GX ensures uninterrupted operation of the system, maximizing its efficiency through easy integration with other Victron Energy devices.
One of the key aspects of this device is its wide range of connections, including VE.Direct, VE.Bus and VE.Can, which allow for complete flexibility in connecting and managing various components of the energy system. This versatility allows users to fully integrate the entire system, enabling effective monitoring and management of not only the energy system but also additional components such as generators and solar panels. Ekrano GX It is also distinguished by its simplicity of use - all key system parameters are available via a single screen, and the built-in touch function can be turned on and off to prevent unauthorized use.

Remote Management at the Highest Level

One of the most important advantages Ekrano GX is its remote management capability. Thanks to the ability to connect to the internet via a network cable or Wi-Fi, users can access a remote VRM console, providing full control of the energy system regardless of location. Remote management via the internet is not only convenient but also allows for quick diagnostics and troubleshooting without the need for physical access to the device. This allows Ekrano GX It's becoming an indispensable tool for monitoring and controlling advanced energy systems, especially in locations where direct access to equipment is limited.
The VRM remote console allows you to monitor battery charge status, energy consumption, and control power from generators or solar panels. Users can also track temperature, tank charge levels, and other system parameters, providing a complete picture of system operation in real time. All this is accessible from a computer, tablet, or smartphone, making system management easier than ever.

Technical Specifications

• Supply voltage: 8 - 70 V DC


• Power consumption with display on (100% brightness):



  • 6.2W at 12V


  • 6.6 W at 24 V


  • 7.4 W at 48 V






• Power consumption with display off:



  • 0.6 W at 12 V


  • 3.0 W at 24 V


  • 3.7 W at 48 V






• NO/NC relays:



  • DC to 30 VDC: 3 A


  • AC: 1A, 125VAC





Communication ports

• VE.Direct Ports (Isolated): 3 (maximum 25 VE.Direct devices)


• VE.Bus (isolated): 1 bus with 2 parallel RJ45 sockets


• VE.Can:



  • 1 - isolated


  • 2 - isolated






• Ethernet: Yes


• WiFi: Yes


• Bluetooth Smart: Yes


• USB host ports: 2 x USB-A (max. 1.5A at 5V total)


• microSD card slot: Yes, SDHC cards up to 32 GB

Inputs / Outputs

• Resistive tank level inputs: 3


• Temperature sensor inputs: 2


• Digital inputs: 2

Display

• Display resolution: 1024 x 600 pixels


• Maximum backlight brightness: 1000 cd/m²


• Backlight dimming: Yes, dynamic via ambient light sensor or manually via remote console with timer


• Touch-sensitive on/off button: Yes, recessed button on the back (prevents unauthorized use)

Other

• Mounting panel: 1024 x 600 pixels


• Buzzer: Yes


• Protection category:

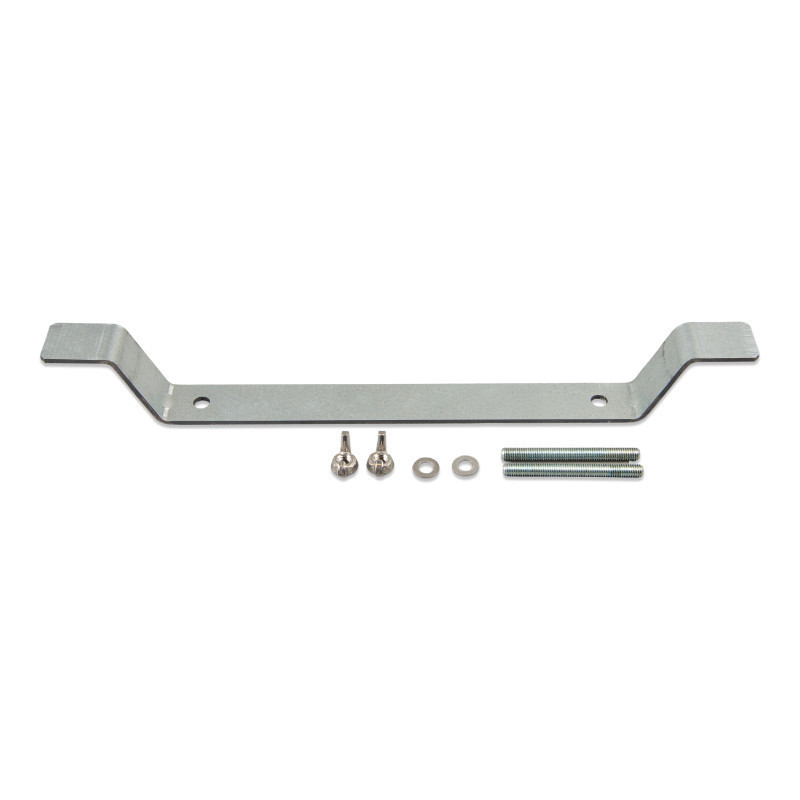

  • Front: IP54 (when mounted with steel bracket)

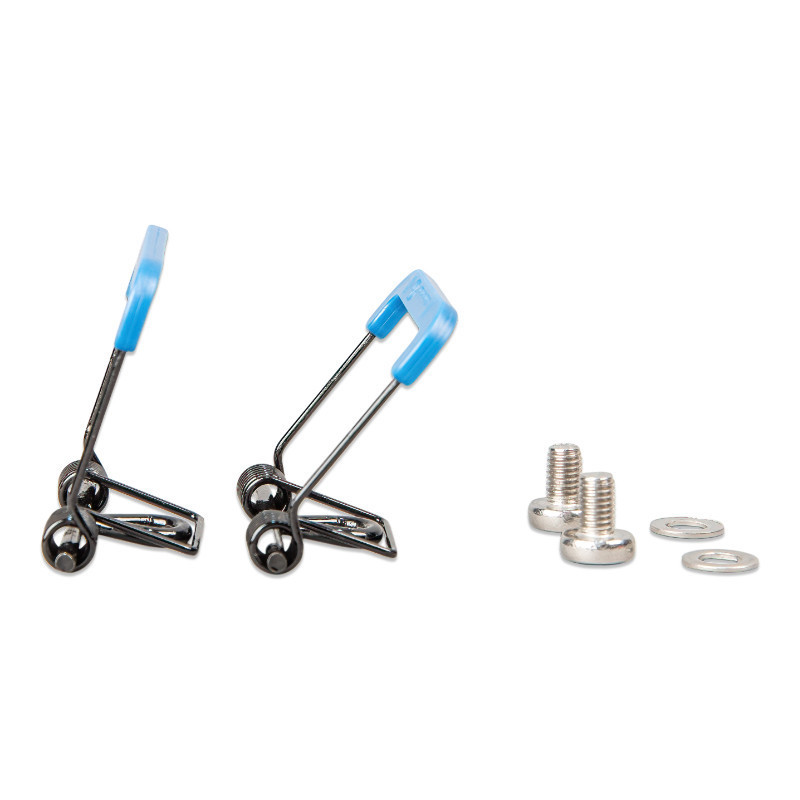

  • IP31 (when mounted with springs)


  • Back: IP21





Standards

• Security: IEC 62368-1


• EMC: EN 301489-1, EN 301489-17


• Automotive: ECE R10-6

This revolutionary device combines advanced monitoring features with ease of use. Its remote management and wide range of connections make it an ideal solution for demanding energy systems. Thanks to full portal integration, Victron VRM, users can monitor and manage their system from anywhere, ensuring reliability and maximum performance. No matter where you are, Ekrano GX gives you full control over your energy system, making it an indispensable tool in every installation.
