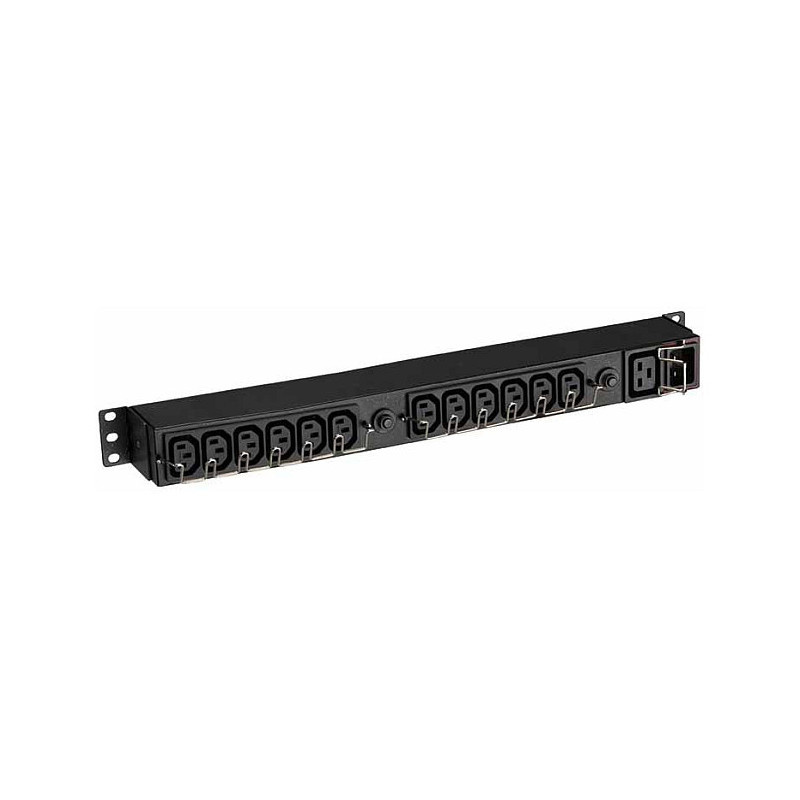

Eaton EFLX12I power distribution unit (PDU)

Eaton EFLX12I. PDU types: Basic, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 13 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Nominal input voltage: 230 V, Maximum current: 13 A, AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS, Certification: CE. Width: 439 mm, Depth: 58.5 mm, Height: 43.4 mm

These basic rack PDUs are versatile, flexible power strips intended to provide more connection options when using rackmount UPSs. The FlexPDU series is compatible with any UPS below 3 kVA and is the perfect power distribution option for the Evolution, EX and M series while the high voltage PDUs are compatible with the EX RT UPS series. These PDUs offer multiple mounting options for rack enclosures, wall mounting or connection at the rear of the UPS.

Design

PDU types: Basic
Type: Single-phase
Form factor: Rackmount
Feature: Rack mounting
Rack capacity: 1U
Mounting: Horizontal/Vertical
Product colour: Black
Cable colour: Black

Ports & interfaces

AC outlets quantity: 13 AC outlet(s)
Power plug: C20 coupler
AC outlet types: C13 coupler
Output connections: 12 x C13 & 1 x C19

Power

Nominal input voltage: 230 V
AC input frequency: 50 - 60 Hz
Maximum current: 13 A
Nominal output voltage: 230 V
Load capacity: 3000 VA
Maximum input current per phase: 13 A
Maximum power: 3000 W

Certificates

Compliance certificates: RoHS
Certification: CE

Operational conditions

Operating temperature (T-T): 0 - 45 °C

Weight & dimensions

Width: 439 mm
Depth: 58.5 mm
Height: 43.4 mm
Weight: 1.7 kg
Size (imperial): 48.3 cm (19")

Packaging content

Feature: Rack mount kit

Packaging data

Package weight: 9.5 kg
Package width: 180 mm
Package depth: 448 mm
Package height: 58 mm
