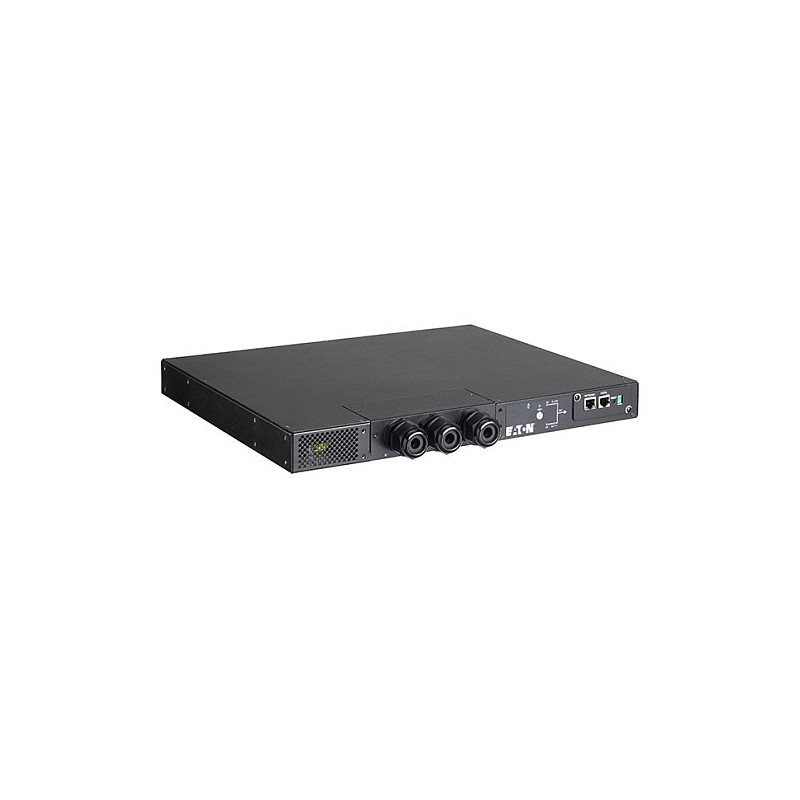

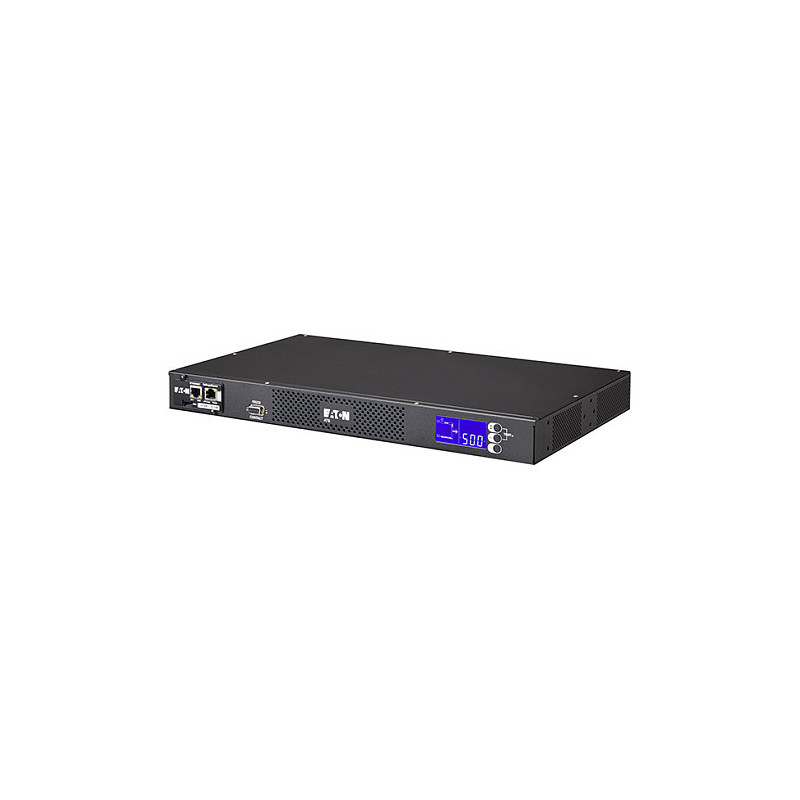

Eaton ATS16N uninterruptible power supply (UPS)

Eaton ATS16N. Input operation voltage (min): 208 V, Input operation voltage (max): 240 V, Input frequency: 50/60 Hz. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 1U. Certification: IEC/EN 62310-1, IEC/EN 60950-1, IEC/EN 62310-2, CE. Safety: IEC/EN 62310-1, IEC/EN 60950-1
The Eaton ATS offers an affordable solution for customers willing to add power redundancy to networking equipment like switches and routers. This automatic transfer switch will power them from 2 different sources. Should one power source fail, the alternate one will switch over with no interruption to the connected equipment. Eaton ATS can be connected to multiple devices at the same time while saving the cost of expensive redundant power supplies.
Features
- Provides power redundancy to IT equipment
- Alternative to expensive redundant power supplies available from networking equipment vendors
- Compact, 1U rack form factor
- Seamlessly switches from one power source to the other
- Network management on ATS 30 and ATS 16 Netpack versions

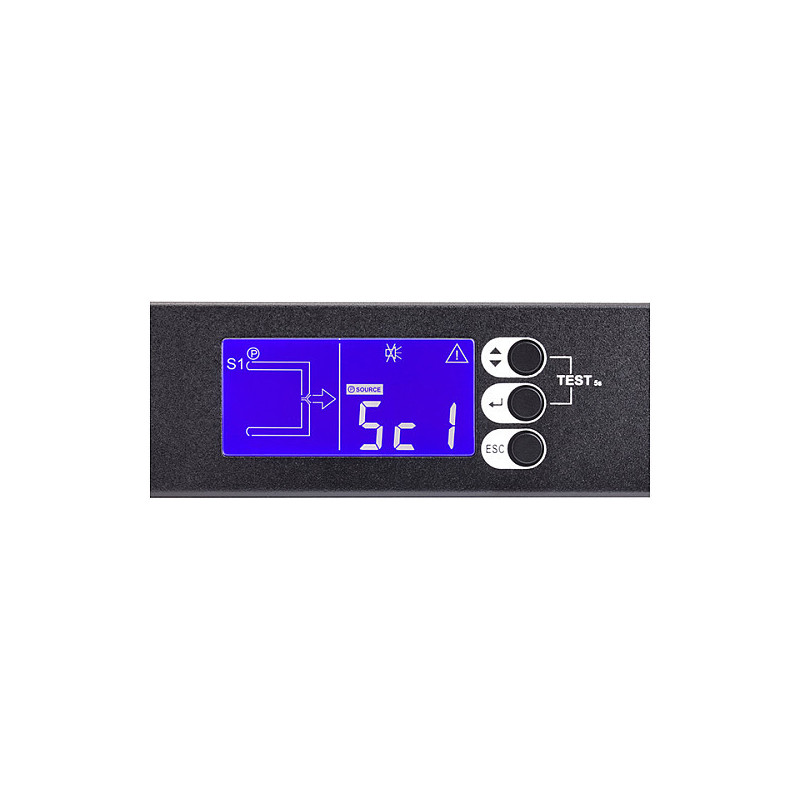

- LCD with metering and basic configuration capabilities

Features

Input operation voltage (min): 208 V
Input operation voltage (max): 240 V
Input frequency: 50/60 Hz
Output frequency: 50/60 Hz
Maximum current: 16 A
Response time: 8 ms
Number of input phases: 1
Number of output phases: 1
Web-based management: Yes

Ports interfaces

AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
AC outlets quantity: 9 AC outlet(s)
Number of output IEC jumpers: 8
Ethernet LAN (RJ-45) ports: 1

Design

Form factor: Rackmount
Rack capacity: 1U
Product colour: Black
Display type: LED
LED indicators: Yes

Certificates

Certification: IEC/EN 62310-1, IEC/EN 60950-1, IEC/EN 62310-2, CE

Packaging content

Rack mount kit: Yes

Safety regulation standards

Safety: IEC/EN 62310-1, IEC/EN 60950-1

Weight dimensions

Width: 440 mm
Depth: 250 mm
Height: 43 mm
Weight: 3.5 kg

Logistics data

Harmonized System (HS) code: 85078000

Other features

Number of phases: 1
Nominal input voltage: 230 V
Mounting: Horizontal
