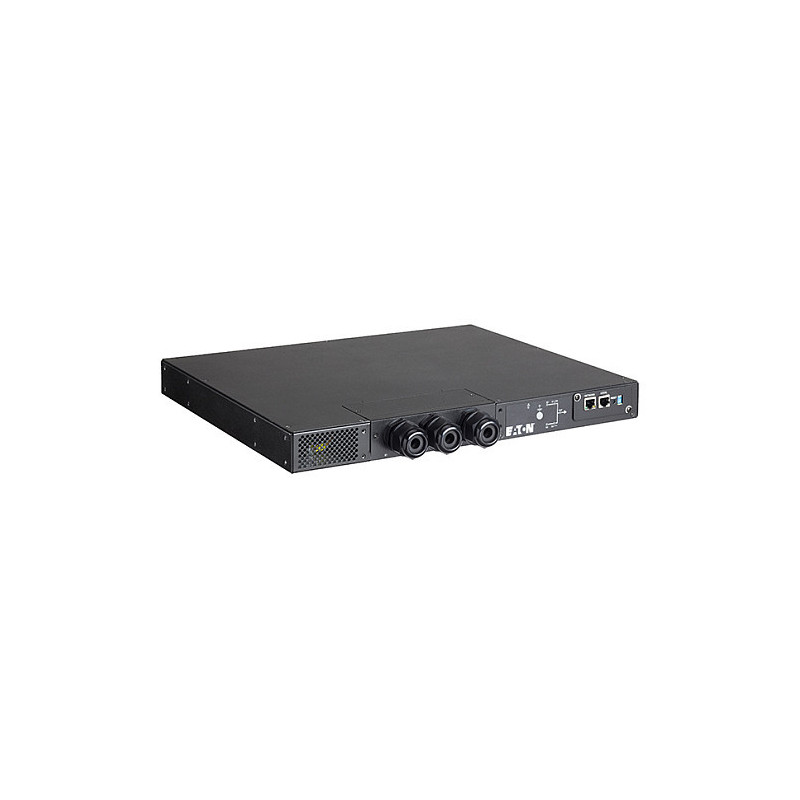

Eaton ATS16N power distribution unit (PDU)

Eaton ATS16N. Rack capacity: 1U, Form factor: Rackmount, Mounting: Horizontal. AC outlets quantity: 9 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler. Nominal input voltage: 230 V, Maximum current: 16 A. Certification: CE. Width: 440 mm, Depth: 250 mm, Height: 43 mm

The Eaton ATS offers an affordable solution for customers willing to add power redundancy to networking equipment like switches and routers. This automatic transfer switch will power them from 2 different sources. Should one power source fail, the alternate one will switch over with no interruption to the connected equipment. Eaton ATS can be connected to multiple devices at the same time while saving the cost of expensive redundant power supplies.

Features
- Provides power redundancy to IT equipment
- Alternative to expensive redundant power supplies available from networking equipment vendors
- Compact, 1U rack form factor
- Seamlessly switches from one power source to the other
- Network management on ATS 30 and ATS 16 Netpack versions

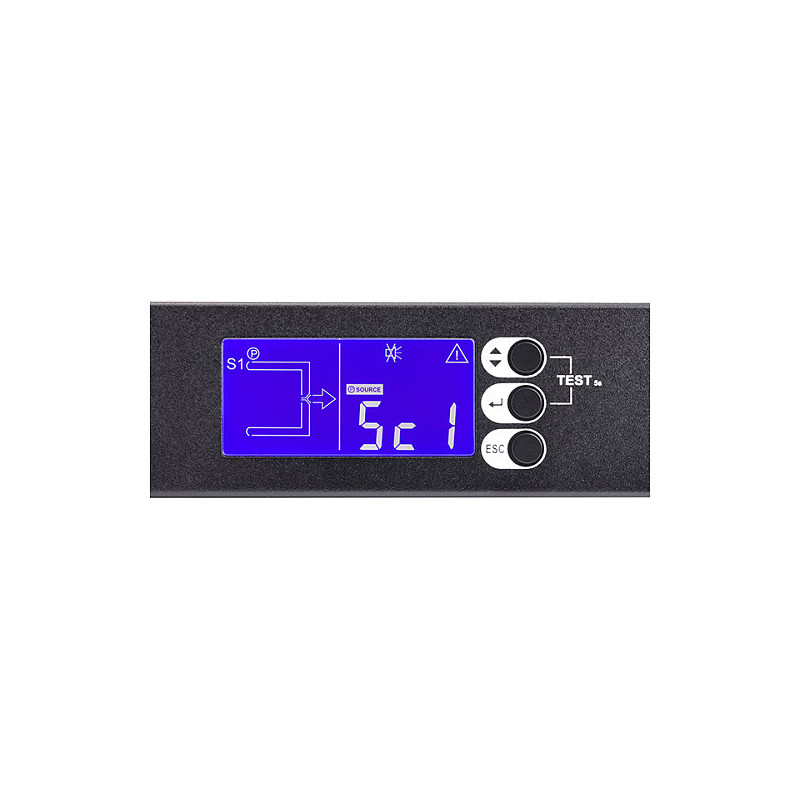

- LCD with metering and basic configuration capabilities

Design

Form factor: Rackmount
Rack capacity: 1U
Mounting: Horizontal
Product colour: Black

Ports & interfaces

AC outlets quantity: 9 AC outlet(s)
Power plug: C20 coupler
AC outlet types: C13 coupler, C19 coupler
Ethernet LAN (RJ-45) ports: 1

Features

LED indicators: Yes

Power

Nominal input voltage: 230 V
Maximum current: 16 A
Number of phases: 1

Certificates

Certification: CE

Weight & dimensions

Width: 440 mm
Depth: 250 mm
Height: 43 mm
Weight: 3.5 kg

Packaging content

Feature: Rack mount kit
