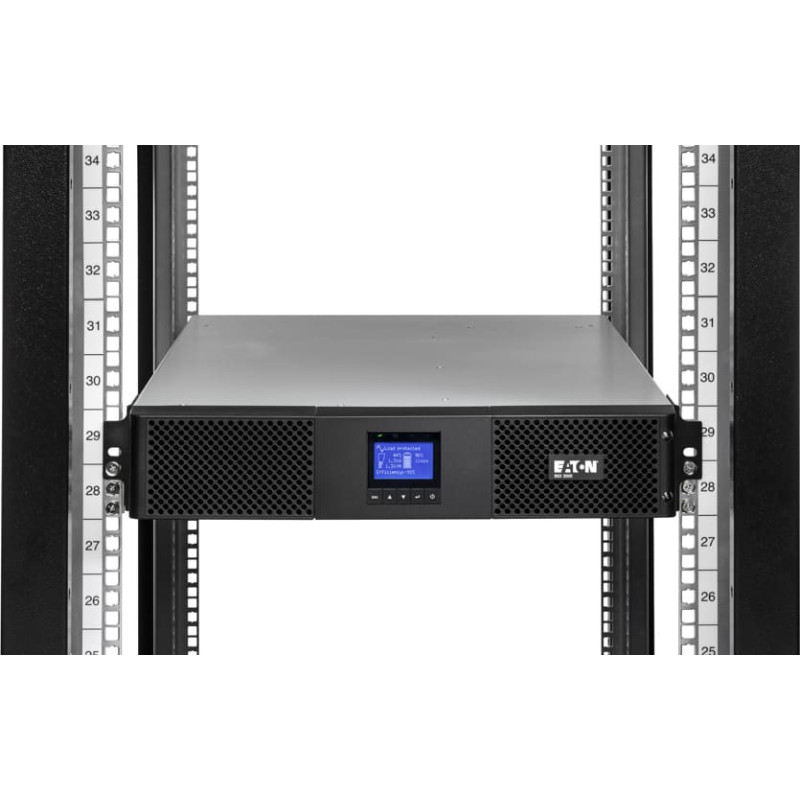

Eaton 9SX 1500i Rack2U (9SX1500IR)
Product reference: 3-0743172090966

Eaton 9SX 1500i Rack2U (9SX1500IR)

Eaton 9SX 1500i Rack2U (9SX1500IR)

Product reference: 3-0743172090966

Eaton 9SX 1500i Rack2U (9SX1500IR)

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
1 632,94
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 8
business days

Your message has been successfully sent!
Fill in the required fields*

UPS Eaton 9SX offers high availability, flexibility and advanced protection for infrastructure, industry, healthcare, IT, data networks, data storage and telecommunications. It is equipped with protection with online double conversion in universal Rack/Tower with efficiency up to 95%.
EXIT
Output power [W]: 1350
Output power [VA]: 1500
Topology: Online double conversion with PFC system (correction effect)

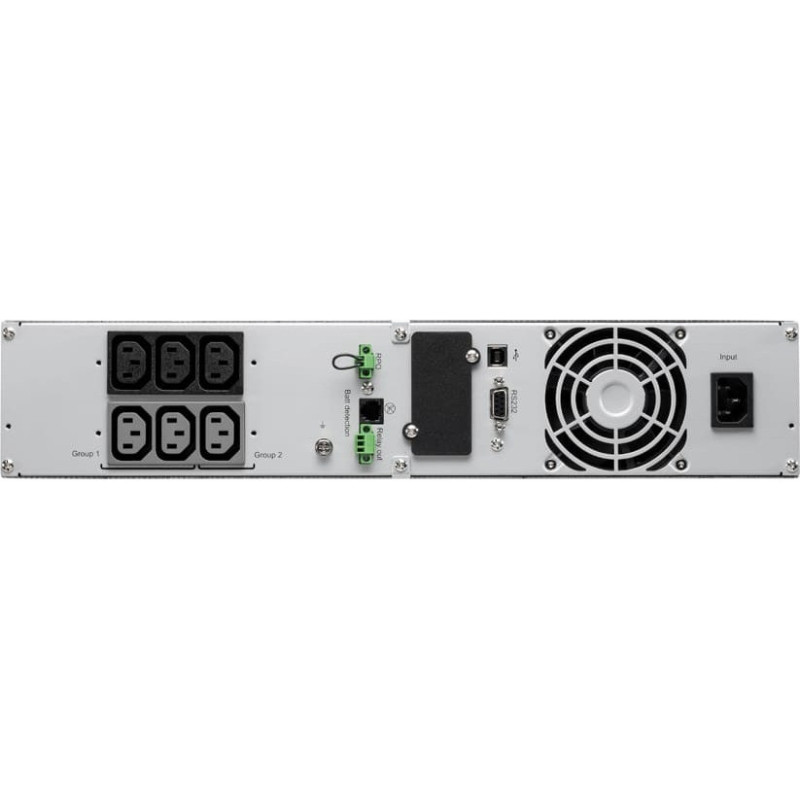

Output connectors: (6) IEC-320-C13
VSTUP
Input voltage [V]: 190-276
Input connection type: (1) IEC-320-C14
Input frequency [Hz]: 50/60
BATTERY AND OPERATING TIME
Battery management: ABM® a temperature-compensated charging method (user optional), automatic battery test, protection against deep discharge, automatic detection of battery modules
* Battery reserve at 100% load (min): 5.5
* Doba zadělny pri 50 % zatežení (min): 16
B COMMUNICATION AND ADMINISTRATIONB
Interface: 1 port USB + 1 serial port RS232 + 1 mini-terminal for slide switch + 1 mini-terminal for output relay
User interface: Viacjazyčný graphic LCD display
PHYSICAL PARAMETERS
Maximum height [cm]: 8.7
Maximum width [cm]: 43.8
Maximum depth [cm]: 43.8
Color: černá
Warranty: 2 roky
Link to the manufacturer's website: http://powerquality.eaton.com/9SX1500iR.aspx?cx=54

Model design
How to useServer
Location typeRack
TypologyOnline
Warranty2 years
Connection
Intelligent card slotYes
Connector RS-232 (sériový port)Yes
USB connectorYes
Port for communicationYes
Dimensions, weight, load capacity
Dimensions HxWxD (cm)8.7 x 44 x 44
Power and capacity
Hollow operation: 100% load (min)5.5
Hollow backup: 50% load (min)16
Output power (VA)750 - 3000
Output power (W)500 - 2700
Sockets
Počet opsutných zásuviek C136
