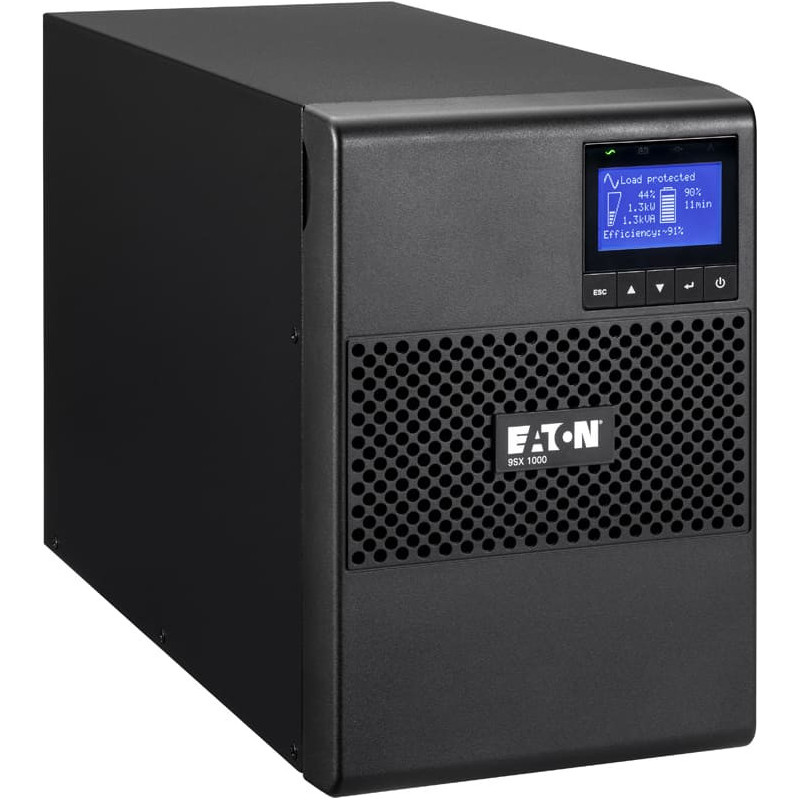

EATON 9SX 1000I .
Product reference:
3-0743172090928
EATON 9SX 1000I .
EATON 9SX 1000I .
Product reference:
3-0743172090928
EATON 9SX 1000I .
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days
UPS Eaton 9SX offers high availability, flexibility and advanced protection for infrastructure, industry, healthcare, IT, network solutions, storage and telecommunications. We offer online protection with dual conversion in practical transport topology.
EXIT
Output power [W]: 900
Output power [VA]: 1000
Topology: Online
Output connectors: (6) IEC-320-C13
VSTUP
Input voltage [V]: 190-276
Input connection type: (1) IEC-320-C14
Input frequency [Hz]: 50/60
BATTERY AND OPERATING TIME
Battery management: ABM® a temperature-compensated charging method (optional for the user), automatic battery test, protection against deep discharge, automatic recognition of external batteries. 16.5
B COMMUNICATION AND ADMINISTRATIONB
Interface: 1 port USB + 1 serial port RS232 + 1 mini-terminal for slide switch + 1 mini-terminal for output relay
User interface: Viacjazyčný graphic LCD display
PHYSICAL PARAMETERS
Maximum height [cm]: 25.2
Maximum width [cm]: 16
Maximum depth [cm]: 35.7
Color: černá
Warranty: 2 roky
Link to the manufacturer's website: http://powerquality.eaton.com/9SX1000i.aspx?cx=78
| Model design | |
|---|---|
| How to use | PC |
| Location type | Tower |
| Typology | Online |
| Warranty | 2 years |
| Connection | |
| Intelligent card slot | Yes |
| Connector RS-232 (sériový port) | Yes |
| USB connector | Yes |
| Port for communication | Yes |
| Dimensions, weight, load capacity | |
| Dimensions HxWxD (cm) | 25x16x36 |
| Power and capacity | |
| Hollow operation: 100% load (min) | 6 |
| Hollow backup: 50% load (min) | 16.5 |
| Output power (VA) | 750 - 3000 |
| Output power (W) | 500 - 2700 |
| Sockets | |
| Počet opsutných zásuviek C13 | 6 |
