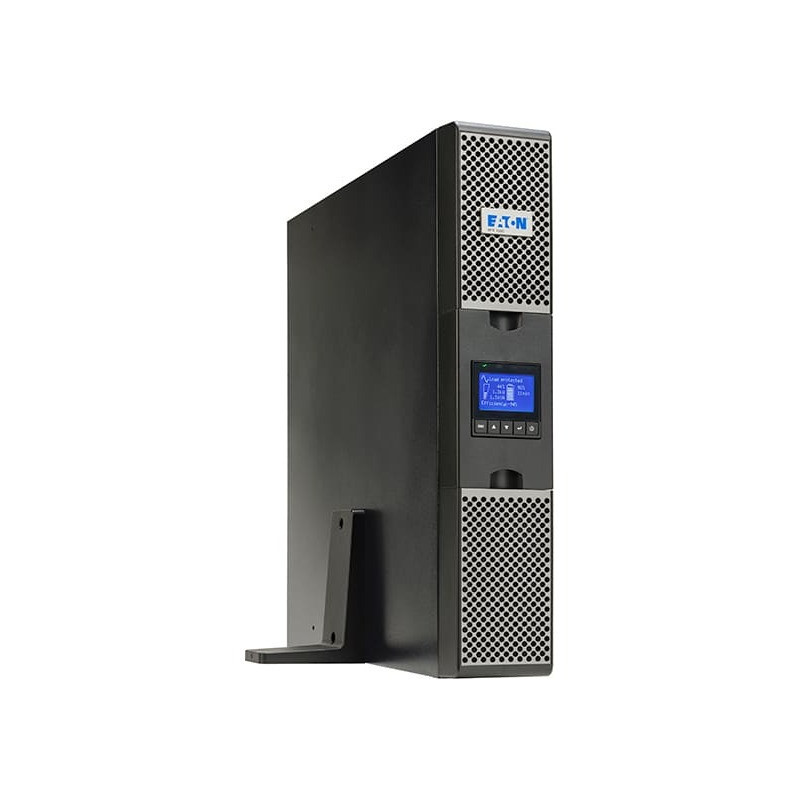

Eaton 9PX 1500i RT2U Netpack (9PX1500IRTN)
Product reference:
3-0743172081421
Eaton 9PX 1500i RT2U Netpack (9PX1500IRTN)
Eaton 9PX 1500i RT2U Netpack (9PX1500IRTN)
Product reference:
3-0743172081421
Eaton 9PX 1500i RT2U Netpack (9PX1500IRTN)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 19
business days
Reliable. Versatile. Powerful. Efficient. With double-conversion topology for constant power conditioning and up to 93 percent efficiency, the Eaton 9PX 700-3000 VA models support your overall goal of business continuity. It's built for scalable deployment, features a graphical LCD for local status updates and integrates with virtualized environments.
| Summary: | Eaton 9PX 1.5kVA. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1500 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 5 min, Typical backup time at half load: 14 min. Form factor: Rackmount/Tower, Product color: Black, Rack capacity: 2U. Certification: IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report... |
| Vendor Homepage: | https://powerquality.eaton.com/9PX1500IRTN.aspx?CX=51 |
| Category Code: | UPW |
| CnCode: | 85044095 |
| Unit Box Height: | 0.55 |
| Unit Box Length: | 0.58 |
| Unit Box Width: | 0.23 |
| Efficiency: | 92.5% |
| Input frequency: | 40/70Hz |
| Input operation voltage (max): | 276V |
| Input operation voltage (min): | 176V |
| Noise level: | 35dB |
| Number of input phases: | 1 |
| Output frequency: | 50/60Hz |
| Output operation voltage (max): | 240V |
| Output operation voltage (min): | 200V |
| Output power: | 1500W |
| Output power capacity: | 1.5kVA |
| Power factor: | 1 |
| Power protection features: | Battery discharge |
| UPS topology: | Double conversion (Online) |
| Waveform: | Pure sine |
| AC outlet types: | C13 coupler |
| AC outlets quantity: | 8AC outlet(s) |
| Power plug: | C14 coupler |
| RS-232 port: | 1 |
| Serial interface: | Yes |
| Serial interface type: | RS-232 |
| USB 2.0 ports quantity: | 1 |
| USB port: | Yes |
| Automatic battery test: | Yes |
| Battery technology: | Sealed Lead Acid (VRLA) |
| Hot-swap battery: | Yes |
| Typical backup time at full load: | 5min |
| Typical backup time at half load: | 14min |
| Display type: | LCD |
| Form factor: | Rackmount/Tower |
| LED indicators: | Yes |
| Product colour: | Black |
| Rack capacity: | 2U |
| Operating temperature (TT): | 0 - 40°C |
| Certification: | IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star |
| Management card included: | Yes |
| Rack mount kit: | Yes |
| Safety: | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Sustainability certificates: | ENERGY STAR |
| Depth: | 450mm |
| Height: | 86.5mm |
| Weight: | 18900g |
| Width: | 440mm |
| Bundled software: | Intelligent Power Software suite |
| Harmonized System (HS) code: | 85078000 |
| Nominal input voltage: | 230V |
| Nominal output voltage: | 230V |
| Units per Shipping Box: | 1 |
| Unit Calculated Volume: | 0.07337m³ |
| Unit Calculated Weight: | 23.4kg |
