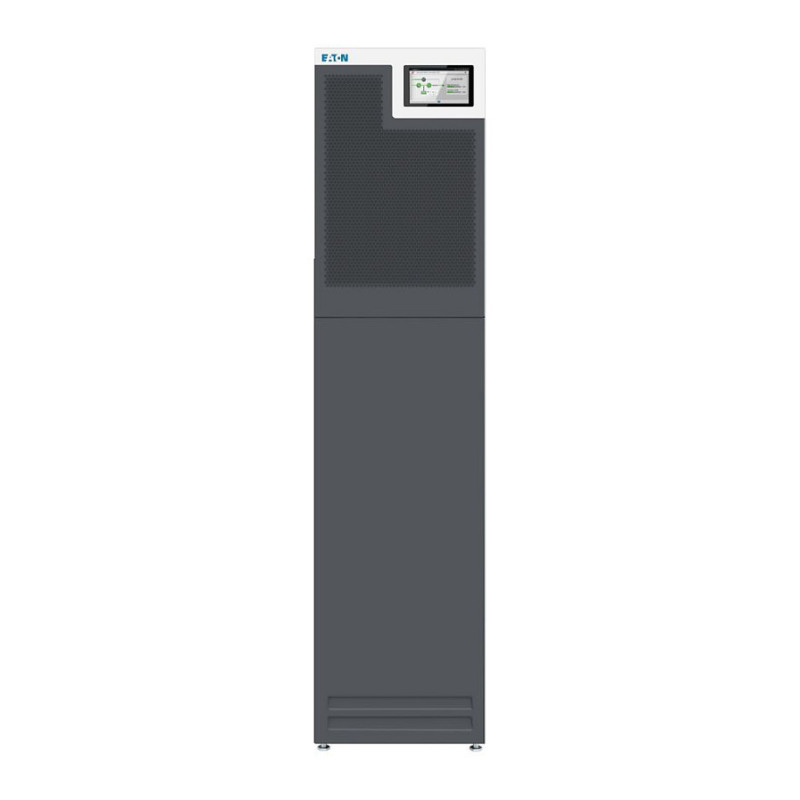

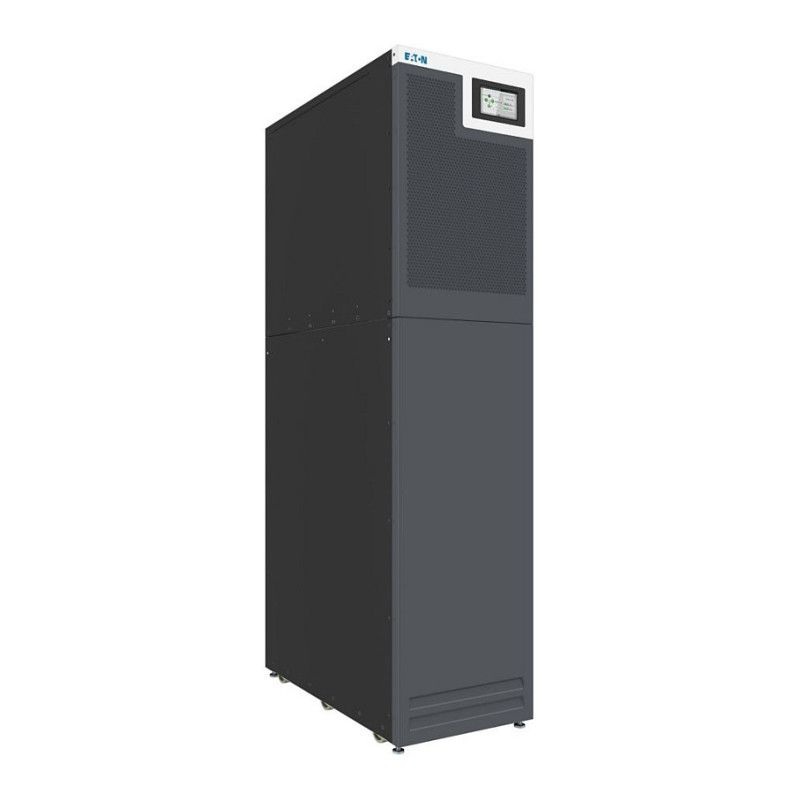

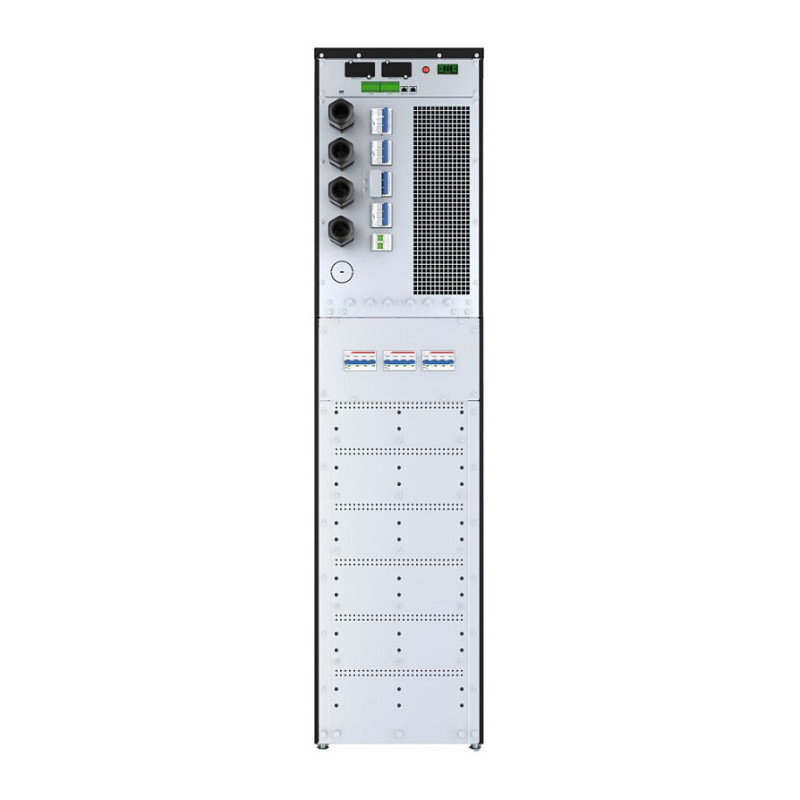

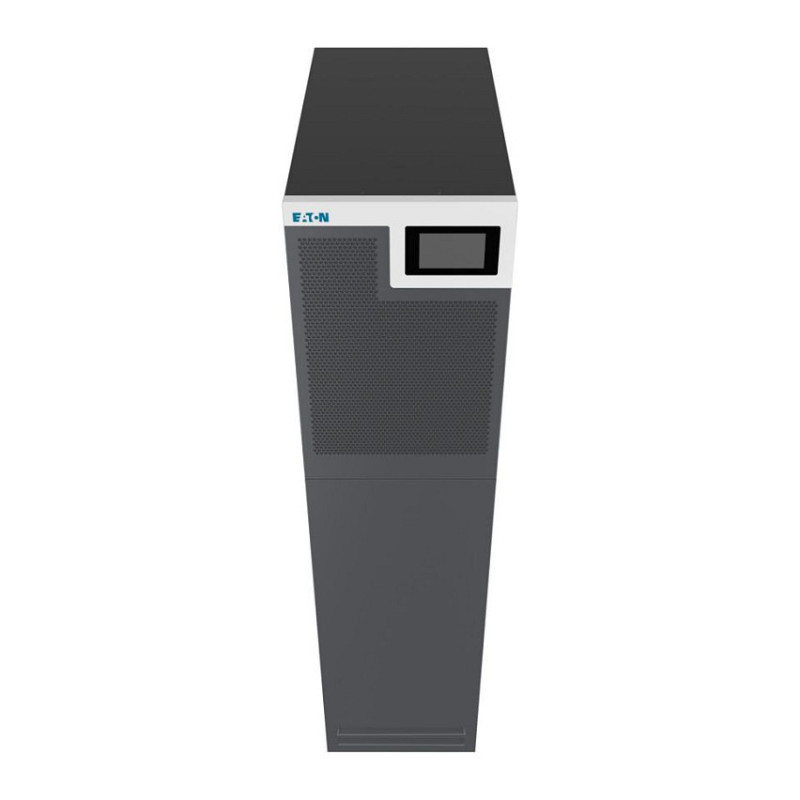

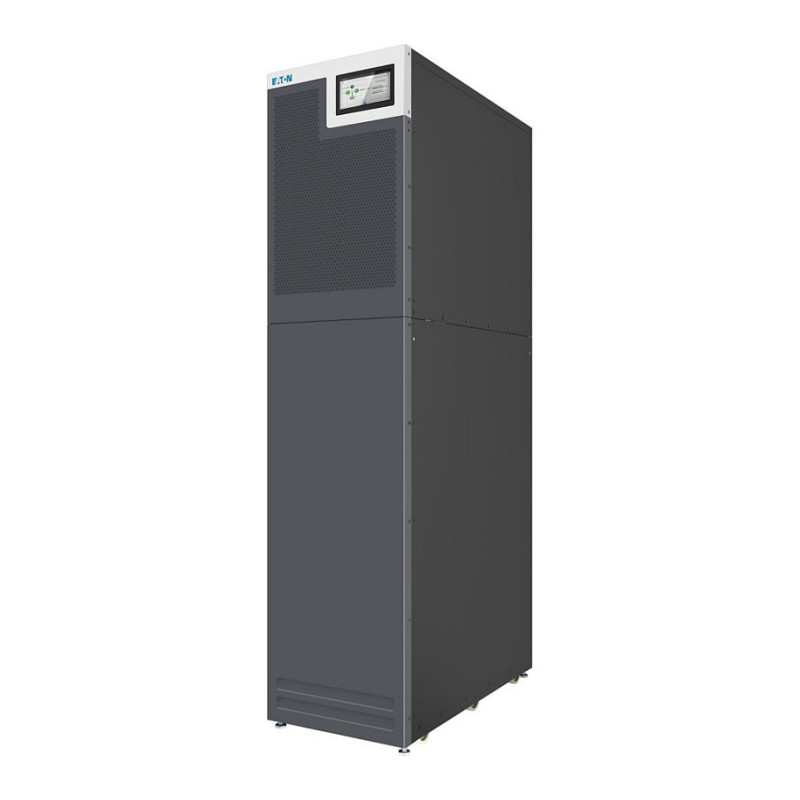

Eaton 93T15KMBSBI uninterruptible power supply (UPS)

Eaton 93T15KMBSBI. UPS topology: Double-conversion (Online), Output power capacity: 15 kVA, Output power: 15000 W. Battery capacity: 9 Ah, Number of batteries included: 1 pc(s), Typical backup time at half load: 19 min. Form factor: Tower, Product colour: Black, Control type: Touch. Compliance certificates: RoHS, CB, CE, Certification: IEC/EN 62040-2 IEC/EN 62040-1 EN 62040-3 Manufactured in a plant certified to ISO 9001 and ISO.... Width: 380 mm, Depth: 740 mm, Height: 1328 mm

The rapid adoption of the cloud, constant evolution of IT technologies, increased focus on environmental footprint and sophistication of mission - critical applications are demanding even more efficient, resilient and safe power protection solutions.

The new level of efficiency offered by the Eaton 93T UPS minimizes total cost of ownership while the safety and resiliency, both in infrastructure and IT layers, maximize availability and ensure business continuity

Features

UPS topology: Double-conversion (Online)
Output power capacity: 15 kVA
Output power: 15000 W
Input operation voltage (min): 380 V
Input operation voltage (max): 415 V
Input frequency: 50/60 Hz
Output operation voltage (min): 380 V
Output operation voltage (max): 415 V
Output frequency: 50/60 Hz
Number of input phases: 3
Number of output phases: 3
Efficiency (ECO mode): 99%
Output power factor: 1
Output voltage Total Harmonic Distortion (THD): 2%
Feature: Audible alarm(s)

Battery

Battery capacity: 9 Ah
Number of batteries included: 1 pc(s)
Typical backup time at half load: 19 min

Design

Form factor: Tower
Product colour: Black
Control type: Touch

Certificates

Compliance certificates: RoHS, CB, CE
Certification: IEC/EN 62040-2IEC/EN 62040-1EN 62040-3Manufactured in a plant certified to ISO 9001 and ISO 14001 management system standards

Packaging content

Feature: Quick installation guide

Weight & dimensions

Width: 380 mm
Depth: 740 mm
Height: 1328 mm
Weight: 221.5 kg
