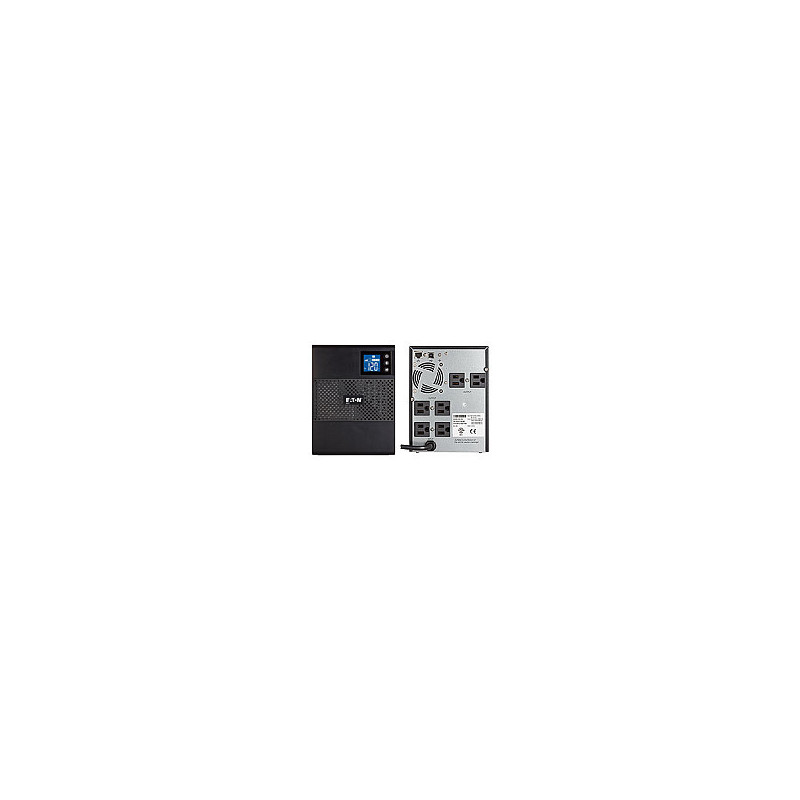

Eaton 5SC750 uninterruptible power supply (UPS)

Eaton 5SC750. Output power capacity: 0.75 kVA, Output power: 525 W, Waveform: Sine. AC outlet types: NEMA 5-15R, Power plug: NEMA 5-15P, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 5 min, Typical backup time at half load: 13 min. Form factor: Tower, Product colour: Black, Cable length: 1.8 m. Compliance certificates: RoHS, Certification: IEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class A

The flexible Eaton 5SC UPS delivers affordable and reliable protection for small business servers, storage and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm and power input sensitivity. By using Eaton's Intelligent Power Manager software with the 5SC UPS you get up-to-the-minute information on the status of power in your network. The 5SC offers pure sinewave output for sensitive equipment as well as buck and boost operation to correct a wide range of input voltage variations without using batteries.

Features

Output power capacity: 0.75 kVA
Output power: 525 W
Waveform: Sine
Input operation voltage (min): 96 V
Input operation voltage (max): 144 V
Input frequency: 50/60 Hz
Efficiency: 94%
Noise level: 55 dB

Ports & interfaces

AC outlet types: NEMA 5-15R
Power plug: NEMA 5-15P
AC outlets quantity: 6 AC outlet(s)
USB 2.0 ports quantity: 1
RS-232 ports: 1

Battery

Battery technology: Sealed Lead Acid (VRLA)
Typical backup time at full load: 5 min
Typical backup time at half load: 13 min
Feature: Cold start

Design

Form factor: Tower
Cable length: 1.8 m
Product colour: Black
Display type: LCD
LED indicators: Yes

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 90%

Certificates

Compliance certificates: RoHS
Certification: IEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class A

Safety regulation & standards

Safety: CE/cULus/NOM

Weight & dimensions

Width: 150 mm
Depth: 340 mm
Height: 209 mm
Weight: 10.5 kg

Logistics data

Harmonized System (HS) code: 85078000

Other features

Nominal output voltage: 120 V
Nominal input voltage: 120 V
