Eaton 5P 850i Rack 1U Netpack G2 (5P850IRNG2)
Product reference:
3-3553340710391
Eaton 5P 850i Rack 1U Netpack G2 (5P850IRNG2)
Eaton 5P 850i Rack 1U Netpack G2 (5P850IRNG2)
Product reference:
3-3553340710391
Eaton 5P 850i Rack 1U Netpack G2 (5P850IRNG2)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days
UPS topology Line-Interactive | Output power capacity 0.85 kVA | Output power 680 W | Waveform Sine | Input operation voltage (min) 150 V | Input operation voltage (max) 294 V | Input frequency 47/70 Hz | Output frequency 50/60 Hz | Heat dissipation 307 BTU/h | Number of input phases 1 | Number of output phases 1 | Efficiency 98% AC outlet types C13 coupler | Power plug C14 coupler | USB port Yes | Serial interface Yes | Battery technology Sealed Lead Acid (VRLA) | Battery voltage 6 V | Form factor Rackmount | Color Black,Silver | Display type LCD | Operating temperature (TT) 0 - 40 °C | Operating altitude 0 - 3000 m | Rack mount kit Yes | Weight 13.8 kg
| Summary: | Eaton 5P850IRNG2. UPS topology: Line-Interactive, Output power capacity: 0.85 kVA, Output power: 680 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 6 V. Form factor: Rackmount, Product color: Black, Silver, Display type: LCD. Compliance certificates: Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS |
| Vendor Homepage: | https://www.eaton.com/ua/en-gb/skuPage.5P850IRNG2.html |
| Category Code: | UPW |
| CnCode: | 85044095 |
| Unit Box Height: | 0.17 |
| Unit Box Length: | 0.59 |
| Unit Box Width: | 0.54 |
| Automatic Voltage Regulation (AVR): | Yes |
| Efficiency: | 98% |
| Heat dissipation: | 307BTU/h |
| Input frequency: | 47/70Hz |
| Input operation voltage (max): | 294V |
| Input operation voltage (min): | 150V |
| Noise level: | 35dB |
| Number of input phases: | 1 |
| Number of output phases: | 1 |
| Output frequency: | 50/60Hz |
| Output operation voltage (max): | 240V |
| Output operation voltage (min): | 200V |
| Output power: | 680W |
| Output power capacity: | 0.85kVA |
| Power factor: | 0.8 |
| UPS topology: | Line Interactive |
| Waveform: | Sin |
| AC outlet types: | C13 coupler |
| AC outlets quantity: | 4AC outlet(s) |
| Network card slot: | Yes |
| Power plug: | C14 coupler |
| RS-232 port: | 1 |
| Serial interface: | Yes |
| Serial interface type: | RS-232 |
| Serial ports quantity: | 1 |
| USB port: | Yes |
| USB port type: | USB Type-B |
| Battery capacity: | 7Ah |
| Battery technology: | Sealed Lead Acid (VRLA) |
| Battery voltage: | 6V |
| Hot-swap battery: | Yes |
| Number of battery cells: | 4 |
| Typical backup time at half load: | 13min |
| Display type: | LCD |
| Form factor: | Rackmount |
| Product colour: | Black,Silver |
| Operating altitude: | 0 - 3000m |
| Operating relative humidity (HH): | 0 - 90% |
| Operating temperature (TT): | 0 - 40°C |
| Cables included: | USB cable |
| Certification: | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS |
| Compliance certificates: | Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)/RoHS |
| Quick installation guide: | Yes |

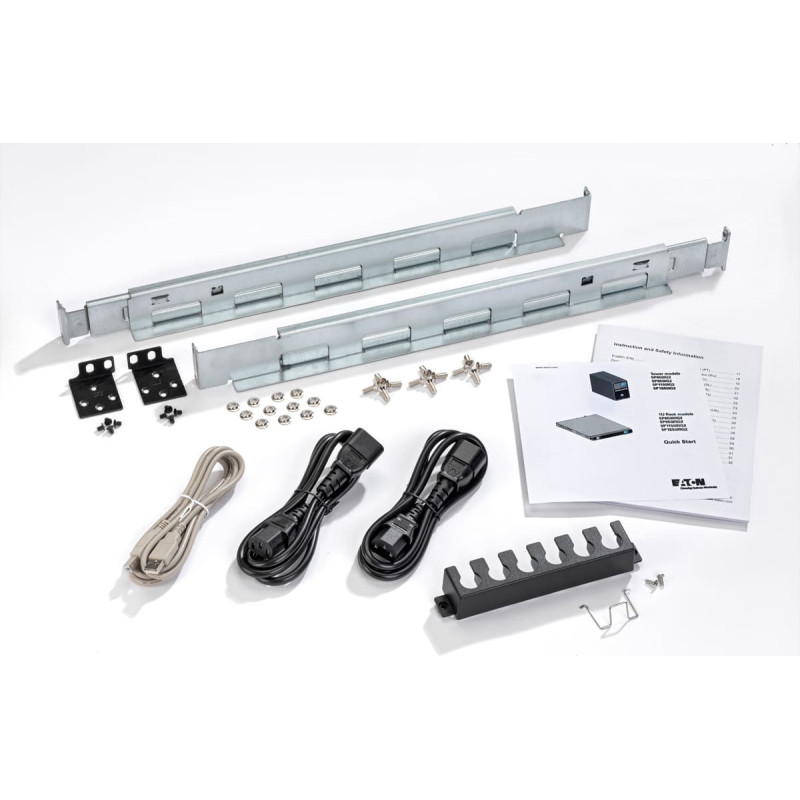

| Rack mount kit: | Yes |
| Waste Electrical and Electronic Equipment (WEEE) compliance: | Yes |
| Depth: | 509mm |
| Height: | 43.2mm |
| Weight: | 13780g |
| Width: | 438mm |
| Model: | 5P850IRNG2 |
| Units per Shipping Box: | 1 |
| Unit Calculated Volume: | 0.05416m³ |
| Unit Calculated Weight: | 18.5kg |
