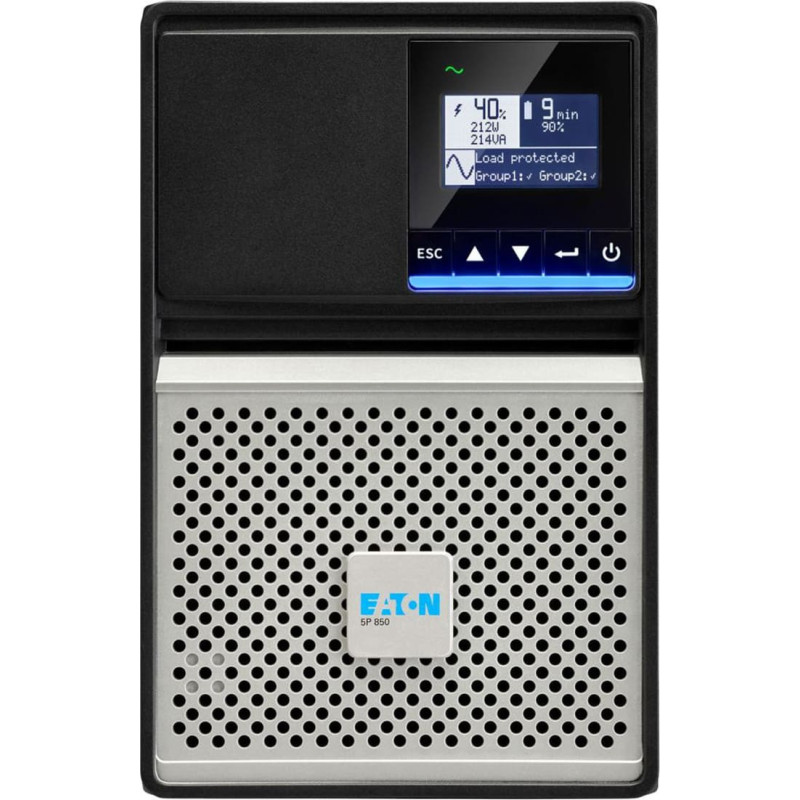

Eaton 5P 850i G2 (5P850IG2)
Product reference: 3-3553340710261

Eaton 5P 850i G2 (5P850IG2)

Eaton 5P 850i G2 (5P850IG2)
Eaton 5P 850i G2 (5P850IG2)
Eaton 5P 850i G2 (5P850IG2)
Eaton 5P 850i G2 (5P850IG2)
Eaton 5P 850i G2 (5P850IG2)
Eaton 5P 850i G2 (5P850IG2)

Eaton 5P 850i G2 (5P850IG2)

Product reference: 3-3553340710261

Eaton 5P 850i G2 (5P850IG2)

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
540,75 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 8
business days

Your message has been successfully sent!
Fill in the required fields*
Features
Output power capacity0.85 kVA
Efficiency98%
ECO fashionFrom
Input operation voltage (min)160V
Input frequency40/70Hz
Output operation voltage (min)240V
Noise level35 dB
Number of input phases1
Number of output phases1
Output power680W
Input operation voltage (max)294 V
Output frequency50/60Hz
WaveformPure movie
Output operation voltage (max)200V
UPS topologyLine Interactive
Design
CertificationIEC/EN 62040-1, UL 1778, IEC/EN 62040-2, IEC/EN 62040-3 (Performance), CE, cTUVus
SafetyIEC/EN 62040-1, UL 1778

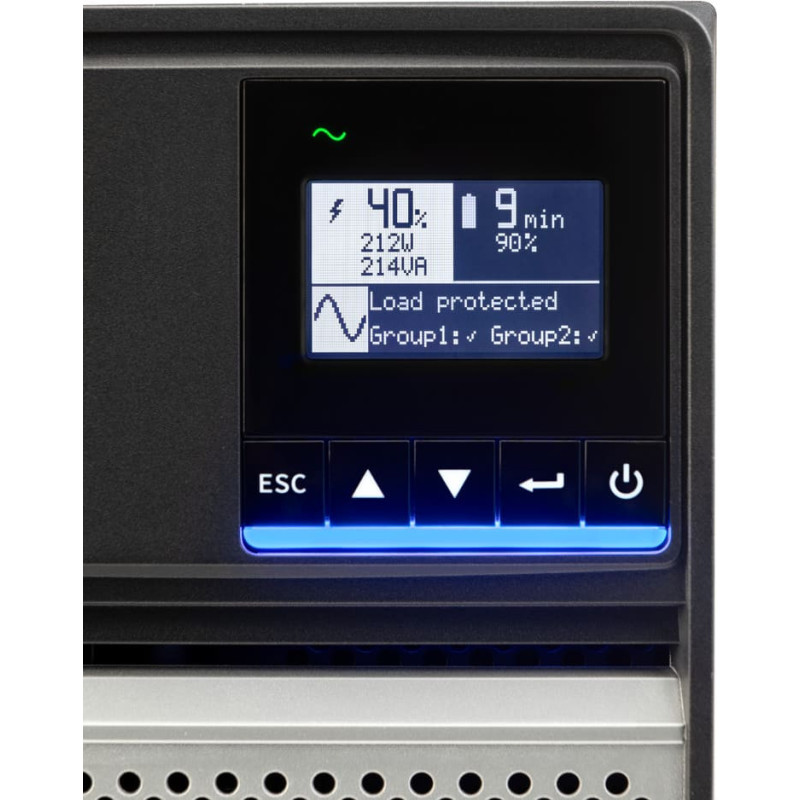

Display typeLCD
Product colourBlack, Grey
Form factorTower
Operational conditions
Operating temperature (TT)0 - 40 °C
Weight dimensions
Height233 mm
Depth345mm
Width150mm
Weight10.2 kg
Packaging data
Management card includedFrom

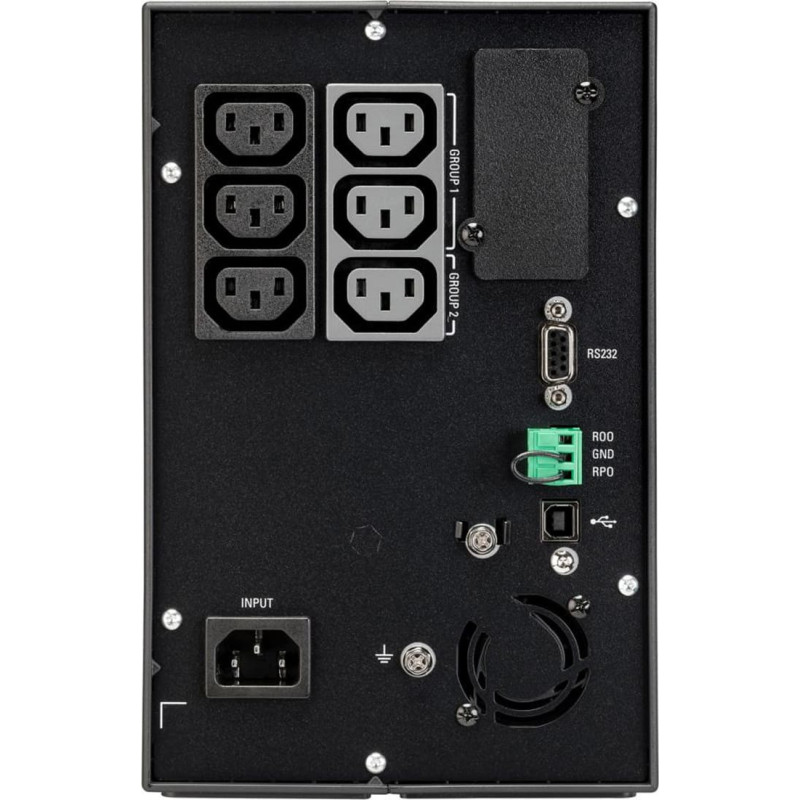

Ports interfaces
AC outlets quantity6 AC outlet(s)
AC outlet typesC13 coupler
RS-232 port1
Power plugC14 coupler
USB 2.0 ports quantity1
USB portYes
Battery
Typical backup time at full load4.5 minutes
Battery technologySealed Lead Acid (VRLA)
Automatic battery testYes
Typical backup time at half load13 minutes
Hot-swap batteryYes
Other features
Input connection typeIEC C14
Mac compatibilityFrom
Nominal input voltage230V
Nominal output voltage230V
