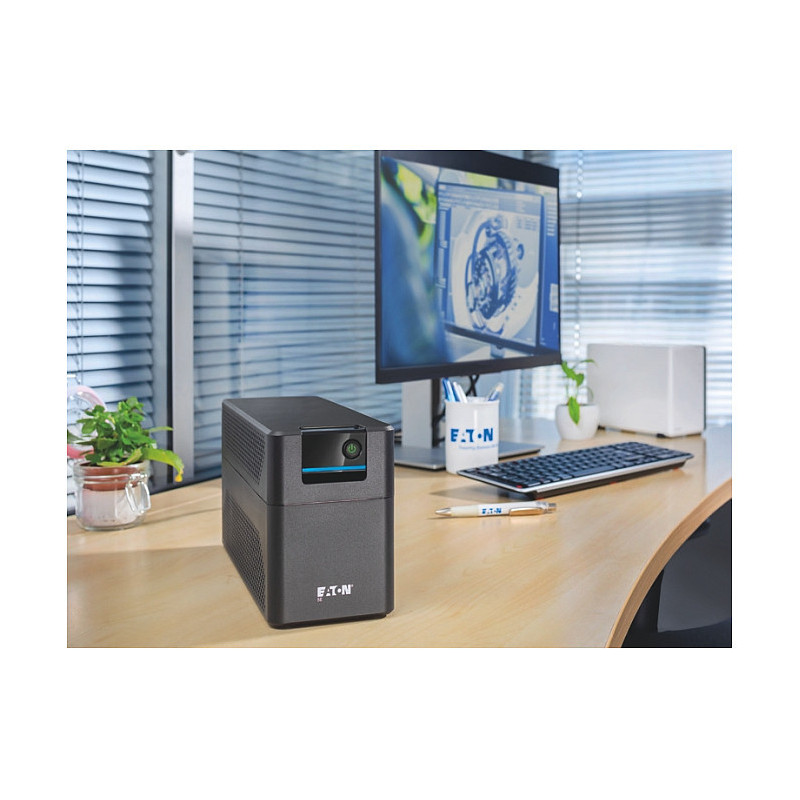

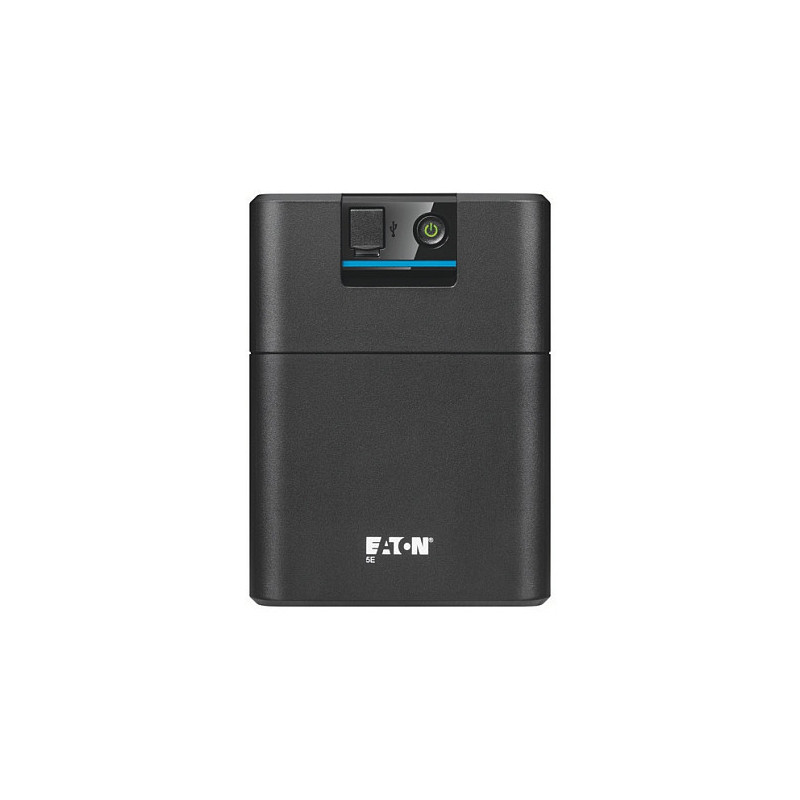

Eaton 5E Gen2 700 USB uninterruptible power supply (UPS)

Eaton 5E Gen2 700 USB. UPS topology: Line-Interactive, Output power capacity: 0.7 kVA, Output power: 360 W. AC outlet types: Type E, AC outlets quantity: 2 AC outlet(s). Form factor: Compact, Product colour: Black, Control type: Buttons. Compliance certificates: Low Voltage Directive (LVD), RoHS, WEEE, Certification: EN IEC 62040-1:2019; EN 62040-2:2006; IEC 62040-2: 2016, IEC 62040-3: 2021; CE; EAC; UKCA; Cm; Ukr. Width: 100 mm, Depth: 288 mm, Height: 148 mm

Eaton 5E Gen2 delivers efficient, affordable power protection for critical applications in both residential and professional settings.

Power protection
Eaton 5E Gen2 UPS protects application and data against power loss.
Double-boost Automatic Voltage Regulation (AVR) technology regulates grid fluctuations (under and overvoltage) to save battery power in the event of power outage.
A wide product range covers the power requirements of many IT devices.
Auto-restart function enables the UPS to restart automatically when mains power recovers after a total battery discharge.

Easy integration
Eaton 5E Gen2 implements national outlet formats (FR, DIN/IT, BS and IEC) to make application connection and protection easy.
Fanless design up to 1200VA ensures silent operation in residential settings.
Compact housing makes it easy to integrate in home or office.
Easily manage your UPS from your PC (on USB models):
Integrates automatically with Windows / MacOS / Linux power management for safe system shutdown.
Analyse energy usage and manage UPS parameters with Eaton UPS Companion software.

Peace of mind
A leading manufacturer you can trust with decades of experience and high quality standards: CE-ertified by an external agency (TUV) according to latest international safety standards.
Know you can depend on batteries round the clock:
5E Gen2 batteries are permanently recharged (even when off).
UPS can start without mains (cold start).
Automatic battery test and battery replacement alarm.
Ensure peace of mind thanks to a two-year warranty.

Features

UPS topology: Line-Interactive
Output power capacity: 0.7 kVA
Output power: 360 W
Input operation voltage (min): 220 V
Input operation voltage (max): 240 V
Input frequency: 50/60 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Feature: Automatic Voltage Regulation (AVR)
Noise level: 25 dB
Power protection features: Over voltage, Under voltage
Feature: Audible alarm(s)
Audible alarm modes: Battery replacement
Feature: Auto-restart
Power source type: AC

Ports & interfaces

AC outlet types: Type E
AC outlets quantity: 2 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 1

Battery

Feature: Automatic battery test
Feature: Cold start

Design

Form factor: Compact
Product colour: Black
Control type: Buttons

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Certificates

Compliance certificates: Low Voltage Directive (LVD), RoHS, WEEE
Certification: EN IEC 62040-1:2019; EN 62040-2:2006; IEC 62040-2: 2016, IEC 62040-3: 2021; CE; EAC; UKCA; Cm; Ukr

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 100 mm
Depth: 288 mm
Height: 148 mm
Weight: 4.4 kg
