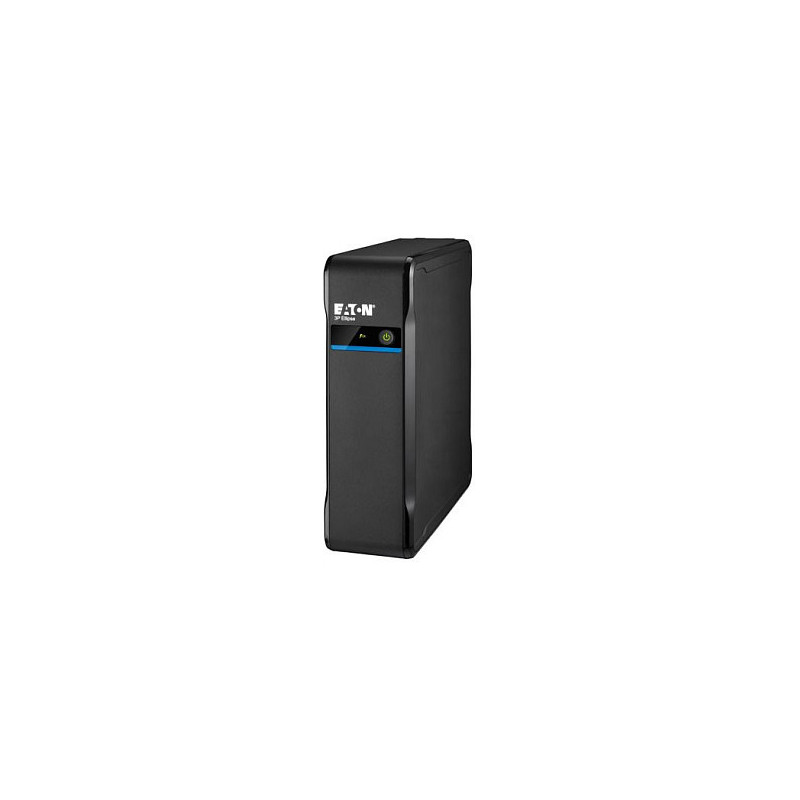

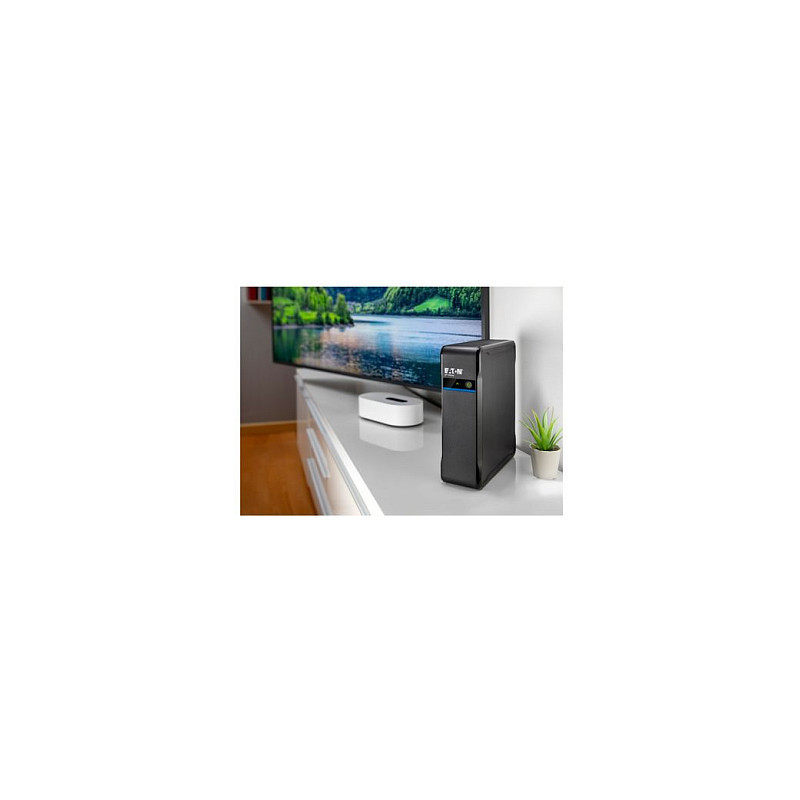

Eaton 3P Ellipse uninterruptible power supply (UPS)

Eaton 3P Ellipse. UPS topology: Standby (Offline), Output power capacity: 0.7 kVA, Output power: 420 W. AC outlet types: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Display type: LED. Compliance certificates: CB, CE, RoHS, WEEE, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Cm

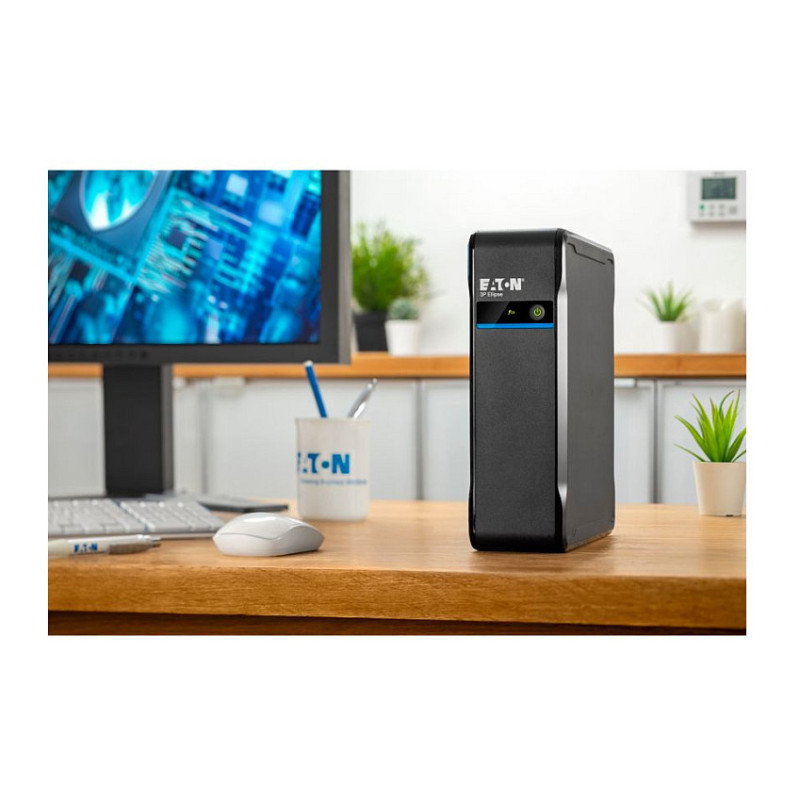

The 3P Ellipse UPS is Eaton's latest addition to its power protection solution portfolio. Sleek, attractively designed, and silent in operation, this compact UPS offers an exceptional user experience for backup power in both residential and small business settings.
Power up with confidence
Enjoy up to 12% more power than the previous Ellipse ECO models and a typical runtime of 15 to 20 minutes, ensuring you can handle disruptions smoothly.

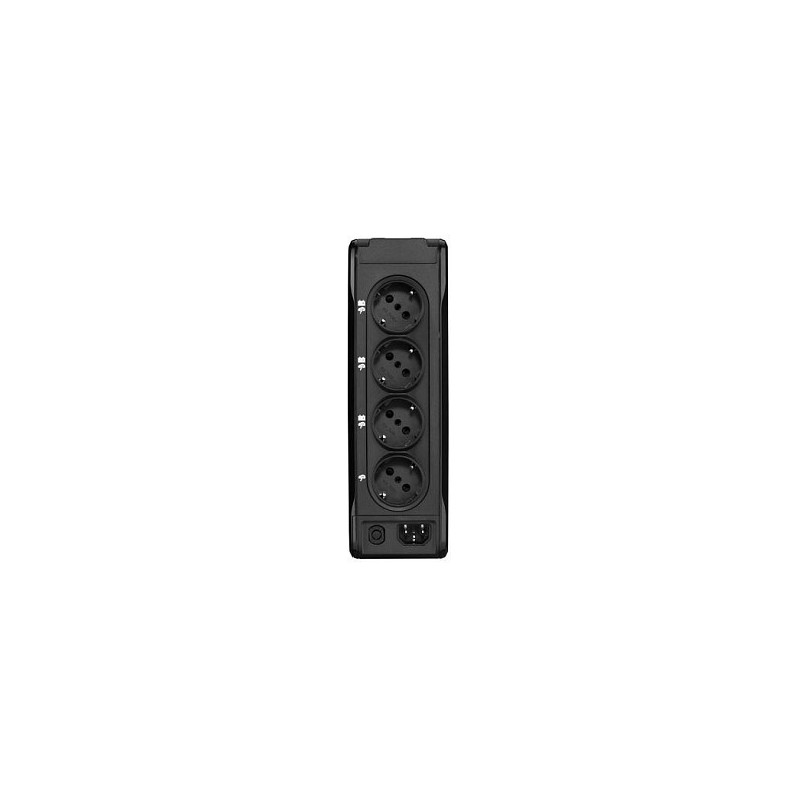

Save yourself the hassle and the need for additional adapters by plugging your equipment directly into the UPS using FR, DIN/IT, and IEC outlet options. This unique feature in a predominantly IEC-only market ensures convenience.
Operate any device with confidence, thanks to the built-in surge protection that meets the high-level IEC 61643-11 standards.
Designed for your space

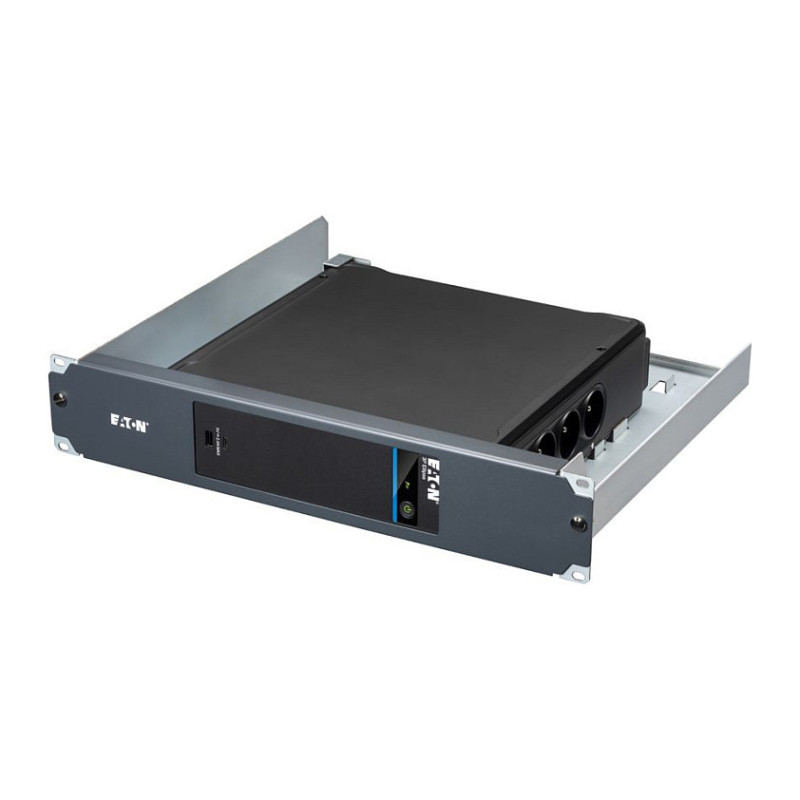

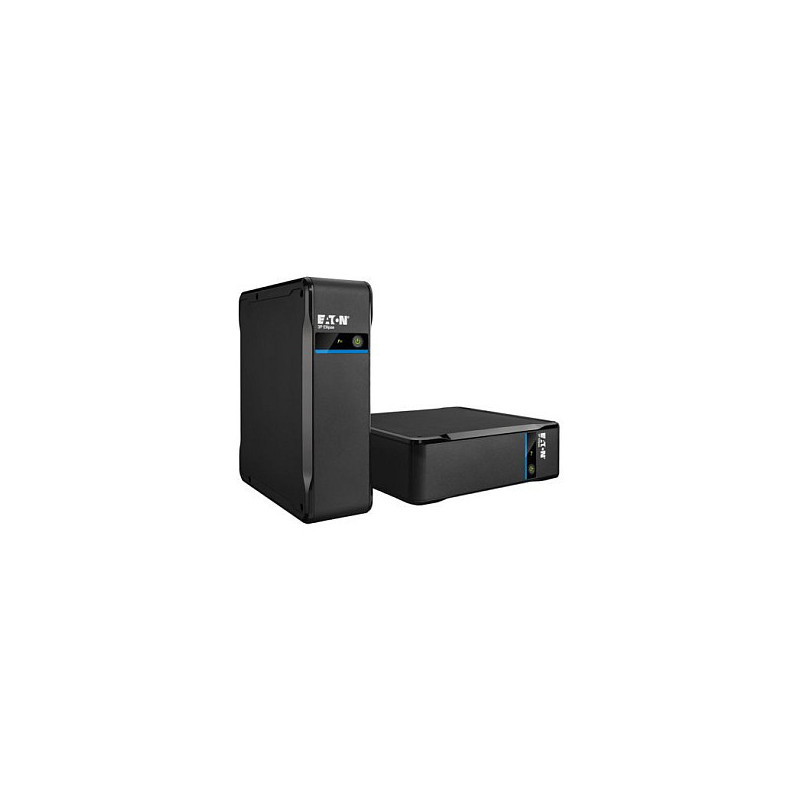

Complement any interior with 3P's contemporary good looks that also come with versatile usability. Flexible, multi-position design allows the UPS to fit seamlessly into any environment—horizontally, vertically, as well as rack or wall-mounted (with optional kits).
Charge mobile devices whenever you need to using 3P's choice of USB-A and USB-C charging ports.
Watch, listen or work without distraction.
Enjoy a silent user experience in both residential and business settings thanks to 3P's discreet, no-fan engineering.
Control at your fingertips
Access status and notifications in real time via mobile app or web browser with an optional CLOUDPS card. With remote now the 'new normal' for many small businesses, cloud connectivity brings added control and peace of mind from any location.

Features

UPS topology: Standby (Offline)
Output power capacity: 0.7 kVA
Output power: 420 W
Waveform: Stepwise
Input operation voltage (min): 161 V
Input operation voltage (max): 284 V
Input frequency: 46/70 Hz
Output operation voltage (min): 161 V
Output operation voltage (max): 284 V
Output frequency: 50/60 Hz
Number of input phases: 1
Number of output phases: 1
Efficiency: 97%
Efficiency (ECO mode): 97%
Output power factor: 0.6
Noise level: 25 dB
Surge protection: Yes

Ports interfaces

AC outlet types: C14 coupler
AC outlets quantity: 4 AC outlet(s)

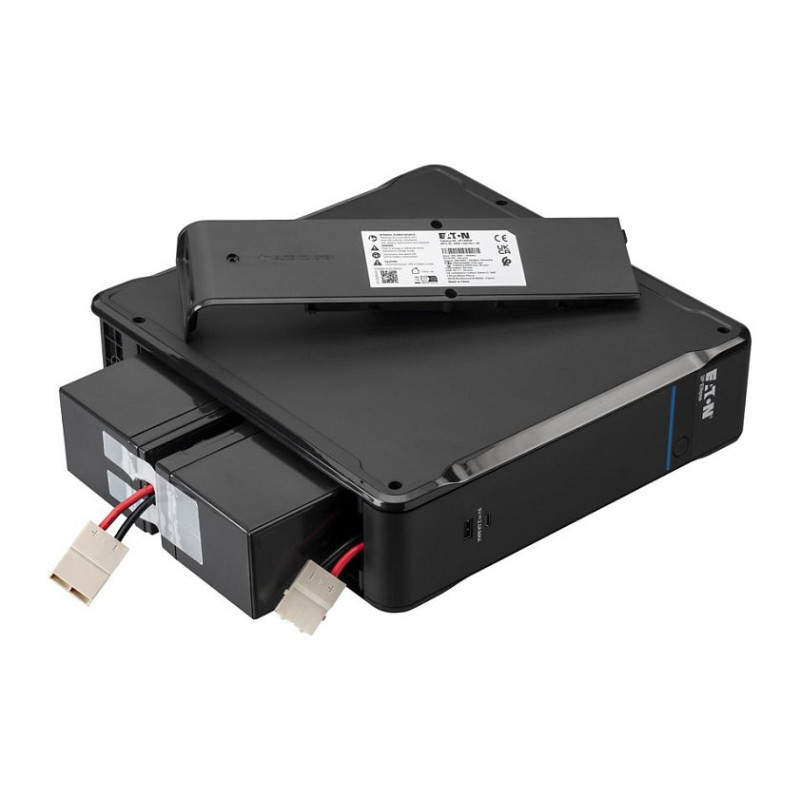

Battery

Battery capacity: 7 Ah
Battery voltage: 12 V

Design

Form factor: Tower
Product colour: Black

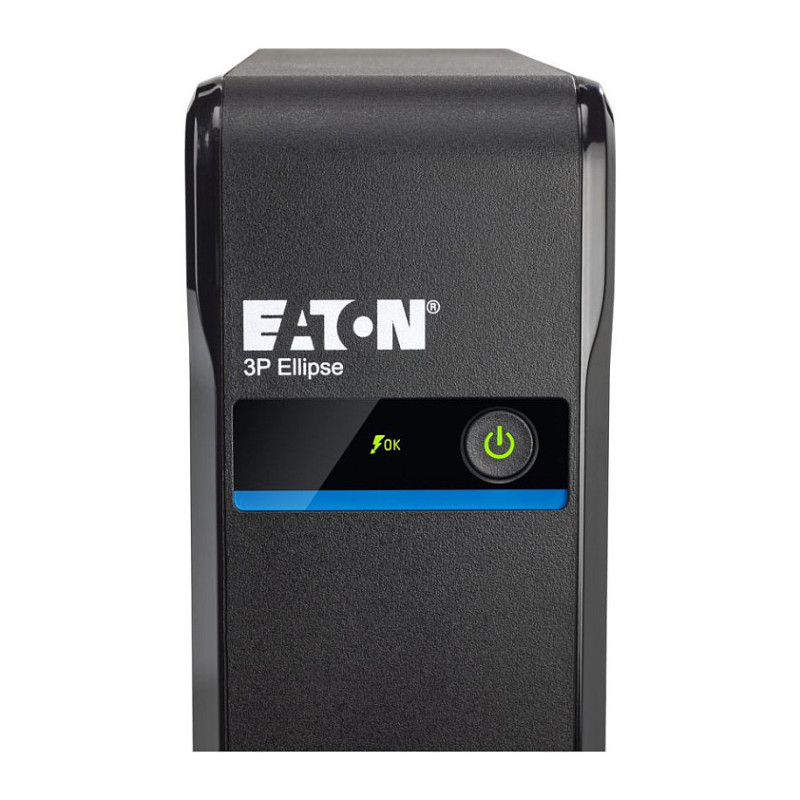

Display type: LED

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m

Certificates

Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
Compliance certificates: CB, CE, RoHS, WEEE
Certification: IEC/EN 62040-1IEC/EN 62040-2IEC/EN 62040-3CEUKCACm

Packaging content

Rack mount kit: No

Weight dimensions

Width: 81 mm
Depth: 235 mm
Height: 263 mm
Weight: 3.7 kg
