Distribution Panel Tibox 585x900x115mm 5x24mod., Ip54, Surface Mounted

Distribution panel 585x900x115mm, 5 DIN x24P, surface-mounted, metal, IP54. Surface-mounted metal distribution box with 5 DIN rails specially designed for the installation of circuit breakers.
Features:

• Metal distribution box designed for installing electrical switches in residential or industrial premises. One DIN rail holds up to 24 contacts, the frame with cutouts on all sides allows you to neatly hide the wires.


• Safety class IP54 (resistance to moisture and dust).


• The package includes a box body, a door with a latch, DIN rails and a front frame with cutouts.


• The body is coated with epoxy coating with polyester powder texture, color RAL 7035 - light gray.

Technical data:

• Number of modules: 5 rows x 24 modules.


• Housing material: sheet steel.


• Installation: surface-mounted.


• Safety class: IP54.


• Color: RAL 7035 light gray.

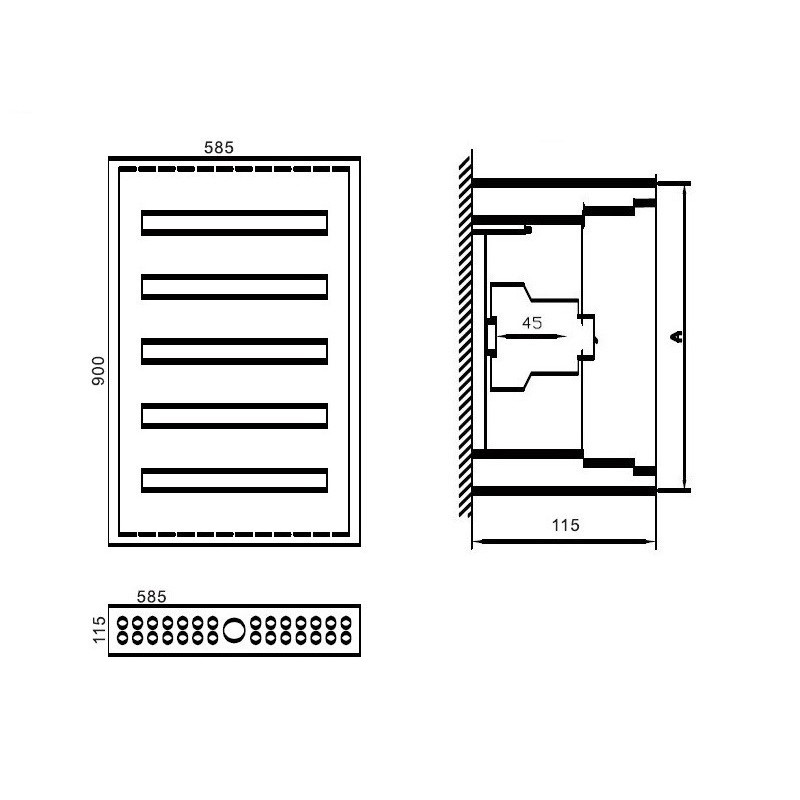

• Height: 900mm.


• Width: 585mm


• Depth: 115mm.


• Wall and door thickness: 1.2mm.
