Digitus DK-1P16-A-050-BL electric vehicle charging cable

Digitus EV charger for household socket. Cable colour: Black, Connector 1: Type 2, Connector 2: Schuko. Maximum operating power (single-phase): 3.7 kW, Maximum operating current per phase: 16 A, Operating voltage: 230 V. Cable length: 5 m. Quantity per pack: 1 pc(s), Package type: Box, Package width: 330 mm

Adjustable current between several amperages and fast charging functions

- Compact and easy to transport: Lightweight and flexible cable that can be easily stored in the trunk or hung up in the garage
- Adjustable output power: Maximum 16A with four options (8 A, 10 A, 12 A and 16 A) Recommended 10A
- Safety and durability: High-quality copper cable and TPU material as outer shell together with IP55 provide maximum protection for your EV charger and your car
- Compatibility: Compatible with all electric vehicles, electric cars and hybrids of type 2 (IEC 62196-2)
- Charging: Supports 1-phase charging processes up to max. 3.7 kW
- Safety and protection: built-in power compensator of the EV charging cable, protects against overcurrent, overvoltage, overheating and lightning strikes

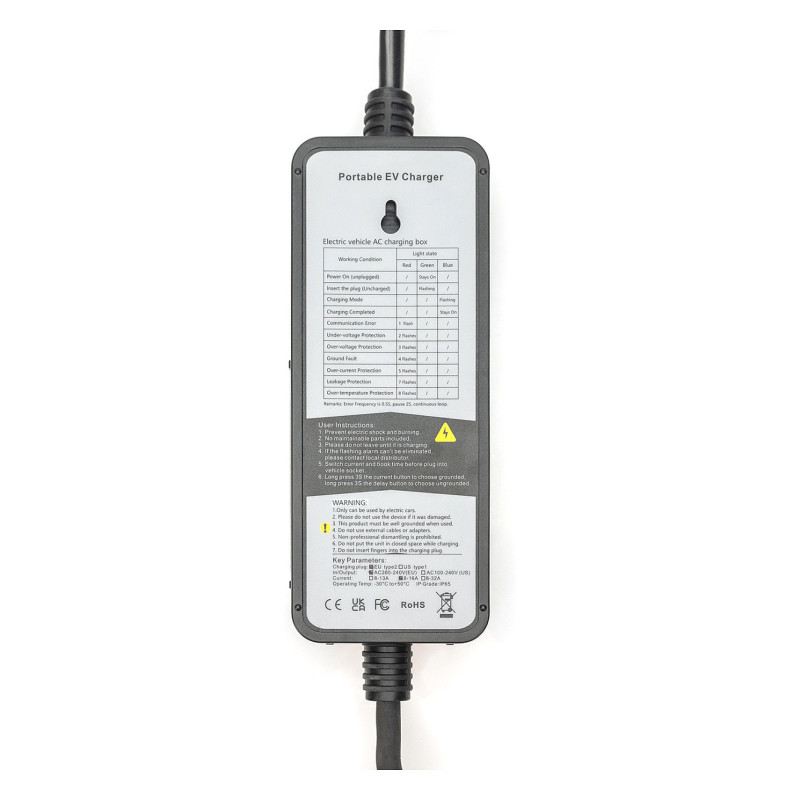

- Status display: The LCD display shows all charging data during the charging process, even if an error occurs during charging

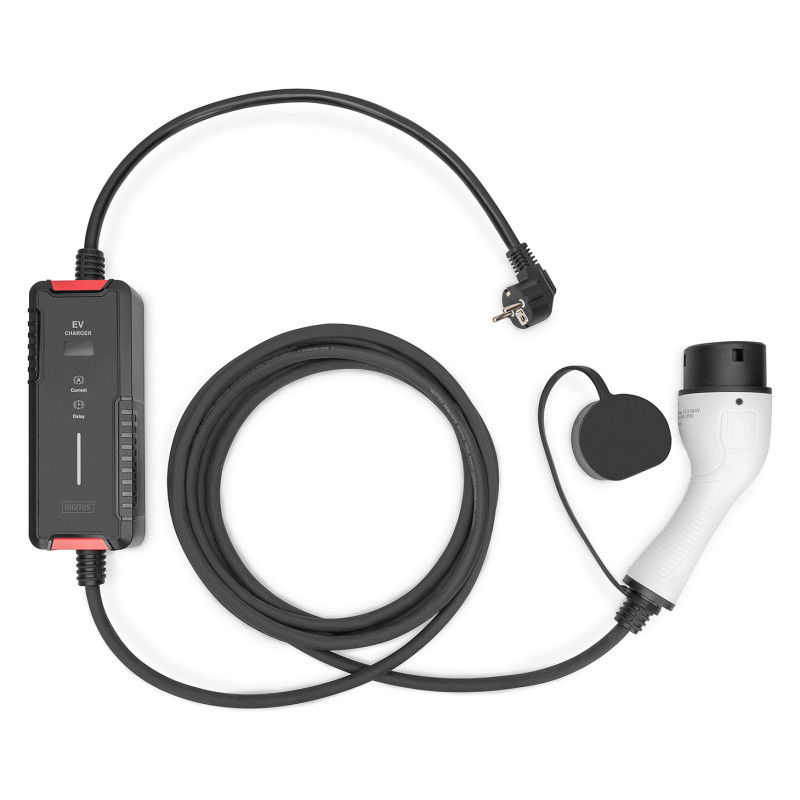

The DIGITUS Portable charger DK-1P16-A-050-BL offers a Smart and convenient way to charge E-vehicles. No assembly, no complicated connection. You can charge anywhere from a standard 230 V socket (mains) and Type 2 can be at charging port. The 5 m cable length makes the connection comfortable. With IP55 protection class, carrying to different locations is possible.

Features

Cable colour: Black

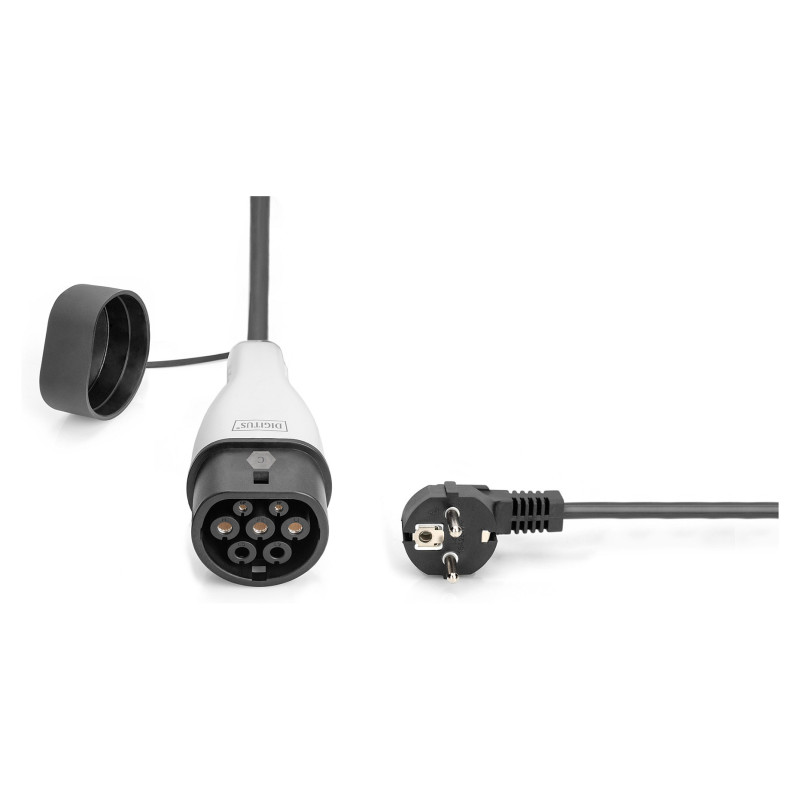

Connector 1: Type 2
Connector 2: Schuko
Connector 1 form factor: Straight
Connector 2 form factor: Angled
International Protection (IP) code: IP55
Feature: Protective cap

Power

Number of phases: 1
Maximum operating power (single-phase): 3.7 kW
Maximum operating current per phase: 16 A
Operating voltage: 230 V

Weight & dimensions

Cable length: 5 m

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Operating relative humidity (H-H): 5 - 95%

Packaging data

Feature: Manual
Package type: Box
Package width: 330 mm
Package depth: 360 mm
Package height: 100 mm
Package weight: 6.9 kg
Package volume: 11880 cm³
Quantity per pack: 1 pc(s)
