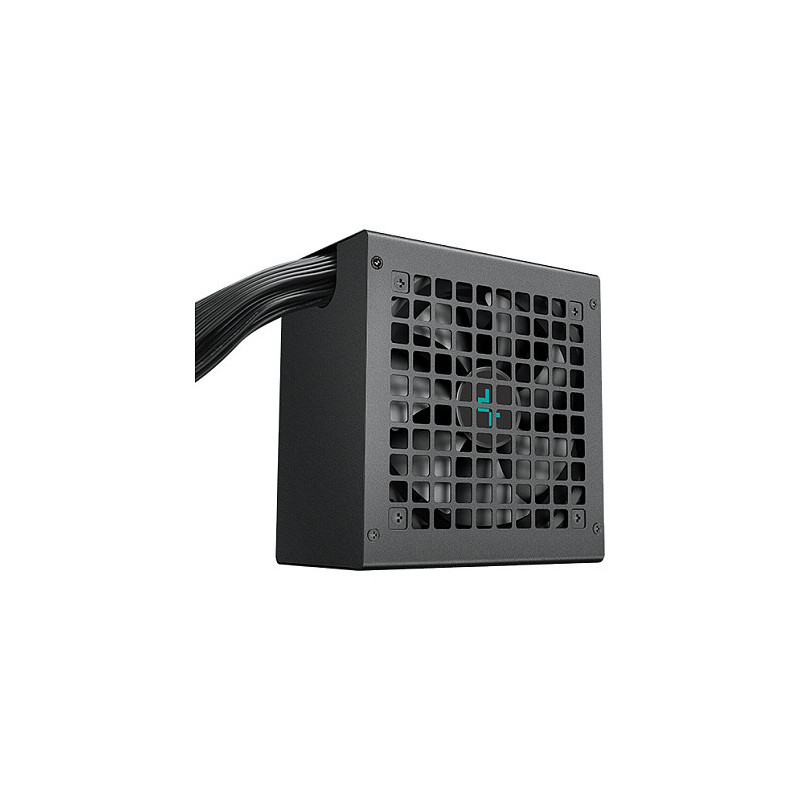

DeepCool PL800D power supply unit

DeepCool PL800D. Total power: 800 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 550,450,650 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, WEEE, Certification: CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
The PL800D updates DeepCool non-modular PSUs with a 12VHPWR cable and brings them into compliance with INTEL's ATX3.0 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.
PL800D
Native ATX3.0 Power Supply
NATIVE ATX3.0
Based on INTEL's latest ATX3.0 standard, the PL800D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.0 power connector is included and has been rated up to 300 watts.
PREMIUM ELECTROLYTIC CAPACITORS
High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to ≥ 16 ms under full load (100%), and they can easily handle power outages.
ROCK SOLID RELIABILITY
Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.
PAST, PRESENT, AND FUTURE
Equipped with three PCIe, two EPS, and a 16AWG 12VHPWR cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
BOLD BRONZE
Certified 80 PLUS Bronze, ensuring at least 85% efficiency under typical loads (50%).
PEACE OF MIND
Includes a slew of well-rounded safeguards, including: OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO.
EXCEPTIONAL WARRANTY
Standing behind the high standards DeepCool has set for our products, a 5-year limited warranty is included to ensure worry-free service.

Power

Total power: 800 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 9 - 4.5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 648 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 54 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Efficiency: 85%
Power Good signal delay range: 100 - 150 ms
Power protection features: No load operation, Over current, Over power, Over voltage, Overheating, Surge inrush protection (SIP), Surge protection, Under voltage

Ports interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
SATA power cable length: 550,450,650 mm
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (16-pin): 1
Feature: CPU power connector (4+4 pin)
Feature: ATX power connector (20+4 pin)
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
Bearing technology: HYB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active

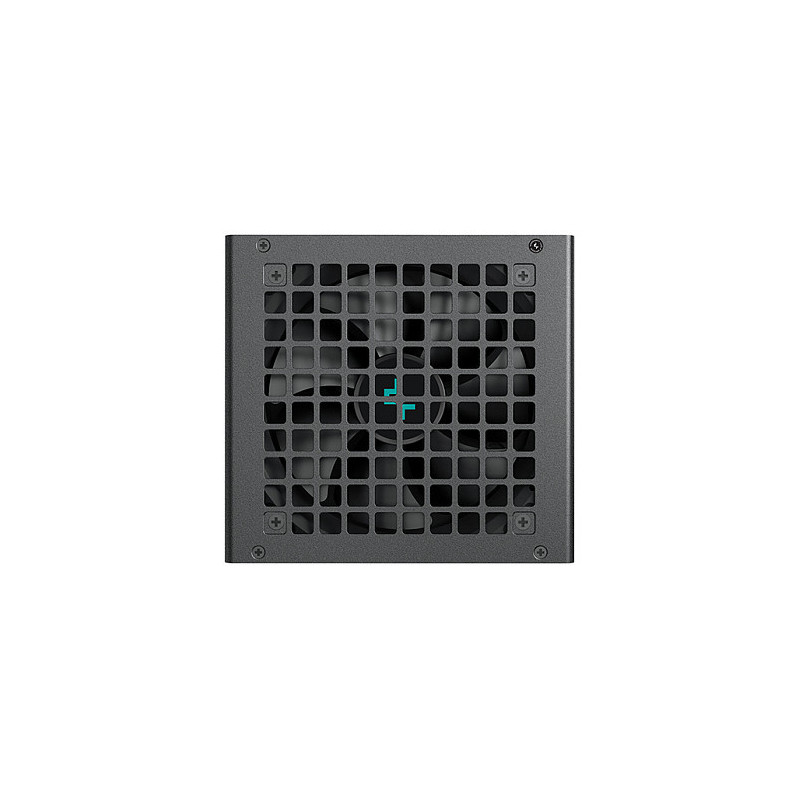

Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top

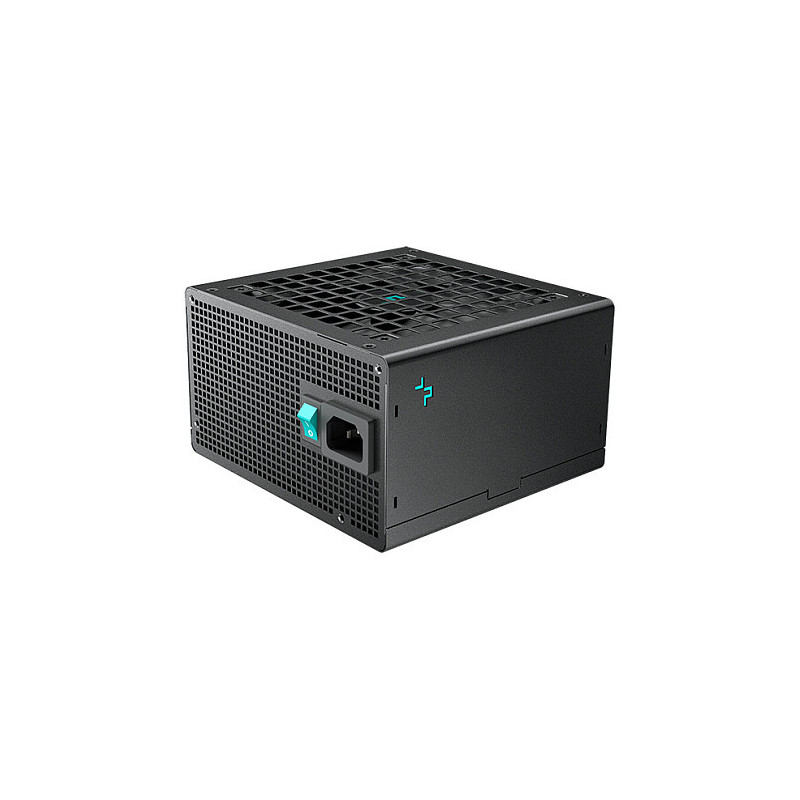

Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Certificates

Compliance certificates: RoHS, WEEE
Certification: CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH

Weight dimensions

Width: 150 mm
Depth: 140 mm
Height: 86 mm

Packaging data

Package type: Box

Technical details

Feature: Sustainability compliance
Sustainability certificates: ErP, Triman

Logistics data

Country of origin: China
