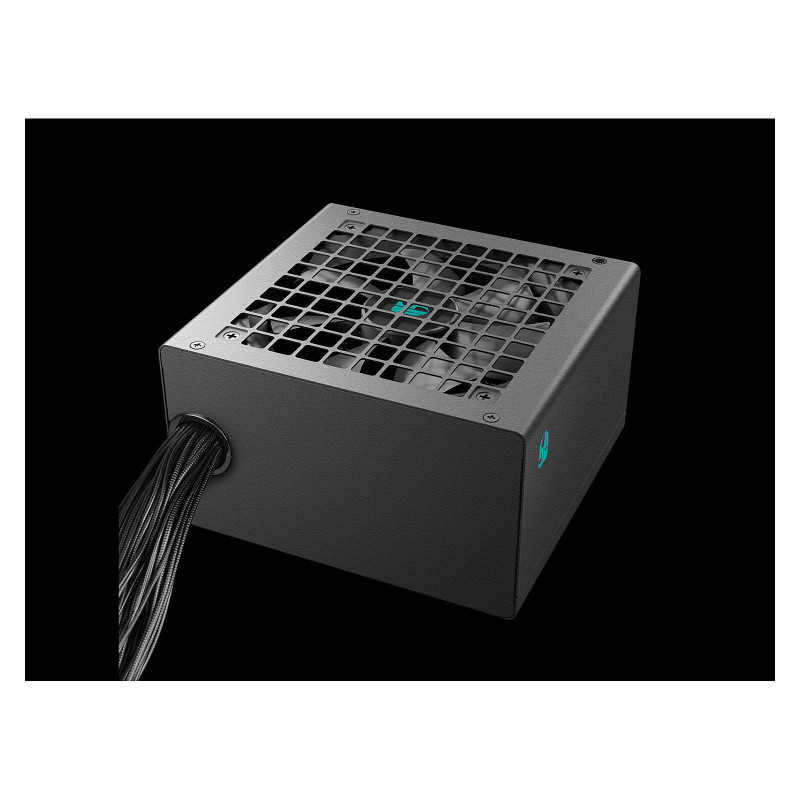

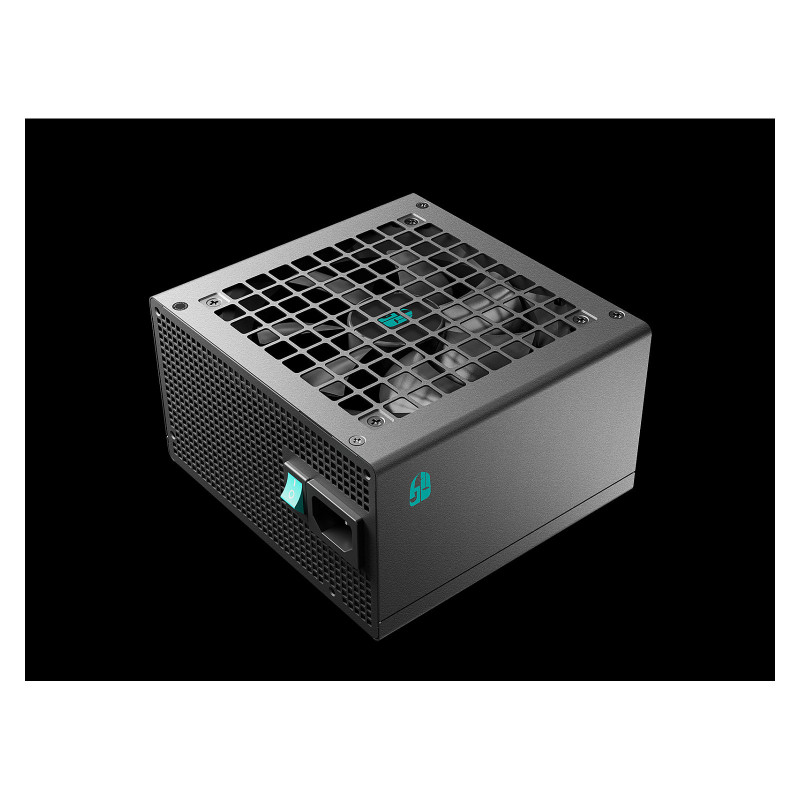

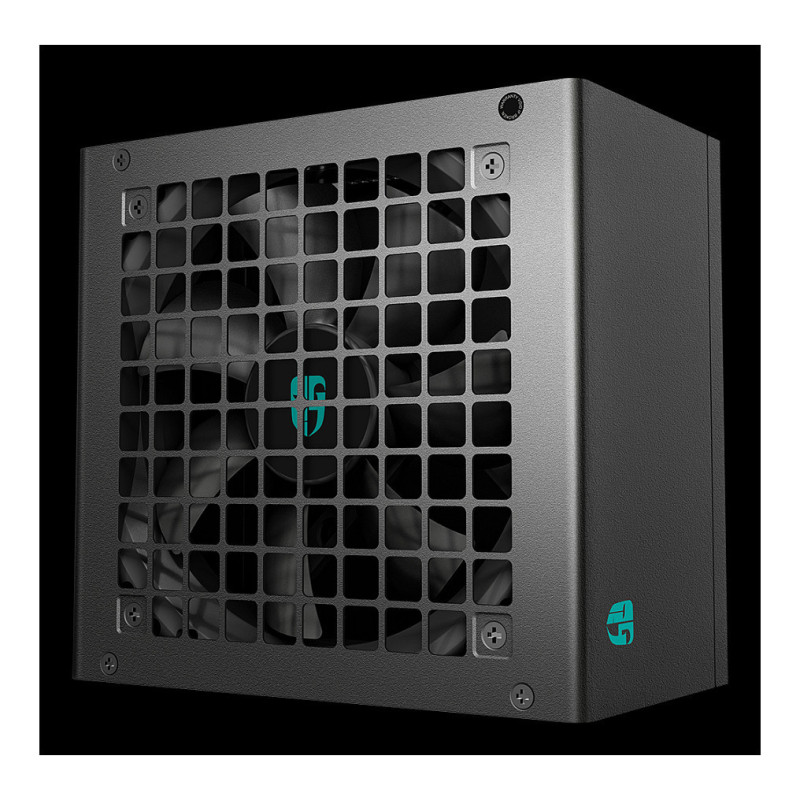

DeepCool PF700X power supply unit

DeepCool PF700X. Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450,600,750 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC

MULTIPLE BRONZE EFFICIENCY CERTIFICATIONS
The *bronze efficiency obtained from 80 PLUS, Cybenetics, and PPLP, ensuring 88% efficiency under typical loads (50%), significantly reduced energy loss and heat generation while extending the service life of the PSU.

TAIWANESE + JAPANESE PREMIUM CAPACITORS
By using the Taiwanese premium solid and electrolytic capacitors, the PF-X series can ensure a hold-up time ≥ 16ms under 75% load, which provides reliable protection for abnormal power outages.
The 5V Stand-By rail uses an electrolytic capacitor from two major Japanese brands, which have a four-fold life span compared with normal, ensuring stable standby throughout the day.

RELIABLE TOPOLOGY

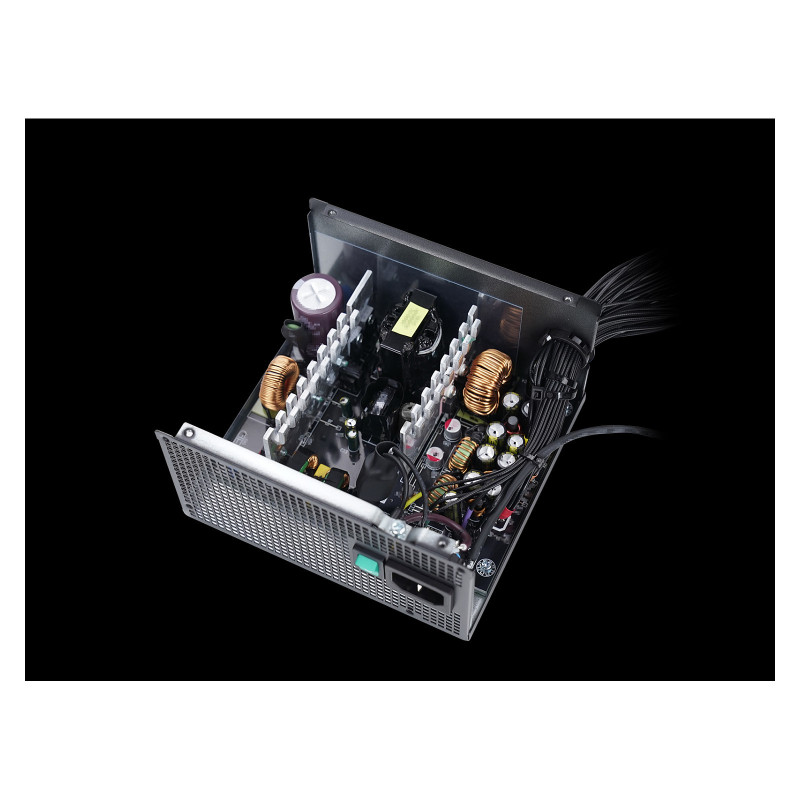

To meet the Intel ATX 2.52 standard, using Active PFC + Double Forward + DC to DC, combined with a dual-stage EMI circuit. It significantly reduces ripple noise and voltage deviation, providing better electrical performance and compatibility.

WIDE VOLTAGE ADAPTATION
Supporting 180V-264V wide voltage operation and extreme full-load working conditions under room temperature at a 160V low-voltage grid were supported to avoid voltage instability shutdown.

Strict Safety Standard
Strictly following global safety standards, beyond competitors, including the 40 and 5000m safety levels, meets the requirements for high-temperature and high-altitude areas.

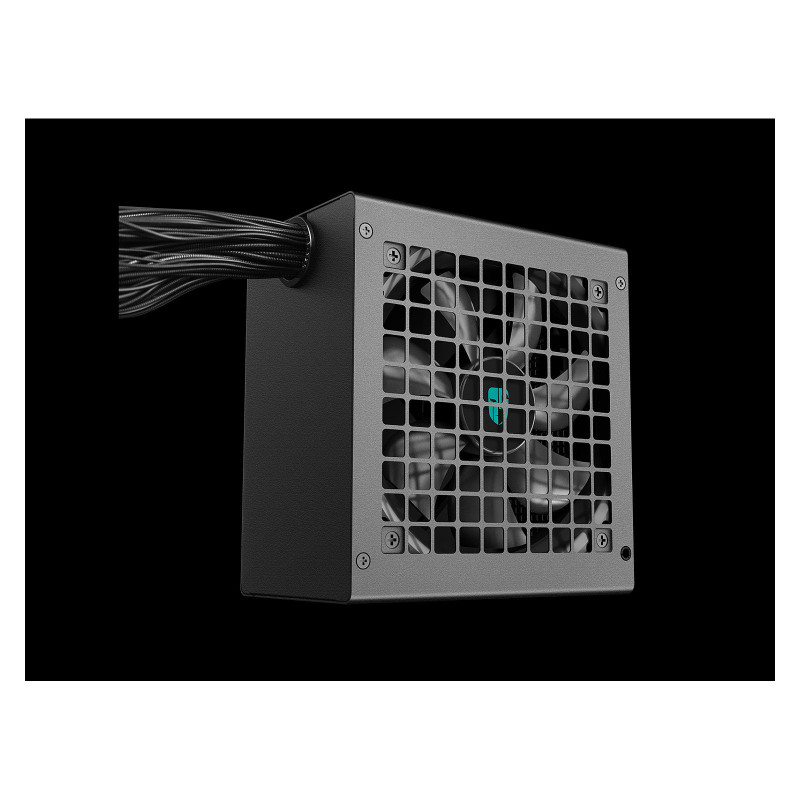

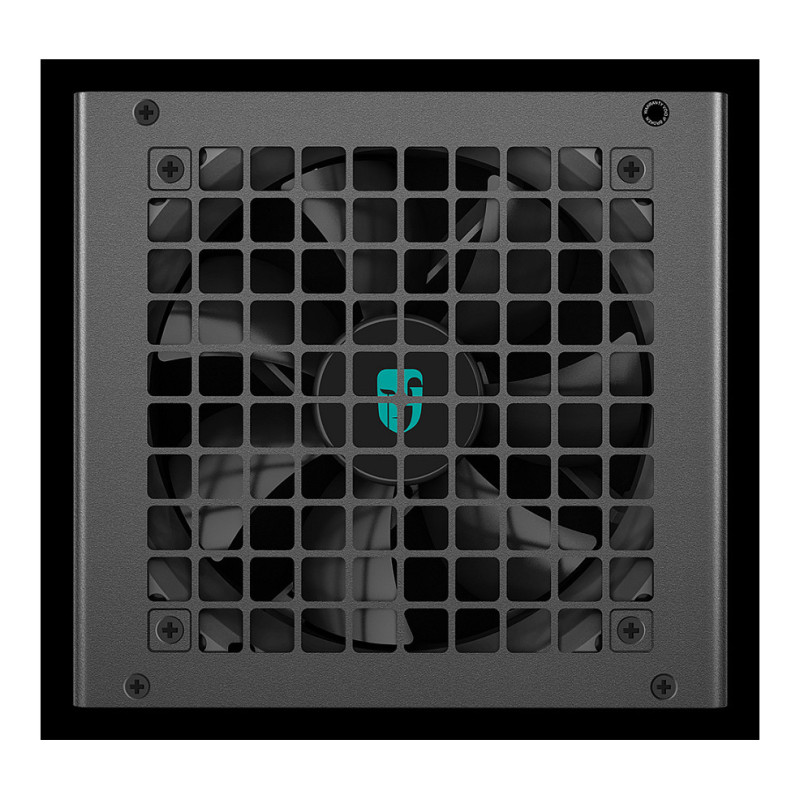

40K HRS MTBF LONG-LIFE FAN
A high-quality long-life bearing fan extends operational life by 30% compared to a normal fan and can continuously function for 7×24 hrs in a 40 environment. Meanwhile, the aerodynamic design based on PCB layout and flow resistance offers superior stability and quiet operation.

High-Grade Configurations
Equipped with GAMER STORM's custom-molded sleeved cables significantly enhances the installation and wiring experience.

Peace of Mind
The PF-X is equipped with eight protection IC providing comprehensive safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO.

Power

Total power: 700 W
AC input voltage: 200 - 240 V
AC input frequency: 50/60 Hz
Input current: 5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 110 W
Combined power (+12V): 699.6 W
Combined power (+5V): 110 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 18 A
Max output current (+12V): 58.3 A
Max output current (+5V): 18 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Efficiency: 88%
Power protection features: No load operation, Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 3
SATA power cable length: 450,600,750 mm
Number of SATA power cables: 2
Peripheral (Molex) power connectors (4-pin): 1
Peripheral (Molex) power cable length: 900 mm
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 55 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 62 cm
Feature: ATX power connector (20+4 pin)
Feature: PCI Express connector
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.52
Bearing technology: HYB
Mean time between failures (MTBF): 40000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 40 °C

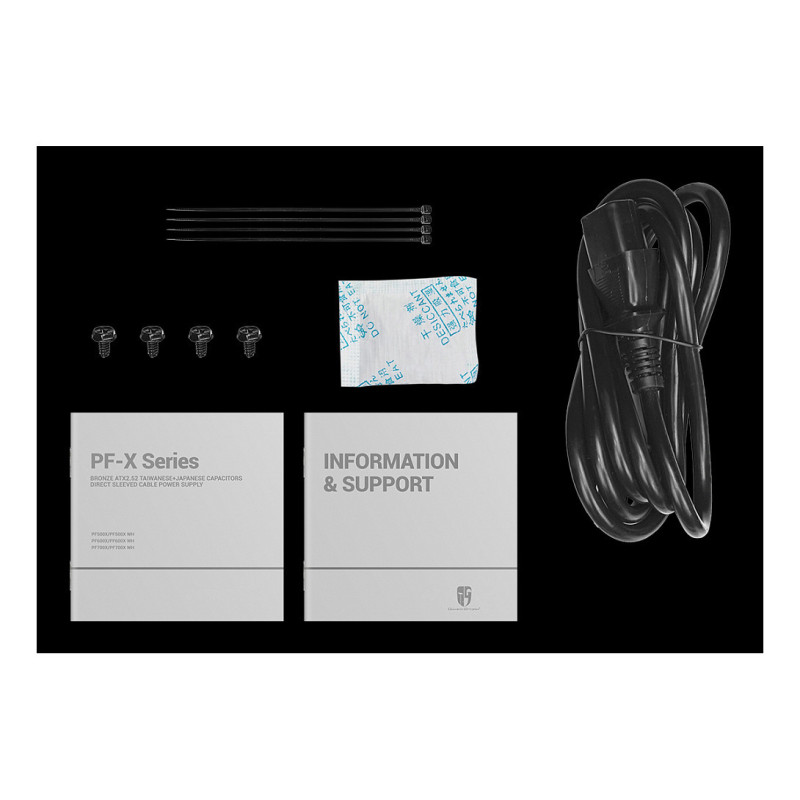

Packaging content

Cables included: AC

Certificates

Compliance certificates: CCC, CE, KC, RCM, TÜV mark, WEEE

Weight & dimensions

Width: 150 mm
Depth: 140 mm
Height: 86 mm

Packaging data

Package type: Box

Technical details

Sustainability certificates: ErP, Triman

Logistics data

Warranty period: 3 year(s)

Other features

Feature: Screws included
Feature: Cable ties included
