DC switch 4P, 32A, 1000VDC, Din

DC switch DC for circuit disconnection and PV installation control; DIN rail mounting, up to 1000V / 32A, with handle and lock, for safe use and maintenance.
Features:

• 4 contacts, 1000V DC, 32A.


• DC switch with lockable knob.


• No connection direction restriction.


• Fire resistant, UV resistant.


• Used for infrequent on/off and can disconnect 1-2 MPPT lines at a time.


• The PV solar system is effectively disconnected through 3ms.


• Can be applied in solar power systems: inverter, controller, DC junction box, used for residential or commercial PV solar power system.


• Certificates: IEC60947-1, IEC60947-3, AS5033:2014, NZS5033:2014, UL508i.

Technical data:

• Number of contacts: 4.


• Nominal voltage (Ue): DC 1000V.


• Insulation voltage (Ui): DC 1500V.


• Rated current (In): 32A.


• Rated impulse withstand voltage (Uimp): 8kV.


• Mechanical life: 10000.


• Electrical life: 3000.


• Installation: on DIN rail.


• Connector type: M4.

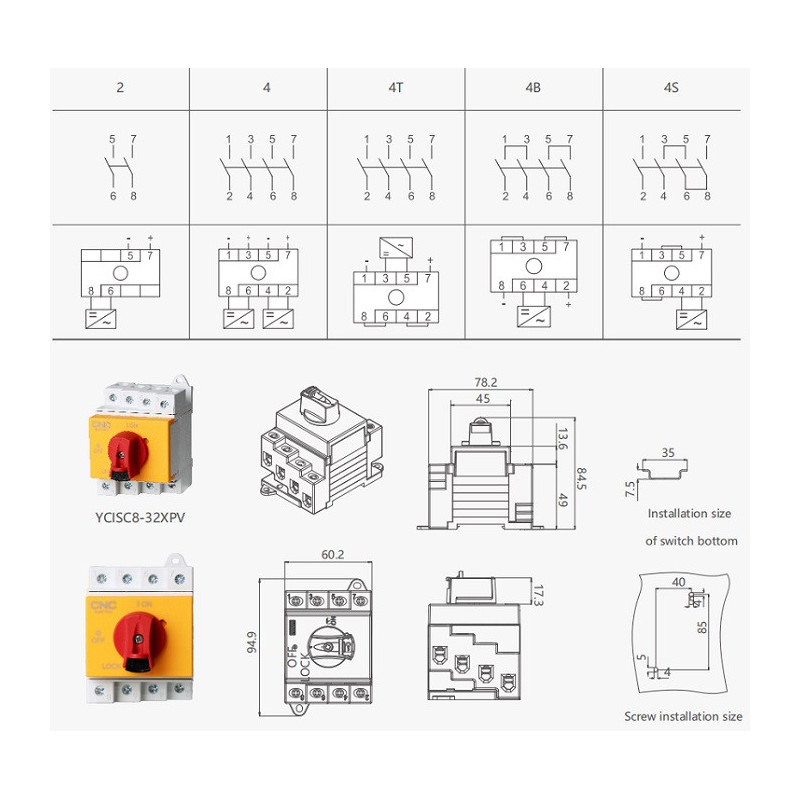

• Connection type: 2, 2H, 4, 4T, 4B, 4S.


• Wire cross-sectional area: max. 4-16mm2.


• Disconnection time: 3ms.


• Safety class: IP20, V0.


• Dimensions: 94.9 x 60.2 x 78.2 mm.


• Operating temperature: -40°C to 85°C.


• Storage temperature: -40°C to 85°C.
