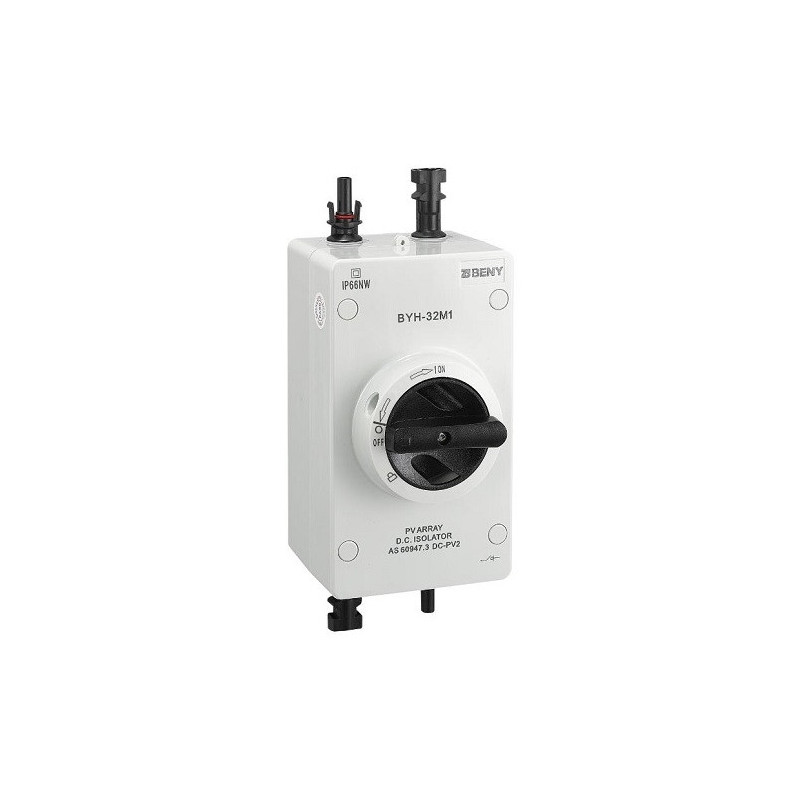

DC Isolator - 2P 32A 1000VDC MC4 IP66
Product reference:
14-9990000821396
The DC isolator with 4 poles, rated at 1000V DC and 32A, has a breathing valve and pre-connected MC4 for easy installation. It meets the IP66 protection class, has a tripping time of less than 3 ms and an operating temperature range of -40°C to 85°C.
DC Isolator - 2P 32A 1000VDC MC4 IP66
Product reference:
14-9990000821396
The DC isolator with 4 poles, rated at 1000V DC and 32A, has a breathing valve and pre-connected MC4 for easy installation. It meets the IP66 protection class, has a tripping time of less than 3 ms and an operating temperature range of -40°C to 85°C.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
DC Insulator - 2P, 32A, 1000VDC, MC4, IP66
The DC isolator with 4 contacts, for 1000V DC and 32A, has a breathing valve and pre-connected MC4 connectors for easier installation. It has a IP66 protection class, a tripping time shorter than 3ms and operates at temperatures from -40°C to 85°C.
- The first DC switch that complies with AS 60947.3:2018 DC-PV2 standards for global use in PV systems.
- Fireproof, UV resistant and has a locking mechanism for safe operation.
- Pre-wired with MC4 connectors to make installation faster and safer, reducing the chance of wiring errors.
- Fast disconnection time, less than 3ms, ensures effective safety for solar PV systems.
Features | |
|---|---|
| Product type | DC Insulator |
| Model | 2P, 32A, 1000VDC |
Specifications | |
| Number of contacts | 4 |
| Rated voltage (Ue) | DC 1000V |
| Insulation voltage (Ui) | DC 1200V |
| Rated current (In) | 16A / 25A / 32A |
| Maximum current | 32A |
| Rated impulse withstand voltage (Uimp) | 8kV |
| Mechanical life | 15000 cycles |
| Electrical life | 1000 cycles |
| Connection type | M4 (min. 1.2Nm, max. 1.8Nm) |
| Wire cross-sectional area | max. 4-16mm² |
| Disconnection time | < 3ms |
| Protection class | IP66 (housing), IP20 (switch) |
| Dimensions | 188 × 99 × 108 mm |
| Operating temperature | -40°C to 85°C |
Additional information | |
| Certificates | IEC/EN 60947-3, AS/NZS 5033:2014; DC-21B, DC-PV2 |
| Height | 98 mm |
| Length | 75 mm |
| Weight | 350 g |
| Width | 75 mm |
