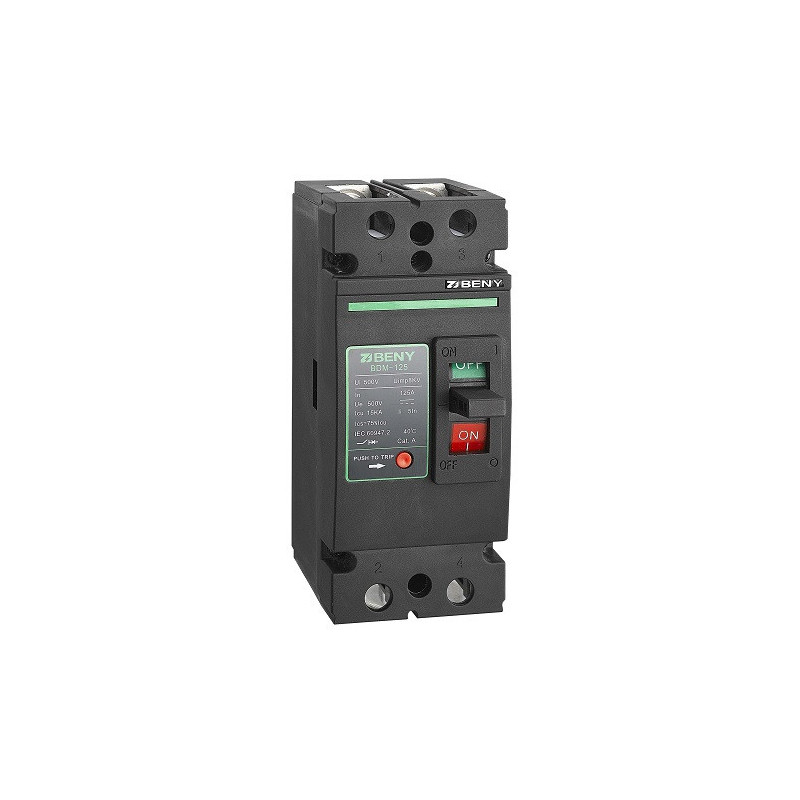

DC Circuit Breaker - 125A 500VDC Molded Case for Solar PV Systems
Product reference:
14-9990000822621
The molded case DC circuit breaker for solar power systems has a rated voltage of 500V and a maximum current of 125A. It provides overload and short circuit protection and operates at temperatures from -40°C to 85°C.
DC Circuit Breaker - 125A 500VDC Molded Case for Solar PV Systems
Product reference:
14-9990000822621
The molded case DC circuit breaker for solar power systems has a rated voltage of 500V and a maximum current of 125A. It provides overload and short circuit protection and operates at temperatures from -40°C to 85°C.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
DC Safety Switch - 2P, 125A, 500VDC
Molded case DC circuit breaker, with nominal voltage 500V and maximum current 125A . Designed for solar PV systems, it provides protection against overload and short circuit, operating at temperatures from - 40°C to 85°C .
- Molded case circuit breaker for solar PV battery energy storage systems and UPS applications.
- The independent design allows charging and discharging without connection direction restrictions.
- Reliable protection against overload, short circuit and rare operating events at extreme temperatures from - 40°C to 85°C .
- Complies with IEC standards DC for circuits up to 500V and 250A, ensuring safety and reliability.
Features | |
|---|---|
| Product Type | DC Safety Switch |
| Model | 2P, 125A, 500VDC |
Specifications | |
| Nominal Voltage (Ue) | DC 500V |
| Insulated Voltage (Ui) | DC 500V |
| Maximum Rated Current (In) | 125A |
| Ultimate Breaking Capacity (Icu) | 15KA |
| Operating Interrupting Capacity (Ics) | 15KA |
| Rated Impulse Voltage (Uimp) | 8kV |
| Mechanical Life Cycles | 10,000 |
| Electrical Life Cycles | 2,000 |
| Security Class | IP20 (connection terminal), IP40 (all sides) |
| Certificates | AS/NZS IEC 60947.2, AS60947-2, TUV-027276-E |
| Dimensions | 150.5 x 64.5 x 119 mm |
| Color | Black |
| Operating Temperature | - 40°C to 85°C |
| Height | 150mm |
| Length | 200mm |
| Weight | 650g |
| Width | 100mm |
