Data Logger - TIGO CCA Kit 900 TS4 Devices Modbus Support Fast Shutdown
Product reference:
14-9990000821198
The TIGO CCA data logger kit can connect up to 900 TS4 devices and supports both wireless and wired networks. It meets NEC fast shutdown requirements and allows monitoring of third-party devices via Modbus.
Data Logger - TIGO CCA Kit 900 TS4 Devices Modbus Support Fast Shutdown
Product reference:
14-9990000821198
The TIGO CCA data logger kit can connect up to 900 TS4 devices and supports both wireless and wired networks. It meets NEC fast shutdown requirements and allows monitoring of third-party devices via Modbus.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days

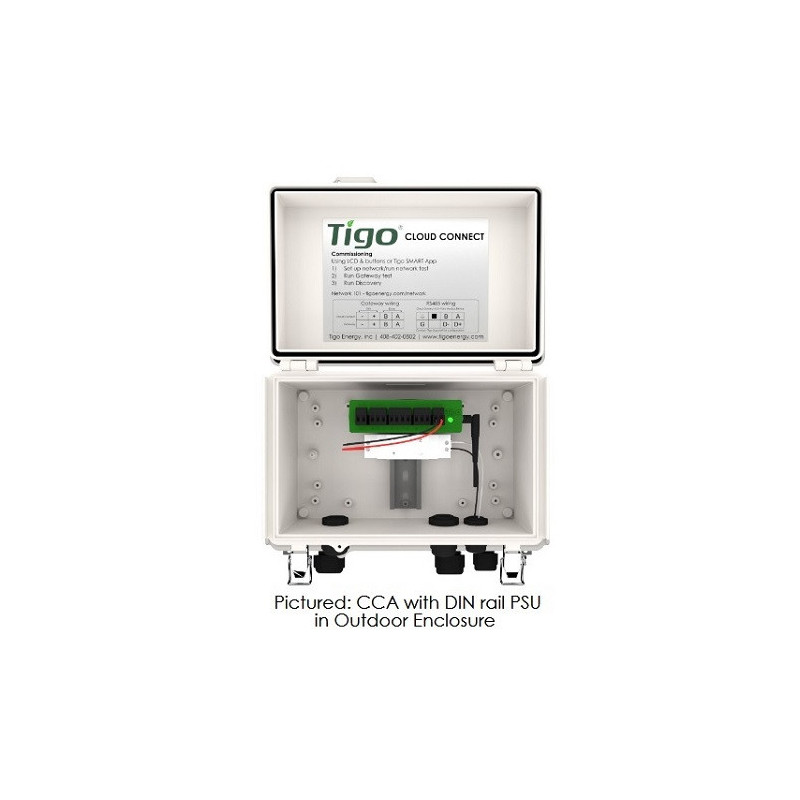

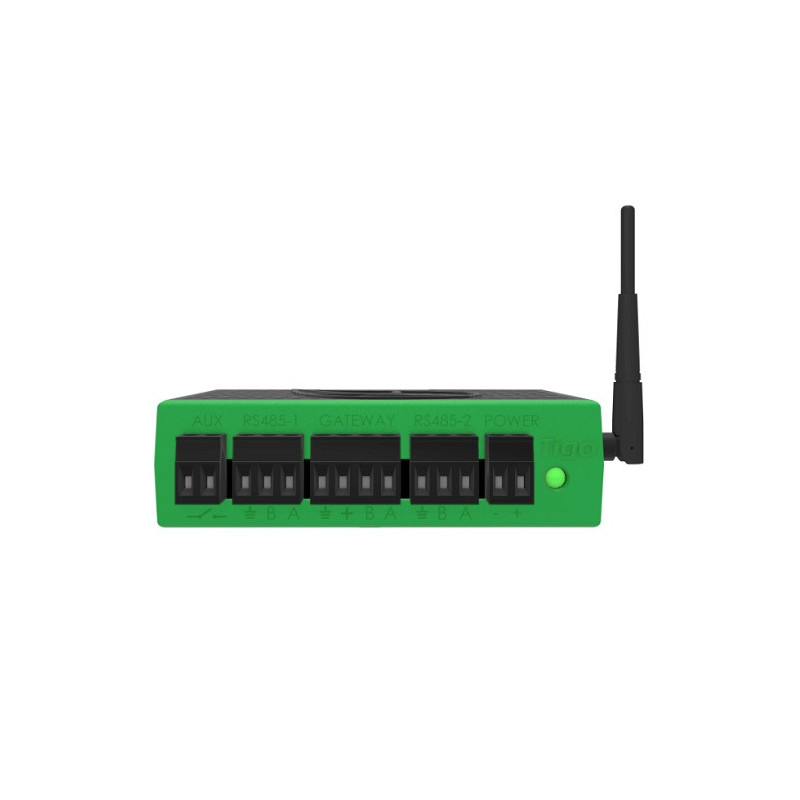

Data logger Tigo CCA (Cloud Connect Advanced) kit
The TIGO CCA data logger kit connects up to 900 TS4 devices and supports both wireless and wired networks. It meets NEC fast shutdown requirements and allows monitoring of third-party devices via Modbus.
- Connects up to 900 TS4 devices and 7 TAP devices for comprehensive monitoring.
- Meets NEC quick disconnect requirements, ensuring safety and compliance.
- Supports both wireless and wired networks, providing flexibility in installation options.
- Allows module level monitoring and quick access to system data for installers.
Features | |
|---|---|
| Product type | Data logger |
| Model | TIGO CCA kit |
Specifications | |
| Input voltage range | 10V-25V DC |
| Supply voltage range | 100V-240V AC |
| Power | 3W-7W |
| Software | Tigo SMART, Android, iOS |

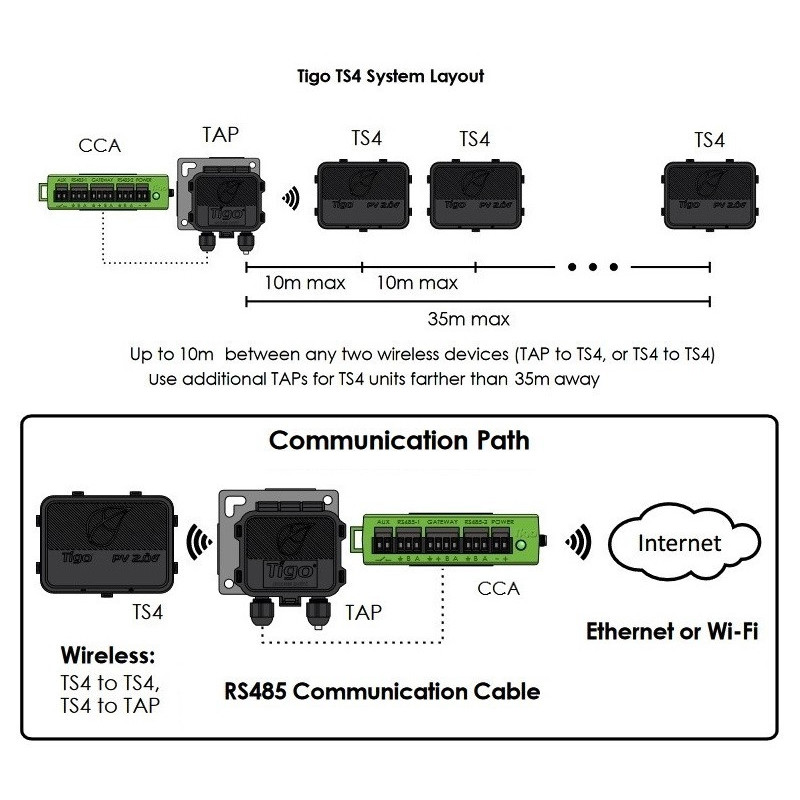

| Connection | Wireless with TS4 devices, RS485 cable with TAP |
| Maximum number of TS4 devices supported | 900 |
| Maximum number of supported TAP devices | 7 |
| Quick Shutdown Standards | NEC 2014, 2017 / NEC 690.12 |
| LED indicators | Yes |
| Installation | DIN rail mounting box |
| Cooling | Natural convection |
| Working temperature | -20°C ~ +70°C |
| Box security class | IP68, NEMA 4R |
| Weight (CCA only) | 126g |

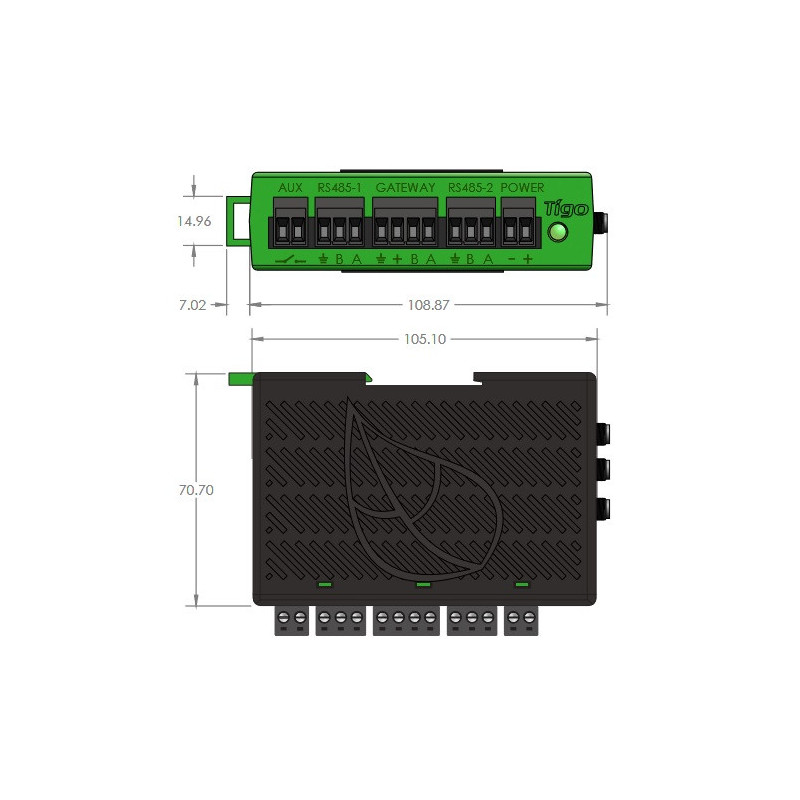

| Dimensions | 31 x 115.51 x 71.54 mm |
| Length | 200mm |
| Height | 150mm |
| Width | 100mm |
| Weight | 450 g |
