CyberPower VP700EILCD uninterruptible power supply (UPS)

CyberPower VP700EILCD. UPS topology: Line-Interactive, Output power capacity: 0.7 kVA, Output power: 390 W. AC outlet types: C13 coupler, AC outlets quantity: 6 AC outlet(s), Cabling technology: 10/100/1000Base-T(X). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 1 min, Typical backup time at half load: 10 min. Form factor: Tower, Product colour: Black, Housing material: Plastic. Compliance certificates: RoHS, Certification: CE, EAC

CyberPower VP700EILCD offers home and office users a reliable battery backup and safeguards office PCs and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS™ Technology to improve operating efficiency and to minimize energy consumption, users can enjoy significant energy cost savings over conventional UPS systems. The UPS provides Automatic Voltage Regulation (AVR) to maintain safe voltage for connected equipment.

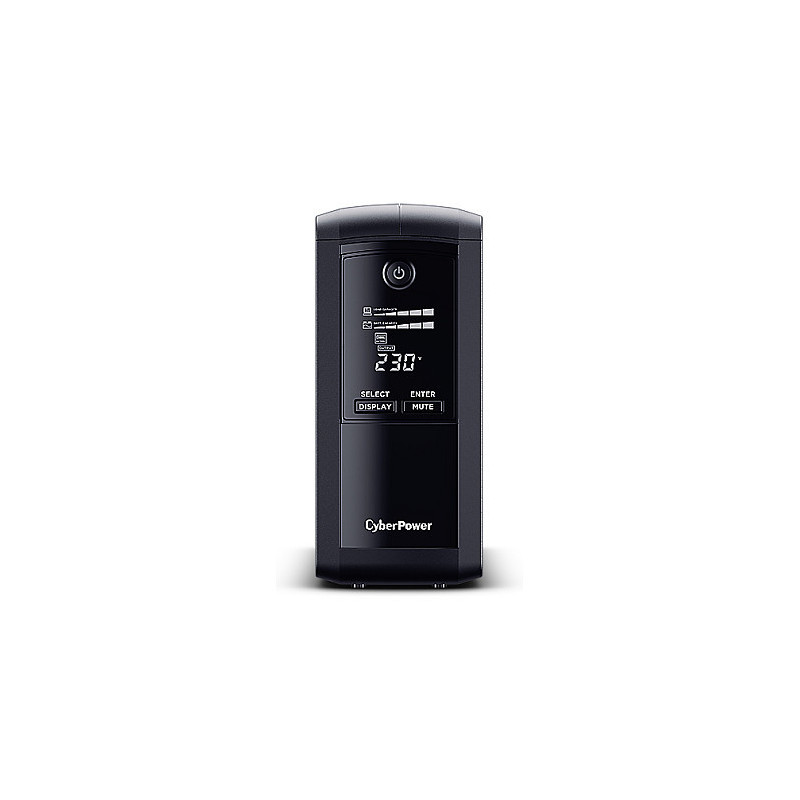

The UPS provides multifunctional LCD readout to display clear power and battery conditions. The product features data line protection with high-speed transmission to safeguard phones, network and communication equipment against surge/spike as well as supply 1Gbps speed to transmit data. The UPS is also compatible with PowerPanel® Power Management Software to achieve real-time monitoring and configuration.

Features

UPS topology: Line-Interactive
Output power capacity: 0.7 kVA
Output power: 390 W
Waveform: Sine
Input operation voltage (min): 167 V
Input operation voltage (max): 295 V
Input frequency: 50/60 Hz
Output operation voltage (min): 230 V
Output operation voltage (max): 230 V
Output frequency: 50/60 Hz
Feature: Automatic Voltage Regulation (AVR)
Maximum current: 3.04 A
Surge energy rating: 450 J
Response time: 4 ms
Feature: EMI/RFI noise filtering
Feature: Surge protection
Feature: Audible alarm(s)
Audible alarm modes: Fault, Low battery alarm, Overload alarm

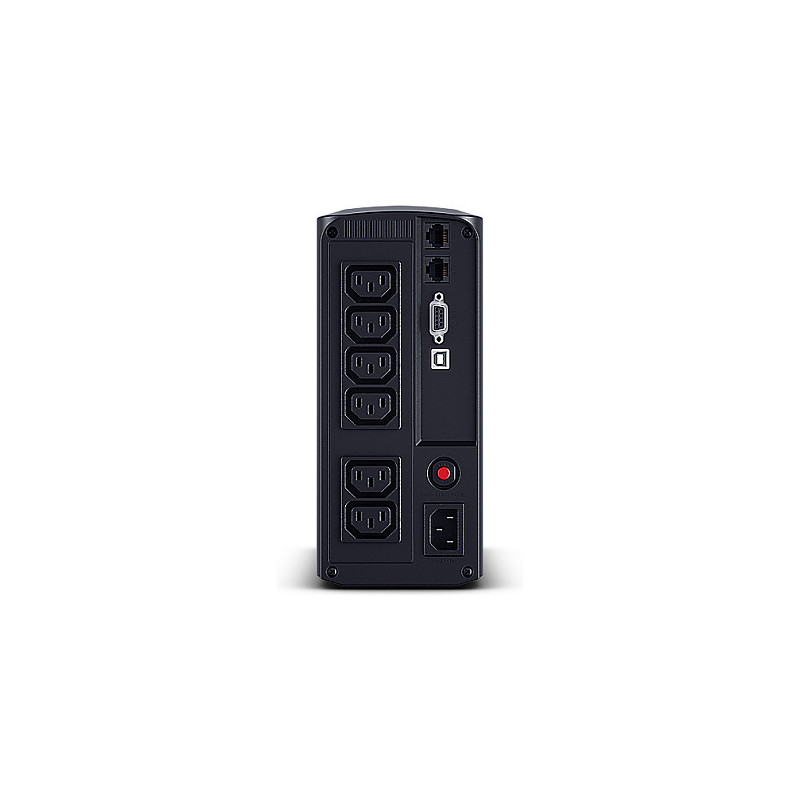

Ports & interfaces

AC outlet types: C13 coupler
AC outlets quantity: 6 AC outlet(s)
Feature: USB port
Feature: Serial interface
Modem (RJ-11) ports: 1
Ethernet LAN (RJ-45) ports: 1
Cabling technology: 10/100/1000Base-T(X)

Battery

Battery technology: Sealed Lead Acid (VRLA)
Typical backup time at full load: 1 min
Typical backup time at half load: 10 min

Design

Form factor: Tower
Housing material: Plastic
Product colour: Black
Display type: LCD
LED indicators: Operation

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 50 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 90%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 3000 m

Certificates

Compliance certificates: RoHS
Certification: CE, EAC

Packaging content

Cables included: USB cable

Weight & dimensions

Width: 100 mm
Depth: 260 mm
Height: 227 mm
Weight: 5.14 kg

Packaging data

Package width: 300 mm
Package depth: 143 mm
Package height: 335 mm
Package weight: 5.8 kg

Logistics data

Harmonized System (HS) code: 8504408590
Country of origin: China
