CyberPower VP1000ELCD uninterruptible power supply (UPS)

CyberPower VP1000ELCD. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 550 W. AC outlet types: Type F, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 1 min, Typical backup time at half load: 9 min. Form factor: Tower, Product colour: Black, Housing material: Plastic. Compliance certificates: CE, RoHS, Certification: CE, RCM

VP1000ELCD

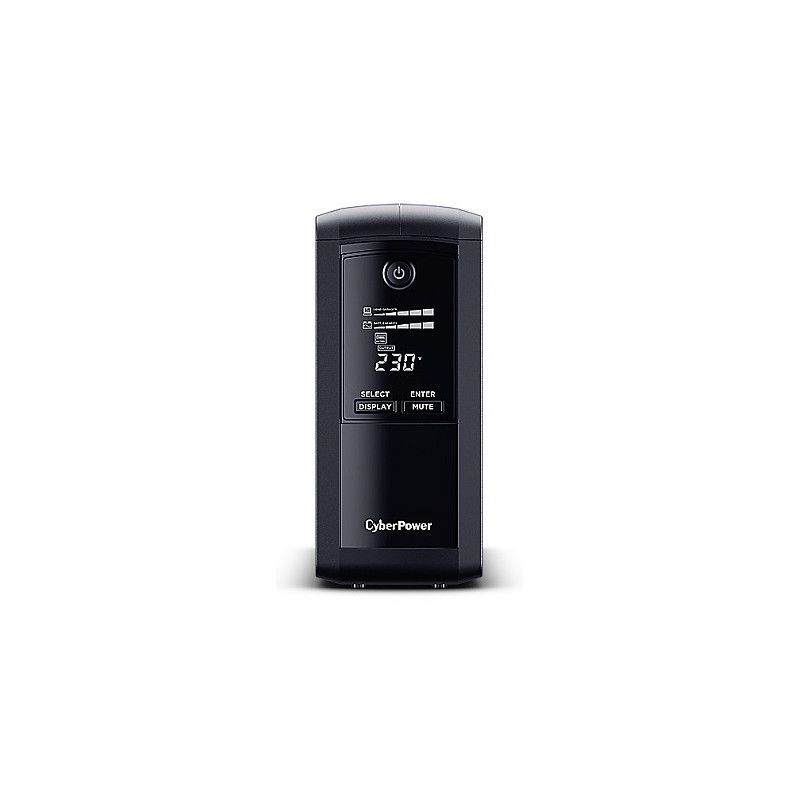

CyberPower VP1000ELCD offers home and office users a reliable battery backup and safeguards office PCs and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS Technology to improve operating efficiency and to minimize energy consumption, users can enjoy significant energy cost savings over conventional UPS systems. The UPS provides Automatic Voltage Regulation (AVR) to maintain safe voltage for connected equipment. The UPS provides multifunctional LCD readout to display clear power and battery conditions. The product features data line protection with high-speed transmission to safeguard phones, network and communication equipment against surge/spike as well as supply 1Gbps speed to transmit data. The UPS is also compatible with PowerPanel Power Management Software to achieve real-time monitoring and configuration.

Features

UPS topology: Line-Interactive
Output power capacity: 1 kVA
Output power: 550 W
Waveform: Sine
Input operation voltage (min): 167 V
Input operation voltage (max): 295 V
Input frequency: 50/60 Hz
Output operation voltage (max): 230 V
Output frequency: 50/60 Hz
Feature: Automatic Voltage Regulation (AVR)
Maximum current: 4.35 A
Surge energy rating: 450 J
Response time: 4 ms
Heat dissipation: 23.9 BTU/h
Number of input phases: 1
Number of output phases: 1
Feature: EMI/RFI noise filtering
Feature: Surge protection
Power protection features: Over voltage
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Fault, Low battery alarm, Overload alarm

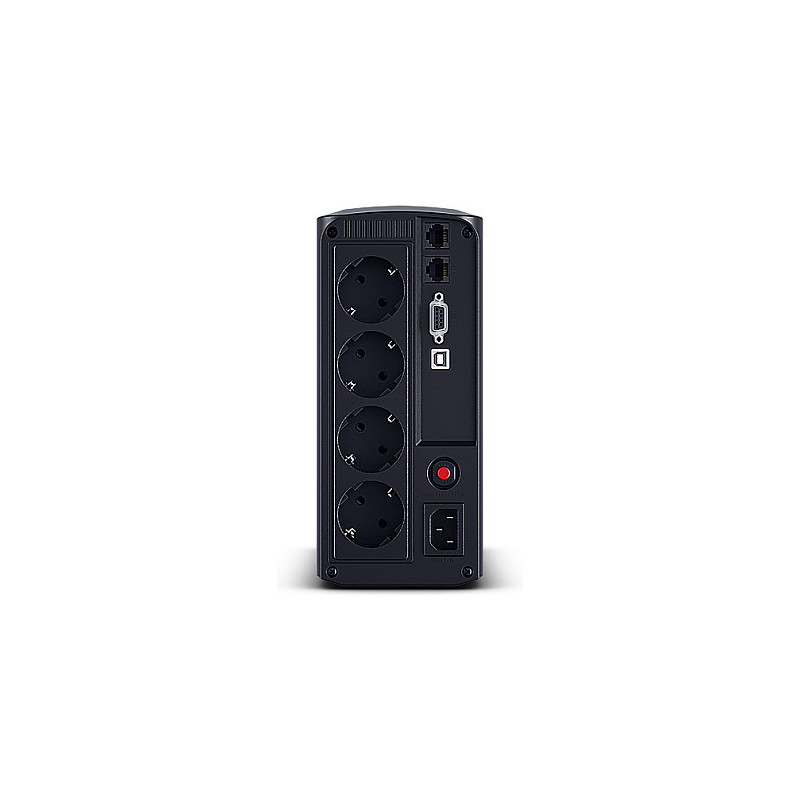

Ports & interfaces

AC outlet types: Type F
Power plug: C14 coupler
AC outlets quantity: 4 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 1
USB port type: USB Type-B
Feature: Serial interface
Serial interface type: RS-232
Serial ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
Cabling technology: 10/100/1000Base-T(X)

Battery

Battery technology: Sealed Lead Acid (VRLA)
Typical backup time at full load: 1 min
Typical backup time at half load: 9 min
Battery recharge time: 8 h

Design

Form factor: Tower
Housing material: Plastic
Cable length: 1.5 m
Product colour: Black
Display type: LCD
LED indicators: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 50 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 90%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 3000 m

Certificates

Compliance certificates: CE, RoHS
Certification: CE, RCM

Packaging content

Cables included: USB cable
Feature: Manual

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 100 mm
Depth: 260 mm
Height: 227 mm
Weight: 6.23 kg

Packaging data

Package width: 300 mm
Package depth: 143 mm
Package height: 335 mm
Package weight: 6.78 kg

Logistics data

Harmonized System (HS) code: 8504408590
Country of origin: China
