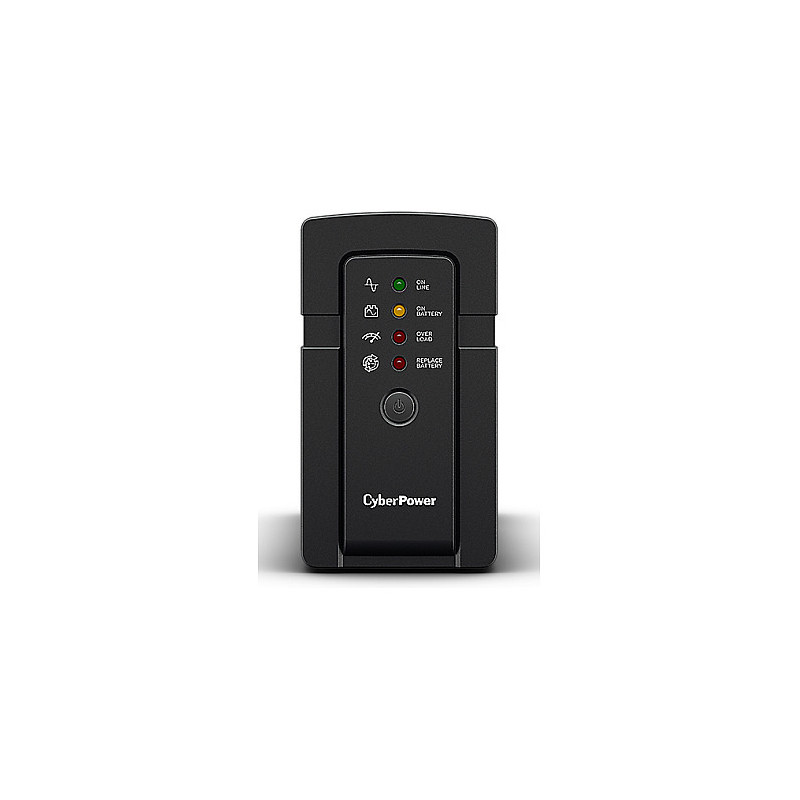

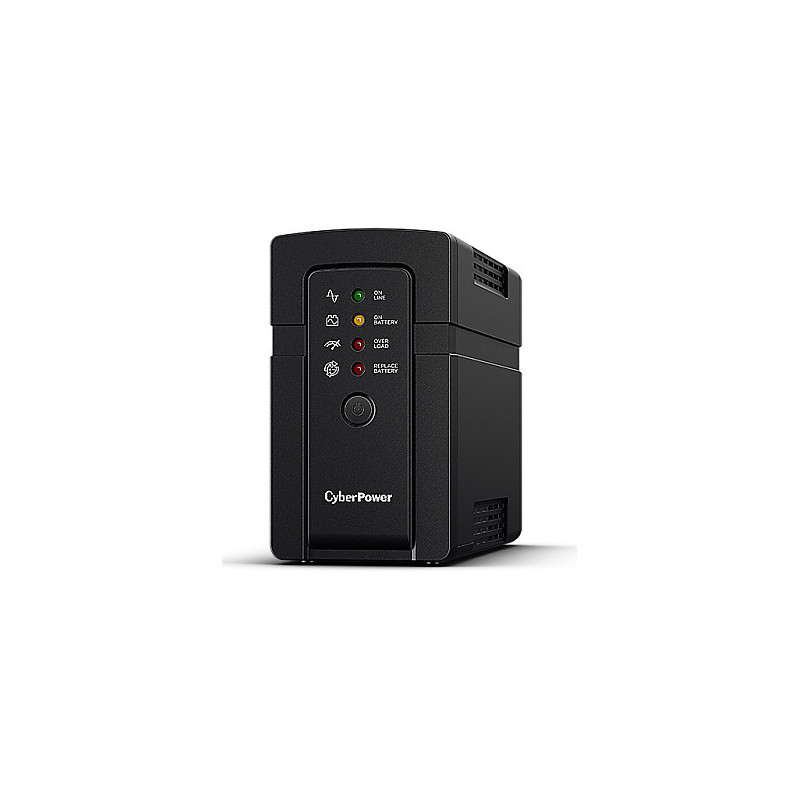

CyberPower RT650EI uninterruptible power supply (UPS)

CyberPower RT650EI. UPS topology: Standby (Offline), Output power capacity: 0.65 kVA, Output power: 400 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 5 min, Typical backup time at half load: 15 min. Form factor: Tower, Product colour: Black, Housing material: Plastic. Compliance certificates: RoHS, Certification: CE

CyberPower RT650EI is perfect for POS, kiosks and workstations. The RT Series adopts standby technology and provides battery backup and surge protection for kiosk computer systems, credit card machines and receipt printers. The size of the UPS allows it to easily fit under desks or other tight spaces, while its internal battery provides long lasting backup power to connected equipment.

FEATURES

- Standby UPS Topology
- Energy Saving Technology
- Simulated Sine Wave Output
- Surge and Spike Protection
- Phone/ Fax/ Modem/ DSL/ Network Protection
- PowerPanel® Management Software
- Tower Form Factor

Features

UPS topology: Standby (Offline)
Output power capacity: 0.65 kVA
Output power: 400 W
Waveform: Sine
Input operation voltage (min): 192 V
Input operation voltage (max): 264 V
Input frequency: 50/60 Hz
Output operation voltage (min): 230 V
Output operation voltage (max): 230 V
Output frequency regulation: 50/60 Hz
Maximum current: 5 A
Surge energy rating: 810 J
Response time: 10 ms
Number of input phases: 1
Number of output phases: 1
Output voltage Total Harmonic Distortion (THD): 5%
Feature: EMI/RFI noise filtering
Feature: Surge protection
Power protection features: Overload
Feature: Audible alarm(s)
Audible alarm modes: Fault, Low battery alarm, Overload alarm

Ports & interfaces

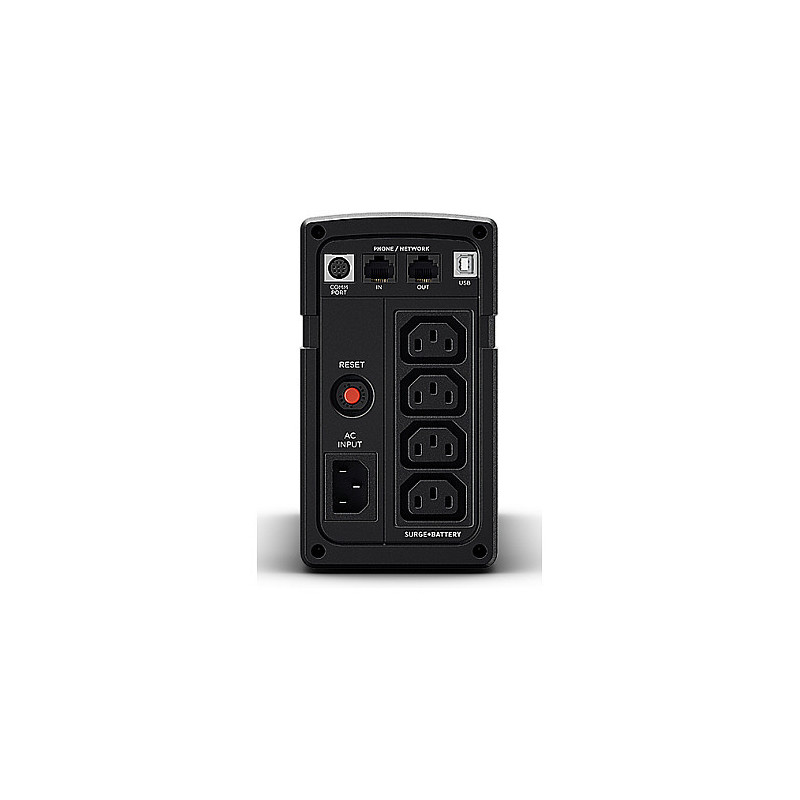

AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 4 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 1
Feature: Serial interface
Serial interface type: RS-232
RS-232 ports: 1
Modem (RJ-11) ports: 1
Ethernet LAN (RJ-45) ports: 1

Battery

Battery technology: Sealed Lead Acid (VRLA)
Number of batteries supported: 1
Typical backup time at full load: 5 min
Typical backup time at half load: 15 min
Battery recharge time: 8 h
Feature: Hot-swap battery

Design

Form factor: Tower
Housing material: Plastic
Cable length: 1.83 m
Product colour: Black
LED indicators: Status, Battery replacement

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: RoHS
Certification: CE

Packaging content

Cables included: Input power cable, USB cable

Weight & dimensions

Width: 91.4 mm
Depth: 279.4 mm
Height: 165.1 mm
Weight: 4.58 kg

Packaging data

Bundled software: PowerPanel Personal Edition
Package width: 380 mm
Package depth: 155 mm
Package height: 220 mm
Package weight: 5.3 kg

Logistics data

Harmonized System (HS) code: 85078000
Country of origin: China
