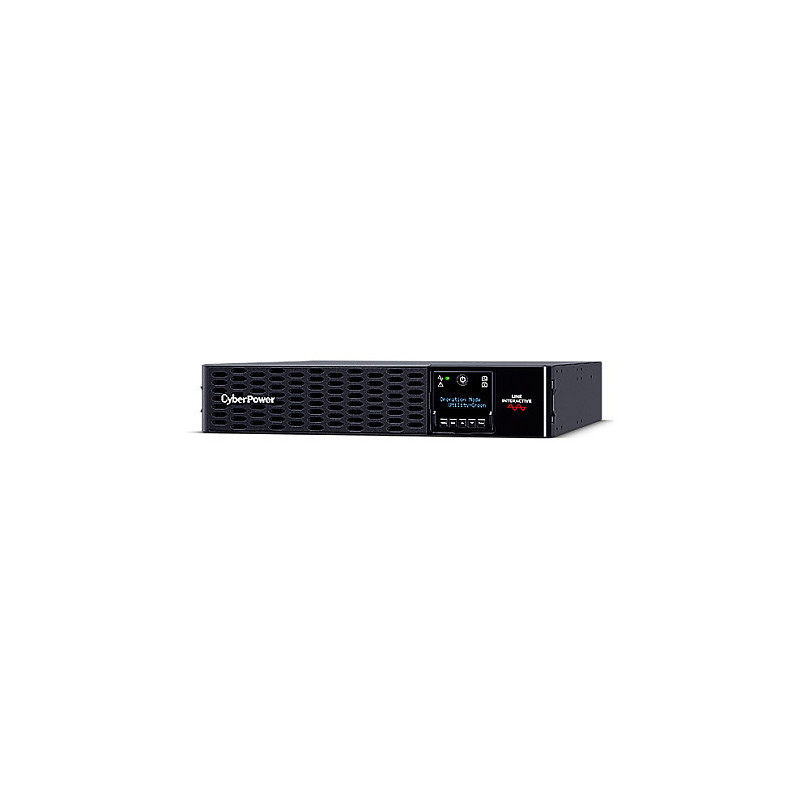

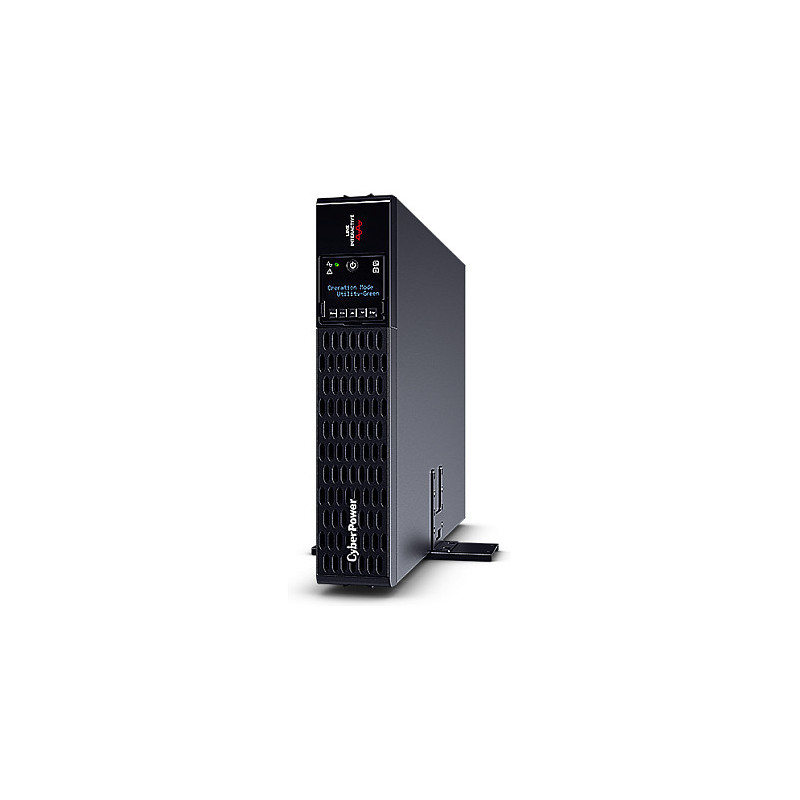

CyberPower PR2200ERTXL2UACN uninterruptible power supply (UPS)

CyberPower PR2200ERTXL2UACN. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 2000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 5.6 min, Typical backup time at half load: 16 min. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS, CE, Federal Communications Commission (FCC), cUL, UL, VCCI

PR2200ERTXL2UACN

CyberPower PR2200ERTXL2UACN with rackmount design guarantees power backup protection for home theater systems, multimedia devices, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. The UPS adopts line-interactive topology with Automatic Voltage Regulation (AVR) function, and offers stabilized Pure Sine Wave output to ensure high power quality. The UPS's output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage. The quick charging technology allows fast and safe battery charging. Its multi-functional matrix LCD supports intuitive operation and quick configuration. The LCD panel is also rotatable to meet installation requirements.

Features

UPS topology: Line-Interactive
Output power capacity: 2.2 kVA
Output power: 2000 W
Waveform: Pure sine
Input operation voltage (min): 131 V
Input operation voltage (max): 302 V
Input frequency: 50/60 Hz
Output operation voltage (min): 200 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Feature: Automatic Voltage Regulation (AVR)
Surge energy rating: 2430 J
Response time: 6 ms
Heat dissipation: 135 BTU/h
Output power factor: 1
Feature: Emergency Power Off (EPO)
Feature: EMI/RFI noise filtering
Noise level: 57.5 dB
Feature: Surge protection

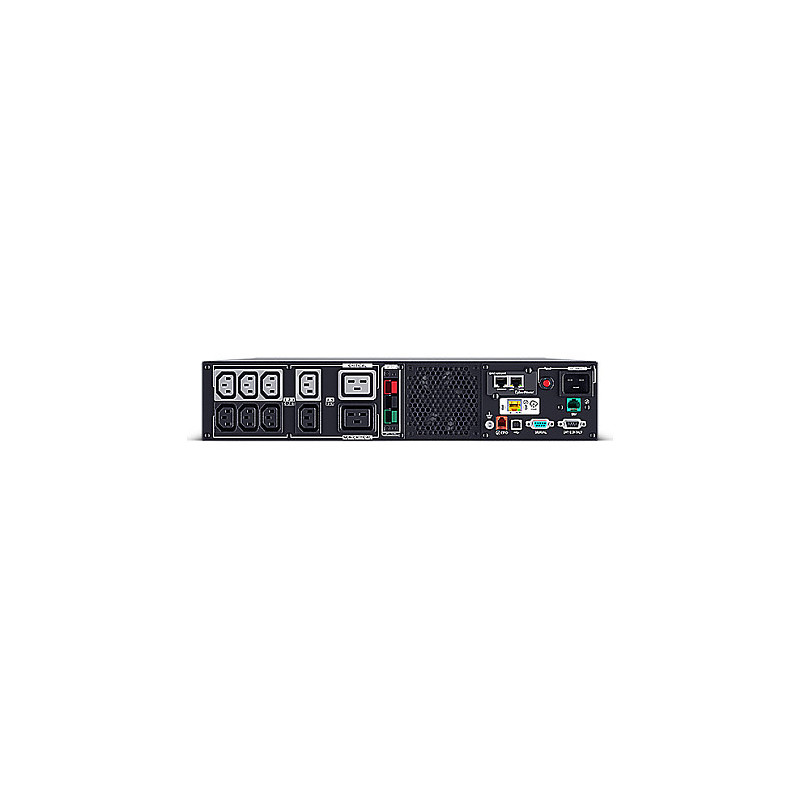

Ports & interfaces

AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
AC outlets quantity: 10 AC outlet(s)
Feature: USB port
USB port type: USB Type-B
Feature: Serial interface
Serial interface type: RS-232
Serial ports quantity: 1
Ethernet LAN (RJ-45) ports: 1

Battery

Battery technology: Sealed Lead Acid (VRLA)
Typical backup time at full load: 5.6 min
Typical backup time at half load: 16 min
Battery recharge time: 3 h
Feature: Hot-swap battery
Replacement battery cartridge: RBP0130

Design

Form factor: Rackmount
Rack capacity: 2U
Product colour: Black
Display type: LCD
LED indicators: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): 0 - 95 °C

Certificates

Compliance certificates: RoHS, CE, Federal Communications Commission (FCC), cUL, UL, VCCI

Weight & dimensions

Width: 433 mm
Depth: 630 mm
Height: 86.5 mm
Weight: 42 kg
