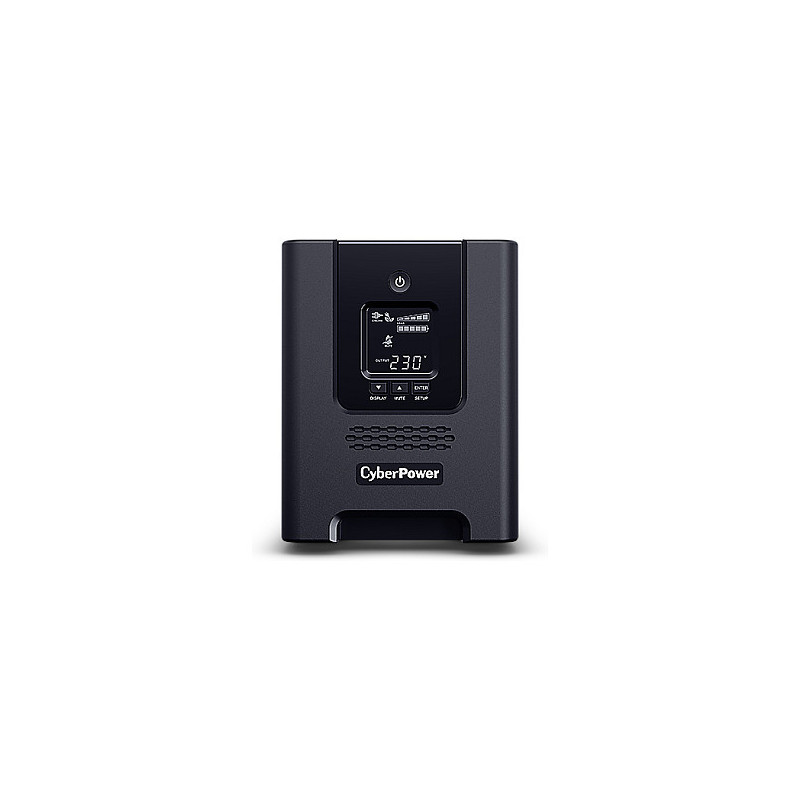

CyberPower PR2200ELCDSXL uninterruptible power supply (UPS)

CyberPower PR2200ELCDSXL. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 2.5 min, Typical backup time at half load: 9.5 min. Form factor: Tower, Product colour: Black, Cable length: 3.05 m. Compliance certificates: CE, RoHS

CyberPower PR2200ELCDSXL Line-Interactive UPS, with seamless Pure Sine Wave, provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. It's typically integrated in the back office, server room, and data center environment.

The UPS can be locally managed via USB or serial ports, or remotely managed via an SNMP Card (an optional Remote Management Card), allowing administrators and users unsurpassed flexibility to remotely access each UPS through the network to perform real-time monitoring, UPS configurations, and scheduled system shutdowns by using PowerPanel Management software. The product is also certified to be interoperable and compatible with Cisco, which helps to achieve the best energy performance possible.

Features

UPS topology: Line-Interactive
Output power capacity: 2.2 kVA
Output power: 1980 W
Waveform: Pure sine
Input operation voltage (min): 151 V
Input operation voltage (max): 301 V
Input frequency: 50/60 Hz
Output operation voltage (min): 230 V
Output operation voltage (max): 230 V
Output frequency: 50/60 Hz
Feature: Automatic Voltage Regulation (AVR)
Maximum current: 16 A
Surge energy rating: 405 J
Response time: 4 ms
Number of input phases: 1
Number of output phases: 1
Output power factor: 0.9
Power Factor Correction (PFC) type: Active
Feature: Emergency Power Off (EPO)
Feature: EMI/RFI noise filtering
Feature: Surge protection
Power protection features: Overload
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Fault, Low battery alarm, Overload alarm

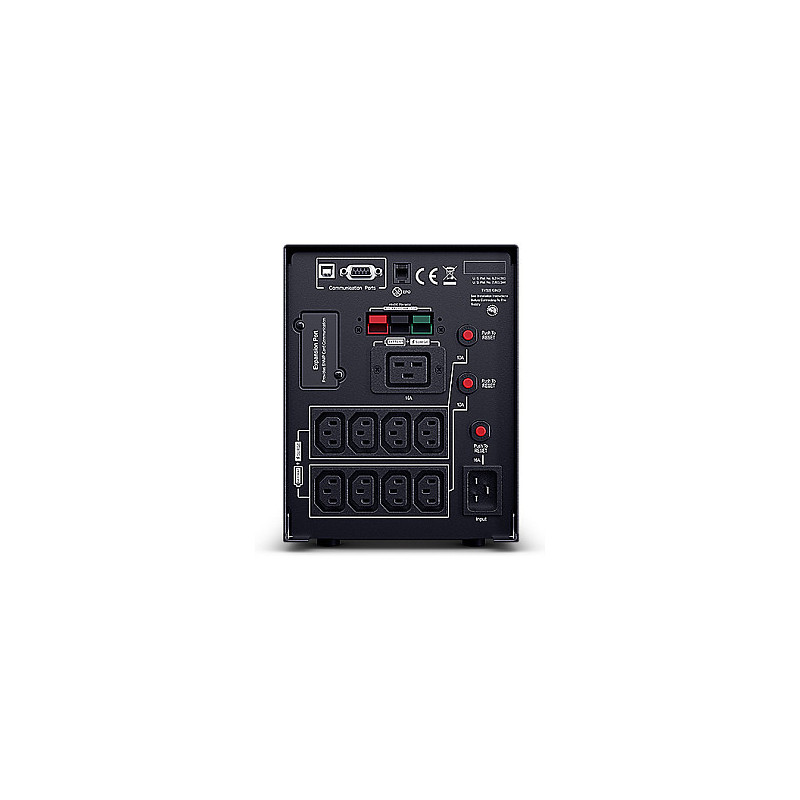

Ports & interfaces

AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
AC outlets quantity: 9 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 1
USB port type: USB Type-B
Feature: Serial interface
Serial interface type: RS-232
Serial ports quantity: 1
RS-232 ports: 1
Feature: Emergency Power Off (EPO) connector

Battery

Battery technology: Sealed Lead Acid (VRLA)
Number of batteries supported: 1
Typical backup time at full load: 2.5 min
Typical backup time at half load: 9.5 min
Battery recharge time: 8 h
Feature: Hot-swap battery

Design

Form factor: Tower
Cable length: 3.05 m
Product colour: Black
Control type: Buttons
Display type: LCD
LED indicators: Power

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: CE, RoHS

Packaging content

Cables included: Power load cable, Serial, USB cable
Feature: Manual

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 170 mm
Depth: 432 mm
Height: 221 mm
Weight: 25.5 kg

Packaging data

Package width: 316 mm
Package depth: 579 mm
Package height: 360 mm
Package weight: 27 kg

Logistics data

Harmonized System (HS) code: 8504408590
Country of origin: China

Other features

Battery type: RBP0116
