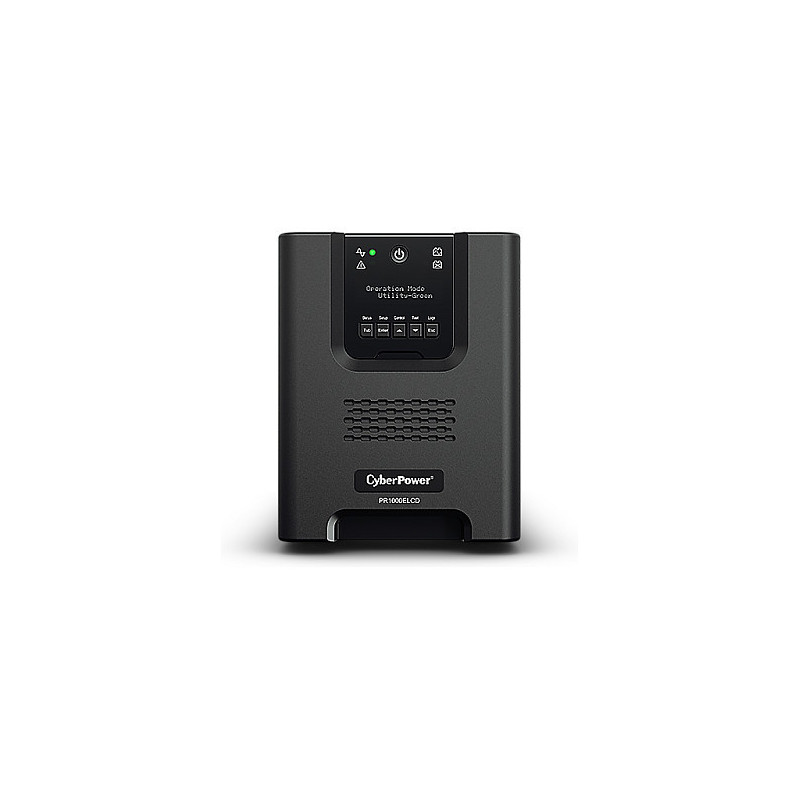

CyberPower PR1000ELCD uninterruptible power supply (UPS)

CyberPower PR1000ELCD. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 900 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 4 min, Typical backup time at half load: 16 min. Form factor: Tower, Product colour: Black, Housing material: Metal. Certification: CE, EAC, RCM, RoHS

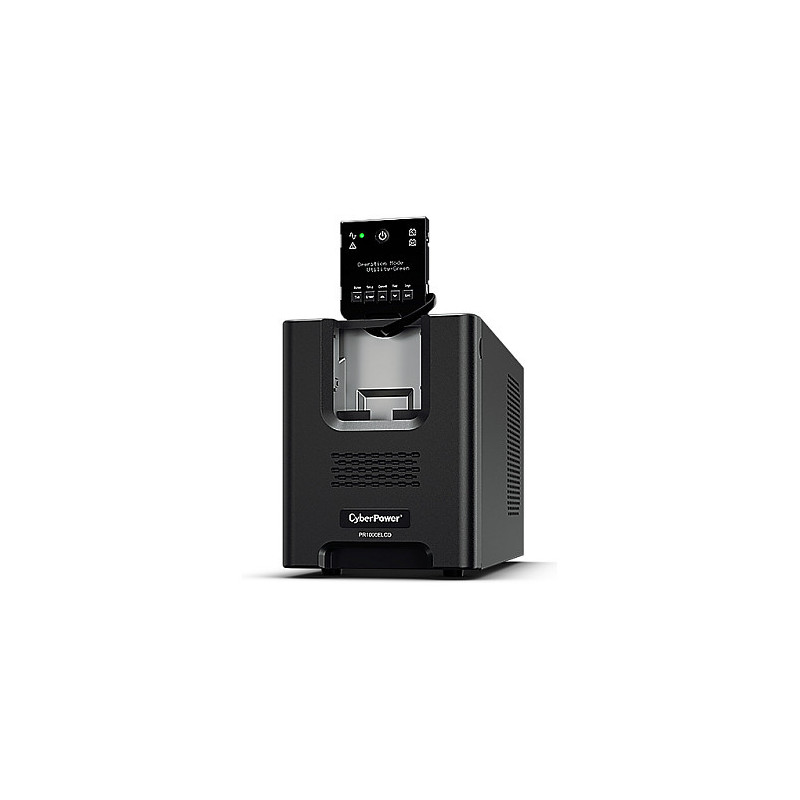

The Professional Tower Series UPS provides advanced level of power protection to servers, telecom equipments, VOIP, internet working hardware and other mission-critical applications. Featuring Pure Sinewave output and Automatic Voltage Regulation (AVR) stabilizes the AC signal and maintains a safe voltage, it allows the UPS to maintain safe power levels for the connected equipment without resorting to battery power. Its detachable, remote-controllable Multifunction LCD Readout can be mounted on the wall or in the control center nearby to provide highest convenience and flexibility under different management scenarios.

The optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. Together with the included PowerPanel® Business Edition management software, it could provide corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.

Features

UPS topology: Line-Interactive
Output power capacity: 1 kVA
Output power: 900 W
Waveform: Pure sine
Input operation voltage (min): 151 V
Input operation voltage (max): 301 V
Input frequency: 50/60 Hz
Output operation voltage (min): 230 V
Output operation voltage (max): 230 V
Output frequency: 50/60 Hz
Feature: Automatic Voltage Regulation (AVR)
Surge energy rating: 405 J
Response time: 4 ms
Power factor: 0.9
Feature: EMI/RFI noise filtering
Feature: Surge protection
Power protection features: Overload

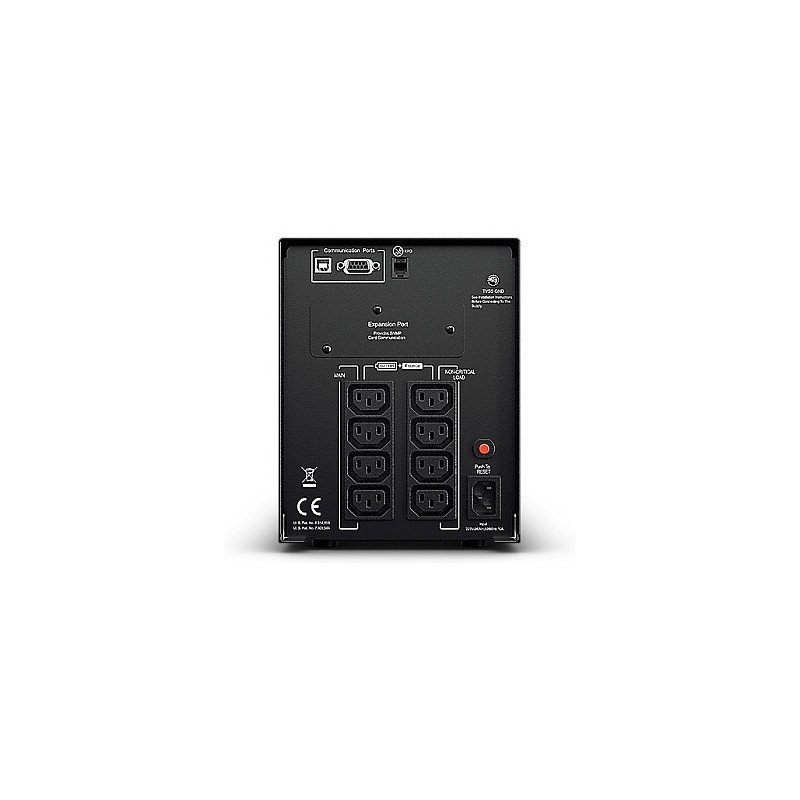

Ports & interfaces

AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 8 AC outlet(s)
Number of output IEC jumpers: 1
USB 2.0 ports quantity: 1
Serial ports quantity: 1

Battery

Battery technology: Sealed Lead Acid (VRLA)
Number of batteries supported: 1
Typical backup time at full load: 4 min
Typical backup time at half load: 16 min
Battery recharge time: 8 h
Feature: Hot-swap battery

Design

Form factor: Tower
Housing material: Metal
Product colour: Black
Display type: LCD
LED indicators: Error, Operation

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Certification: CE, EAC, RCM, RoHS

Packaging content

Cables included: USB cable

Weight & dimensions

Width: 170 mm
Depth: 432 mm
Height: 221 mm
Weight: 18.9 kg

Packaging data

Package width: 316 mm
Package depth: 579 mm
Package height: 360 mm
Package weight: 21.3 kg

Logistics data

Harmonized System (HS) code: 8504408590
Country of origin: China

Other features

Compatible operating systems: Windows 7 / Vista / XP / 2000, Server 2003 / 2008, Linux
Feature: Overload protection
