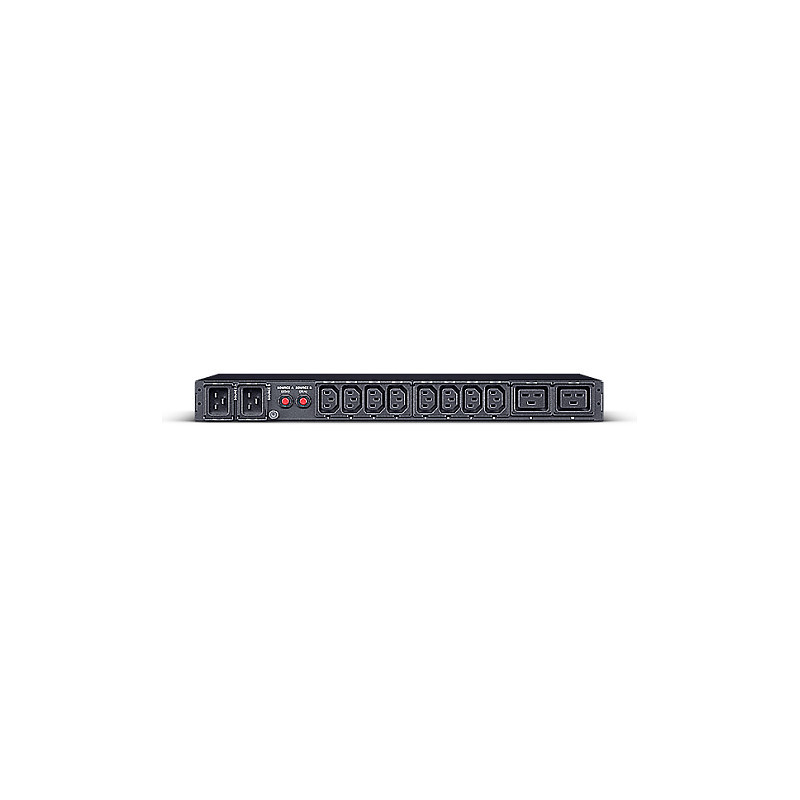

CyberPower PDU24005 power distribution unit (PDU)

CyberPower PDU24005. PDU types: Metered, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 10 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler. LED indicators: Link, Status, Cable length: 3.05 m. Nominal input voltage: 200 - 240 V, Maximum current: 12 A, AC input frequency: 50 / 60 Hz. Compliance certificates: CB, CE, Federal Communications Commission (FCC), RoHS, UL, Certification: FCC Class A, UL62368, EN 55032 Class A, IEC 62368

CyberPower PDU24005 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source to ensure continuous operation.

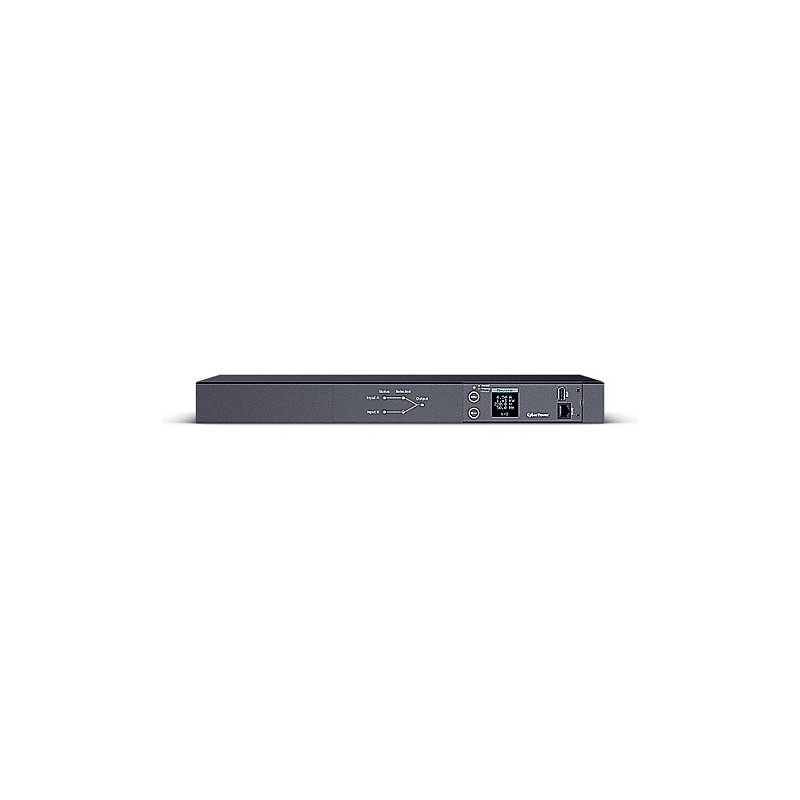

The unit comes with a hot-swappable multifunction readout that displays real-time vitals including current, input voltage, power consumption levels in amps and watts. The digital LCD display is also color configurable, allowing easy maintenance and monitoring of the ATS PDU. Users can change LCD's colors to easily categorize devices between multiple machines in server room and IT environments. The firmware can also be conveniently upgraded via the USB port, ensuring the latest features and updates are available for users.

The product can be connected to a PC through the serial port to perform local control of the ATS PDU.

Design

PDU types: Metered
Type: Single-phase
Rack capacity: 1U
Mounting: Horizontal
Housing material: Steel
Product colour: Black
Display: LCD

Ports & interfaces

AC outlets quantity: 10 AC outlet(s)
Power plug: C20 coupler
AC outlet types: C13 coupler, C19 coupler
Serial ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB ports quantity: 1

Features

LED indicators: Link, Status
Cable length: 3.05 m

Management features

Feature: Firmware upgradeable

Power

Nominal input voltage: 200 - 240 V
AC input frequency: 50 / 60 Hz
Maximum current: 12 A
Nominal output voltage: 200 - 240 V
Power protection features: Overload
Feature: Circuit breaker

Certificates

Compliance certificates: CB, CE, Federal Communications Commission (FCC), RoHS, UL
Certification: FCC Class A, UL62368, EN 55032 Class A, IEC 62368

Sustainability

Feature: Sustainability compliance

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -15 - 95 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 4000 m
Non-operating altitude: 0 - 15000 m
Operating temperature (T-T): 32 - 113 °F

Weight & dimensions

Width: 433 mm
Depth: 215 mm
Height: 44 mm
Weight: 3.2 kg

Packaging content

Packaging content: PDU24005, User's Manual, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit, Power Cord, Serial Cable

Packaging data

Package weight: 6 kg
Package width: 550 mm
Package depth: 398 mm
Package height: 125 mm

Logistics data

Warranty period: 2 year(s)
