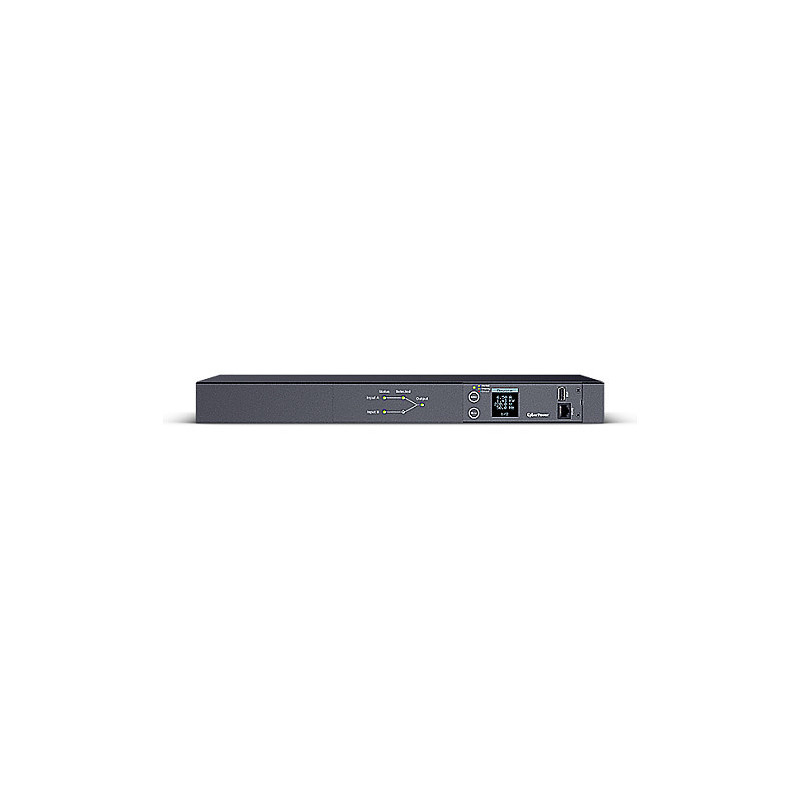

CyberPower PDU24004 power distribution unit (PDU)

CyberPower PDU24004. PDU types: Managed, Switched, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 12 AC outlet(s), AC outlet types: C13 coupler, Power plug: IEC 60320. Cable length: 3.05 m. Monitoring: Current, Power, Voltage. Nominal input voltage: 200 - 240 V, Maximum current: 12 A, AC input frequency: 50 - 60 Hz

CyberPower PDU24004 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source to ensure continuous operation.

The unit comes with a hot-swappable multifunction readout that displays real-time vitals including current, input voltage, power consumption levels in amps and watts. The digital LCD display is also color configurable, allowing easy maintenance and monitoring of the ATS PDU. Users can change LCD's colors to easily categorize devices between multiple machines in server room and IT environments. The firmware can also be conveniently upgraded via the USB port, ensuring the latest features and updates are available for users.

Design

PDU types: Managed, Switched
Type: Single-phase
Form factor: Rackmount
Rack capacity: 1U
Mounting: Horizontal
Housing material: Steel
Product colour: Black
Display: LCD
Feature: On/off switch

Ports & interfaces

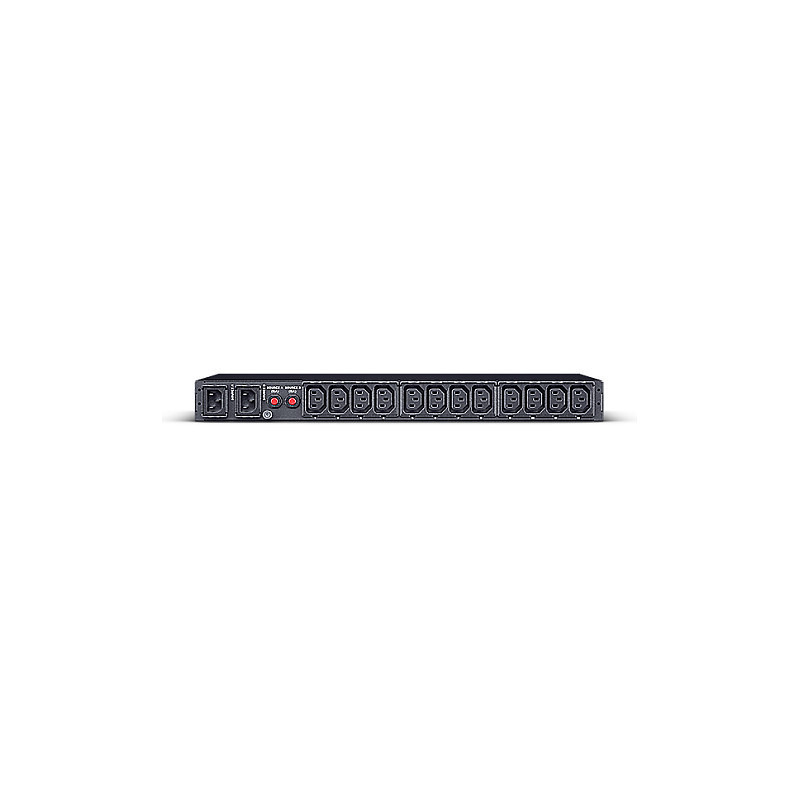

AC outlets quantity: 12 AC outlet(s)
Power plug: IEC 60320
AC outlet types: C13 coupler
Ethernet LAN (RJ-45) ports: 1
USB ports quantity: 1

Features

Feature: Daisy chain
LED indicators: Yes
Cable length: 3.05 m

Management features

Monitoring: Current, Power, Voltage

Power

Nominal input voltage: 200 - 240 V
AC input frequency: 50 - 60 Hz
Maximum current: 12 A

Certificates

Compliance certificates: CE, RoHS
Certification: CE, FCC Class A, UL62368, EN 55032 Class A, IEC 62368

Sustainability

Feature: Sustainability compliance

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -15 - 55 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 15000 m

Weight & dimensions

Width: 433 mm
Depth: 215 mm
Height: 44 mm
Weight: 3.5 kg

Packaging data

Package weight: 5.7 kg
Package width: 550 mm
Package depth: 398 mm
Package height: 125 mm

Logistics data

Country of origin: China
