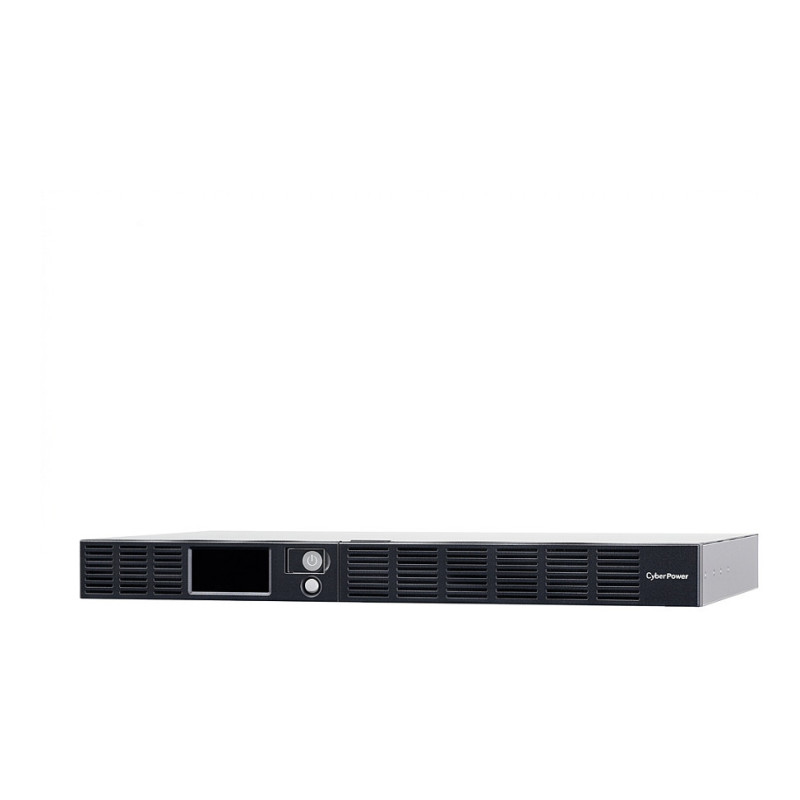

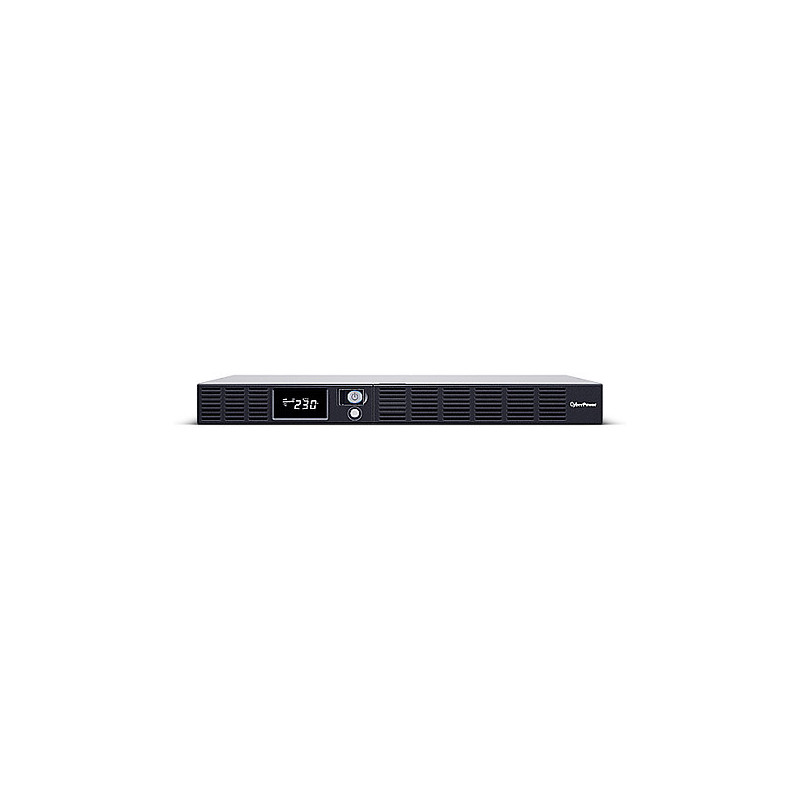

CyberPower OR1500ERM1U uninterruptible power supply (UPS)

CyberPower OR1500ERM1U. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 900 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 2.5 min, Typical backup time at half load: 11 min. Form factor: Rackmount, Product colour: Silver, Housing material: Metal. Compliance certificates: RoHS, Certification: CE, EAC, RCM
CyberPower OR1500ERM1U Line-Interactive UPS offers Simulated Sine Wave output power for office system devices including PCs, workstations, networking devices, and peripherals. It's typically integrated in the back office, server room, and data center environment to ensure a reliable backup power supply during power failures. In addition, the rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment.
The UPS has a multifunction LCD display which offers real-time information, including input and output voltage levels, load and battery levels, battery runtime, overload warning, and a silent mode. With the network ports on the UPS, it prevents network devices from being subjected to sudden power surges caused by lightning, thereby avoiding potential system damage. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.

Features

UPS topology: Line-Interactive
Output power capacity: 1.5 kVA
Output power: 900 W
Waveform: Sine
Input operation voltage (min): 165 V
Input operation voltage (max): 271 V
Input frequency: 50/60 Hz
Output operation voltage (min): 230 V
Output operation voltage (max): 230 V
Output frequency: 50/60 Hz
Automatic Voltage Regulation (AVR): Yes
Surge energy rating: 810 J
Response time: 4 ms
Power factor: 0.6
EMI/RFI noise filtering: Yes
Surge protection: Yes
Power protection features: Overload
Audible alarm(s): Yes
Audible alarm modes: Fault, Low battery alarm, Overload alarm

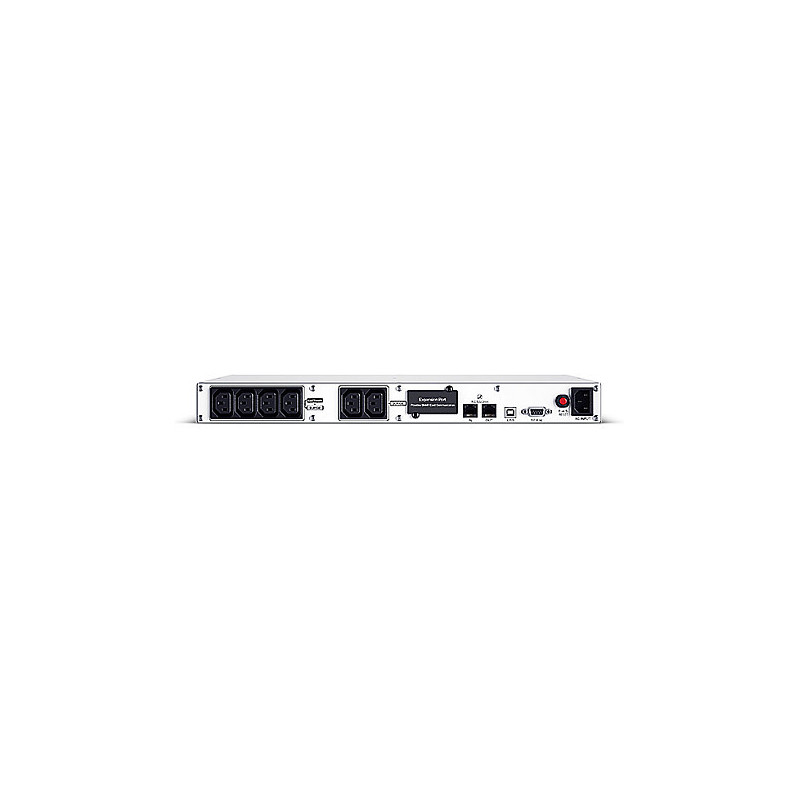

Ports interfaces

AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 6 AC outlet(s)
USB port: Yes
Serial ports quantity: 1
Modem (RJ-11) ports: 1
Ethernet LAN (RJ-45) ports: 1

Battery

Battery technology: Sealed Lead Acid (VRLA)
Number of batteries supported: 1
Typical backup time at full load: 2.5 min
Typical backup time at half load: 11 min
Battery recharge time: 8 h
Hot-swap battery: Yes

Design

Form factor: Rackmount
Housing material: Metal
Rack capacity: 1U
Cable length: 1.83 m
Product colour: Silver
Display type: LCD
LED indicators: Operation

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: RoHS
Certification: CE, EAC, RCM

Packaging content

Cables included: USB cable

Weight dimensions

Width: 443 mm
Depth: 389 mm
Height: 44 mm
Weight: 14.9 kg

Packaging data

Package width: 545 mm
Package depth: 515 mm
Package height: 158 mm
Package weight: 23.1 kg

Logistics data

Harmonized System (HS) code: 8504408590
Country of origin: China
