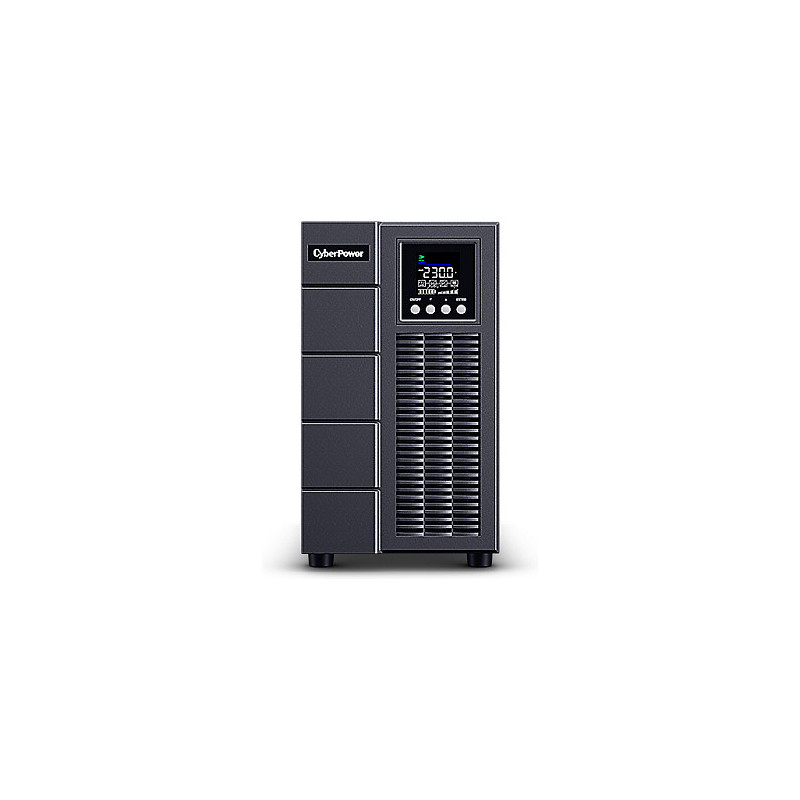

CyberPower OLS3000EA uninterruptible power supply (UPS)

CyberPower OLS3000EA. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Terminal, Power plug: C20 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 4.3 min, Typical backup time at half load: 13.1 min. Form factor: Tower, Product colour: Black, Housing material: Metal. Compliance certificates: CE, RoHS

CyberPower OLS3000EA is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It's typically integrated in the back office, server room, and data center environment.

The UPS is designed with color LCD panel for users to monitor power system and configure settings easily. This model is generator compatible and also adopts ECO mode to conserve power. The product can be connected to Emergency Power Off (EPO) switch, which allows users to shut off UPS immediately during emergency. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users.

Features

UPS topology: Double-conversion (Online)
Output power capacity: 3 kVA
Output power: 2700 W
Waveform: Pure sine
Input operation voltage (min): 190 V
Input operation voltage (max): 300 V
Input frequency: 50/60 Hz
Output operation voltage (min): 208 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Maximum current: 13.04 A
Surge energy rating: 370 J
Response time: 0 ms
Number of input phases: 1
Efficiency (ECO mode): 95%
Power factor: 0.9
Input power factor: 0.98
Crest factor: 3:1
Feature: Emergency Power Off (EPO)
Output voltage Total Harmonic Distortion (THD): 5%
Feature: EMI/RFI noise filtering
Feature: Surge protection
Power protection features: Input fuse, Over current, Overload, Short circuit
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm

Ports & interfaces

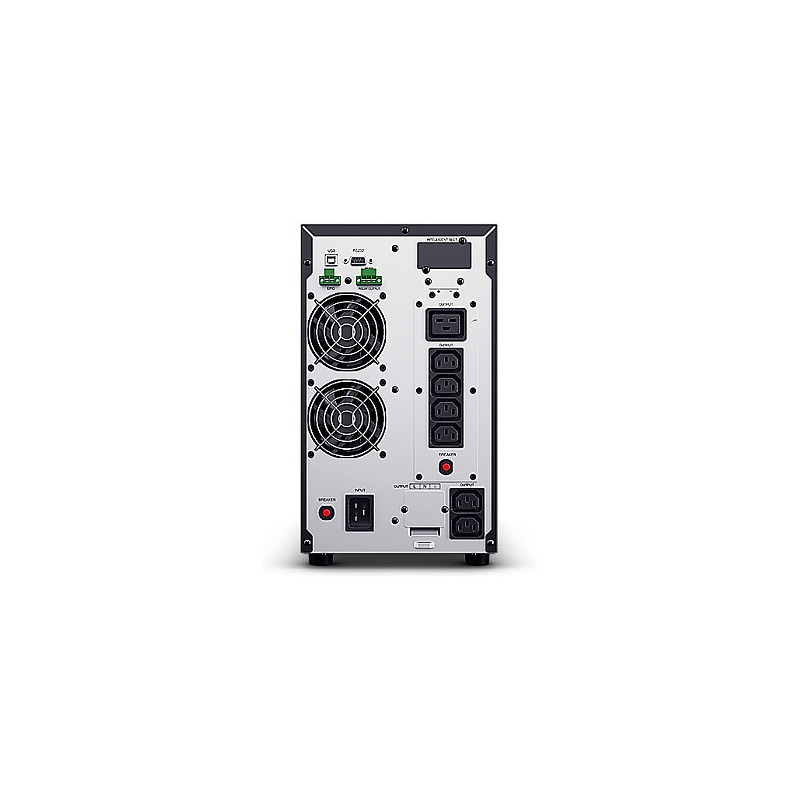

AC outlet types: C13 coupler, C19 coupler, Terminal
Power plug: C20 coupler
AC outlets quantity: 8 AC outlet(s)
Feature: USB port
Feature: Emergency Power Off (EPO) connector

Battery

Battery technology: Sealed Lead Acid (VRLA)
Number of batteries supported: 3
Typical backup time at full load: 4.3 min
Typical backup time at half load: 13.1 min
Battery recharge time: 4 h
Charging current: 1.5 A
Replacement battery cartridge: BPSE72V40A

Design

Form factor: Tower
Housing material: Metal
Cable length: 1.5 m
Product colour: Black
Display type: LCD

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 50 °C
Operating relative humidity (H-H): 20 - 90%
Storage relative humidity (H-H): 10 - 90%
Operating altitude: 0 - 1500 m
Non-operating altitude: 0 - 1500 m

Certificates

Compliance certificates: CE, RoHS

Weight & dimensions

Width: 169 mm
Depth: 416 mm
Height: 337 mm
Weight: 26 kg

Packaging data

Package width: 295 mm
Package depth: 519 mm
Package height: 458 mm
Package weight: 30.4 kg

Logistics data

Harmonized System (HS) code: 8504408590
Country of origin: China
