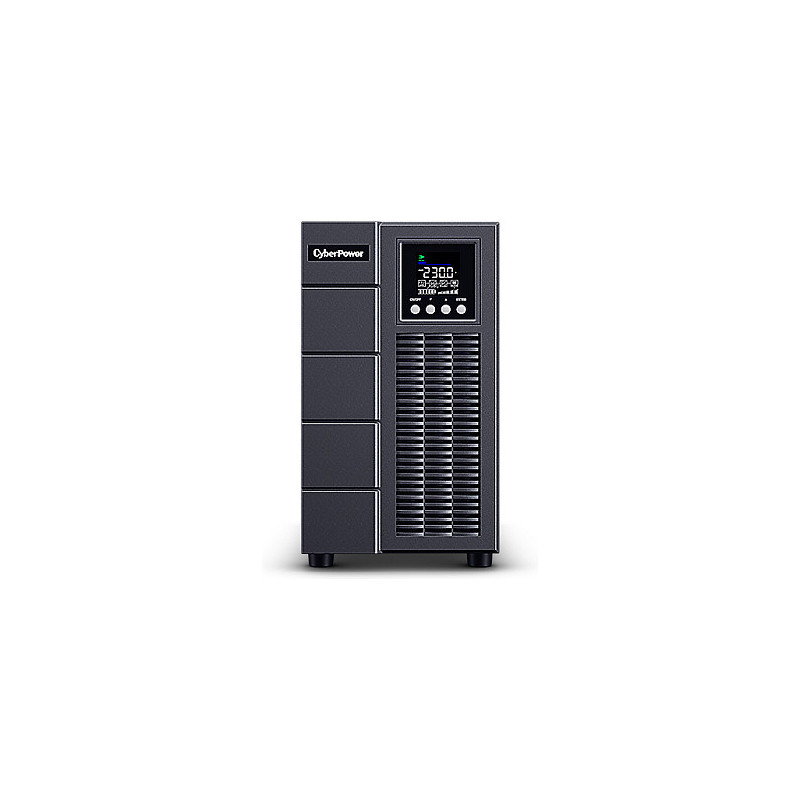

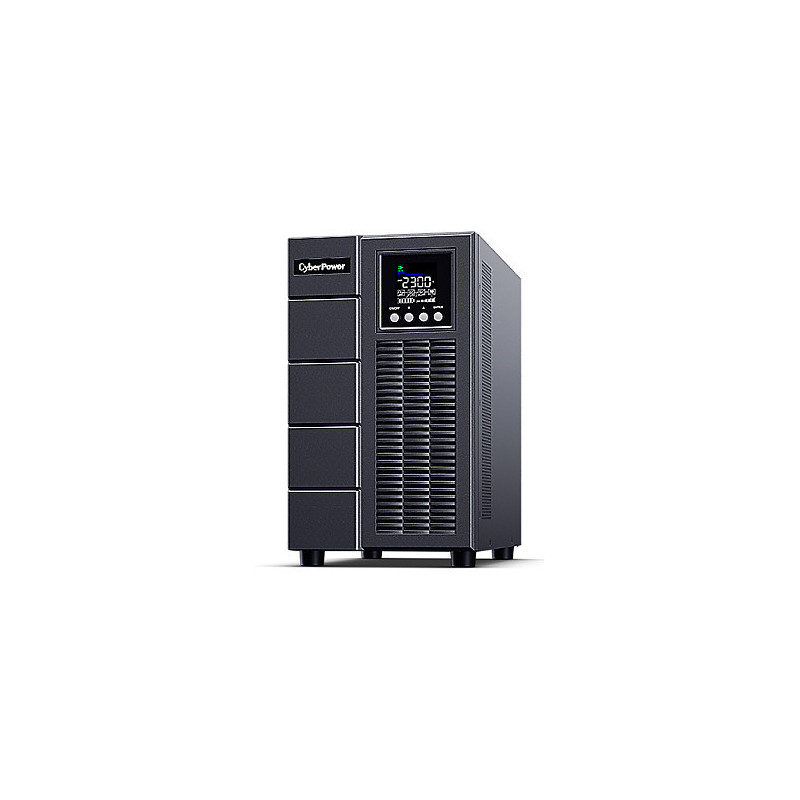

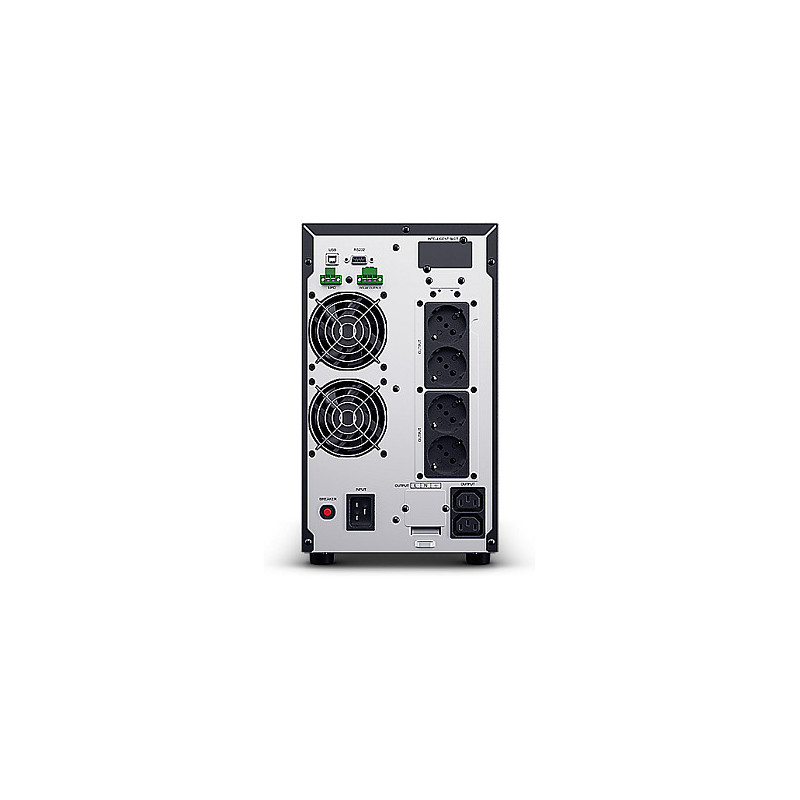

CyberPower OLS3000EA-DE uninterruptible power supply (UPS)

CyberPower OLS3000EA-DE. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, AC outlets quantity: 7 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 4.2 min, Typical backup time at half load: 13.1 min. Form factor: Tower, Product colour: Black, Housing material: Metal. Certification: RoHS, CE

CyberPower OLS3000EA-DE is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It's typically integrated in the back office, server room, and data center environment.

The UPS is designed with color LCD panel for users to monitor power system and configure settings easily. This model is generator compatible and also adopts ECO mode to conserve power. The product can be connected to Emergency Power Off (EPO) switch, which allows users to shut off UPS immediately during emergency. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users.

Features

UPS topology: Double-conversion (Online)
Output power capacity: 3 kVA
Output power: 2700 W
Waveform: Pure sine
Input operation voltage (min): 190 V
Input operation voltage (max): 230 V
Input frequency: 50/60 Hz
Output operation voltage (min): 208 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Maximum current: 13.04 A
Surge energy rating: 370 J
Response time: 0 ms
Efficiency (ECO mode): 95%
Power factor: 0.9
Input power factor: 0.98
Crest factor: 3:1
Output voltage Total Harmonic Distortion (THD): 5%
Feature: EMI/RFI noise filtering
Feature: Surge protection
Power protection features: Overload
Feature: Audible alarm(s)
Audible alarm modes: Battery replacement, Fault, Low battery alarm, Overload alarm

Ports & interfaces

AC outlet types: C13 coupler
AC outlets quantity: 7 AC outlet(s)
Feature: USB port

Battery

Battery technology: Sealed Lead Acid (VRLA)
Number of batteries supported: 3
Typical backup time at full load: 4.2 min
Typical backup time at half load: 13.1 min
Battery recharge time: 4 h
Charging current: 1.5 A

Design

Form factor: Tower
Housing material: Metal
Cable length: 1.5 m
Feature: Built-in fan
Product colour: Black
Display type: LCD
LED indicators: Fault, Operation, Power, Status

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 50 °C
Operating relative humidity (H-H): 20 - 90%
Storage relative humidity (H-H): 10 - 90%
Operating altitude: 0 - 1500 m
Non-operating altitude: 0 - 1500 m

Certificates

Certification: RoHS, CE

Packaging content

Cables included: Power load cable, USB cable

Weight & dimensions

Width: 196 mm
Depth: 416 mm
Height: 337 mm
Weight: 21.3 kg

Packaging data

Package width: 295 mm
Package depth: 519 mm
Package height: 458 mm
Package weight: 30.4 kg

Logistics data

Harmonized System (HS) code: 8504408590
Country of origin: China
