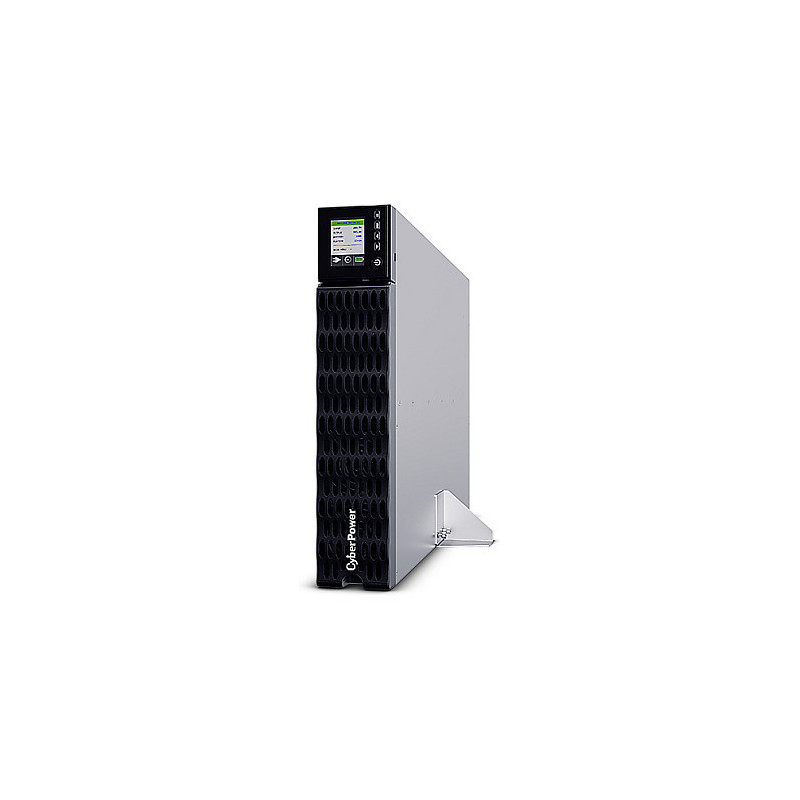

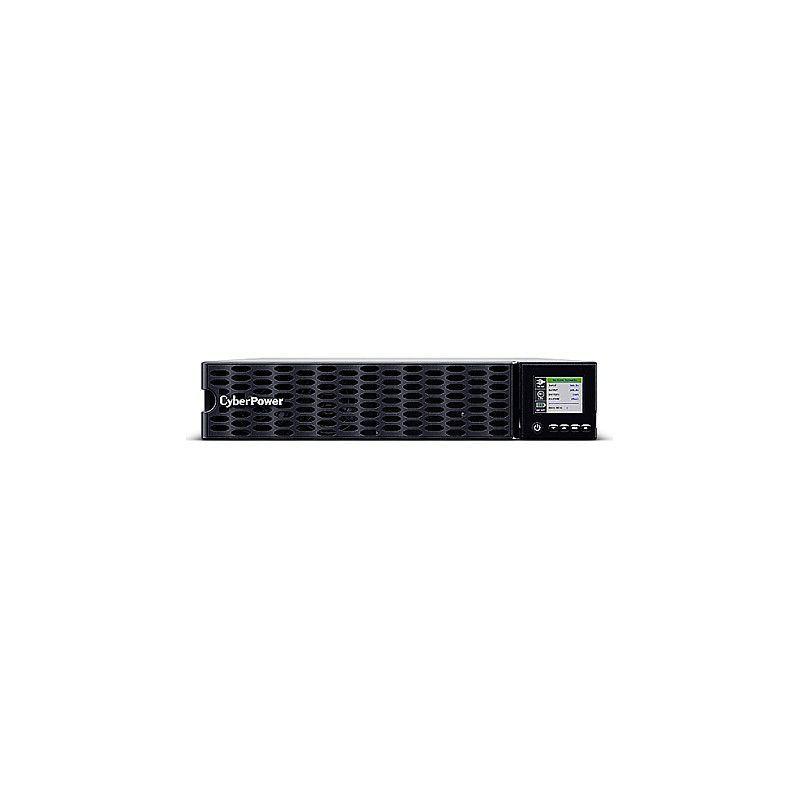

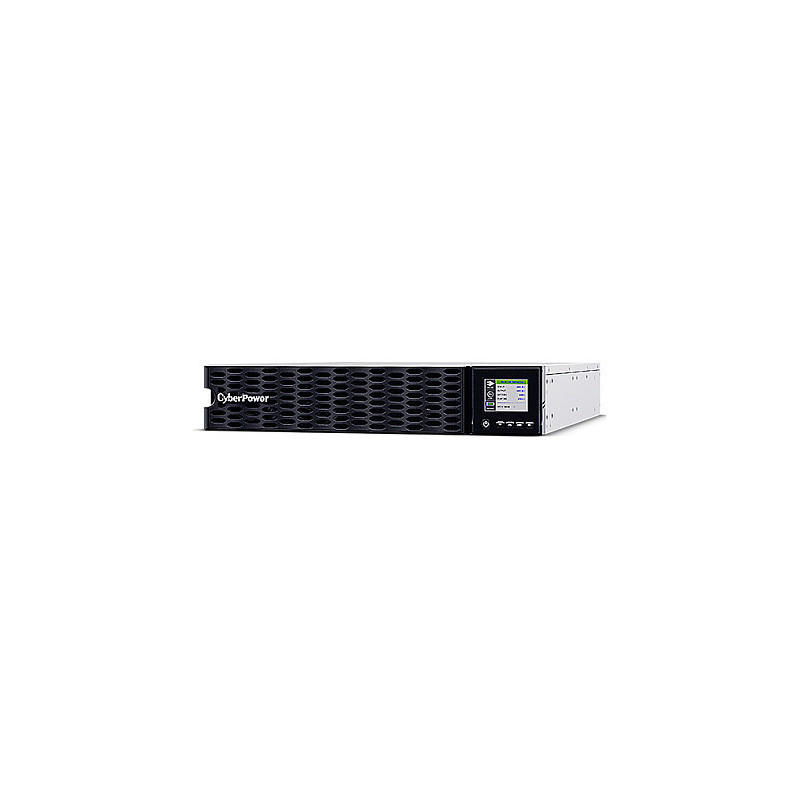

CyberPower OL5KERTHD uninterruptible power supply (UPS)

CyberPower OL5KERTHD. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 5000 W. AC outlet types: C13 coupler, C19 coupler, Terminal, Power plug: Terminal, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 6 Ah, Battery voltage: 12 V. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Metal. Compliance certificates: CE, EAC, RCM, RoHS

CyberPower OL5KERTHD guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency systems, and surveillance systems. The UPS adopts double-conversion topology to provide high-quality power output in a compact design. This generator-compatible UPS features hot-swappable battery packs for maintenance without power interruption, and comes with additional ECO Mode to conserve power and save on energy costs.

The UPS can employ Extended Battery Modules (EBM) to prolong runtimes, and adopts patented Battery Management Technology to balance battery string voltage for optimal battery lifespan. This model also features tiltable color LCD panel that allows users to monitor key power and battery information at a glance. The PowerPanel® Power Management Software allows user to perform real-time monitoring and remote management of the UPS.

Features

UPS topology: Double-conversion (Online)
Output power capacity: 5 kVA
Output power: 5000 W
Waveform: Pure sine
Input operation voltage (min): 200 V
Input operation voltage (max): 240 V
Input frequency: 50/60 Hz
Output operation voltage (min): 200 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Maximum current: 24 A
Surge energy rating: 2430 J
Response time: 0 ms
Heat dissipation: 1186 BTU/h
Efficiency (ECO mode): 97%
Input power factor: 0.99
Output power factor: 1
Power Factor Correction (PFC) type: Active
Crest factor: 3:1
Feature: ECO mode
Feature: Emergency Power Off (EPO)
Total Harmonic Distortion (THD) (linear load): 3%
Total Harmonic Distortion (THD) (non-linear load): 5%
Feature: EMI/RFI noise filtering
Noise level: 66 dB
Feature: Surge protection
Power protection features: Overload
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm

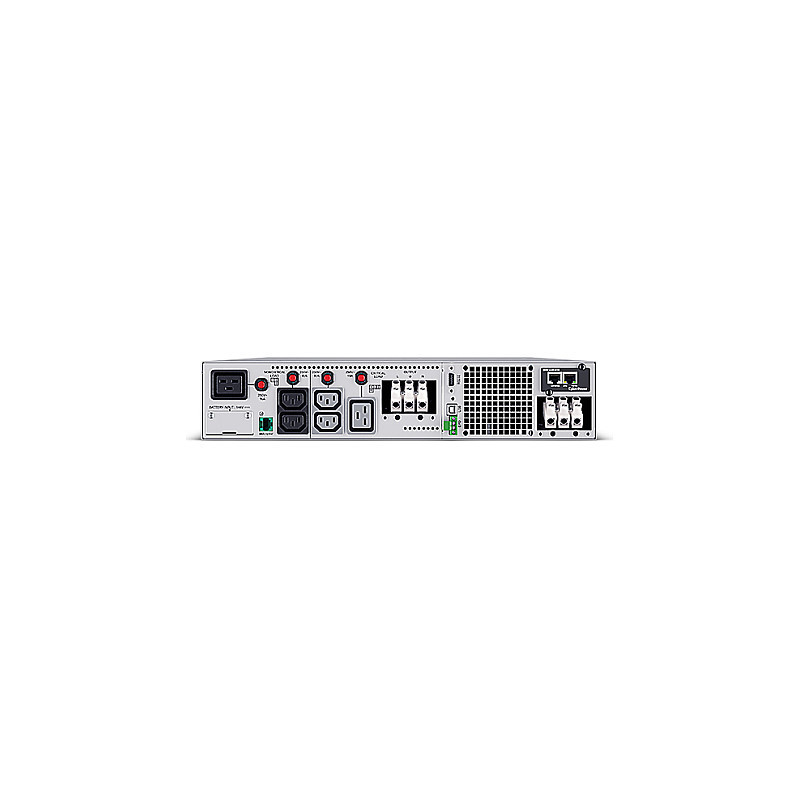

Ports & interfaces

AC outlet types: C13 coupler, C19 coupler, Terminal
Power plug: Terminal
AC outlets quantity: 6 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 1
Feature: Serial interface
Serial interface type: RS-232
Serial ports quantity: 1
RS-232 ports: 1
Feature: Emergency Power Off (EPO) connector

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 6 Ah
Battery voltage: 12 V
Number of batteries supported: 1
Typical backup time at full load: 2.3 min
Typical backup time at half load: 6.4 min
Battery recharge time: 4 h
Feature: Hot-swap battery

Design

Form factor: Rackmount/Tower
Housing material: Metal
Product colour: Black
Control type: Buttons
Display type: LCD
LED indicators: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -5 - 45 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 4500 m

Certificates

Compliance certificates: CE, EAC, RCM, RoHS

Packaging content

Cables included: Serial, USB cable
Feature: Manual

Sustainability

Feature: Sustainability compliance
Sustainability certificates: ENERGY STAR

Weight & dimensions

Width: 433 mm
Depth: 720 mm
Height: 86.5 mm
Weight: 42 kg

Packaging data

Package width: 600 mm
Package depth: 1100 mm
Package height: 335 mm
Package weight: 52 kg

Logistics data

Harmonized System (HS) code: 8504408690
Country of origin: China

Other features

Battery type: RBP0144
