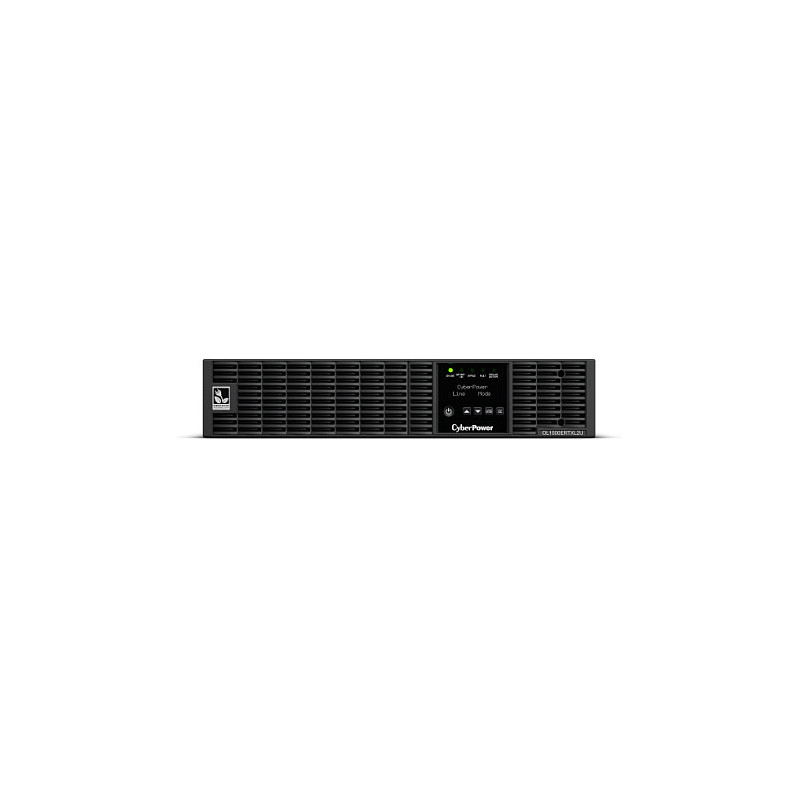

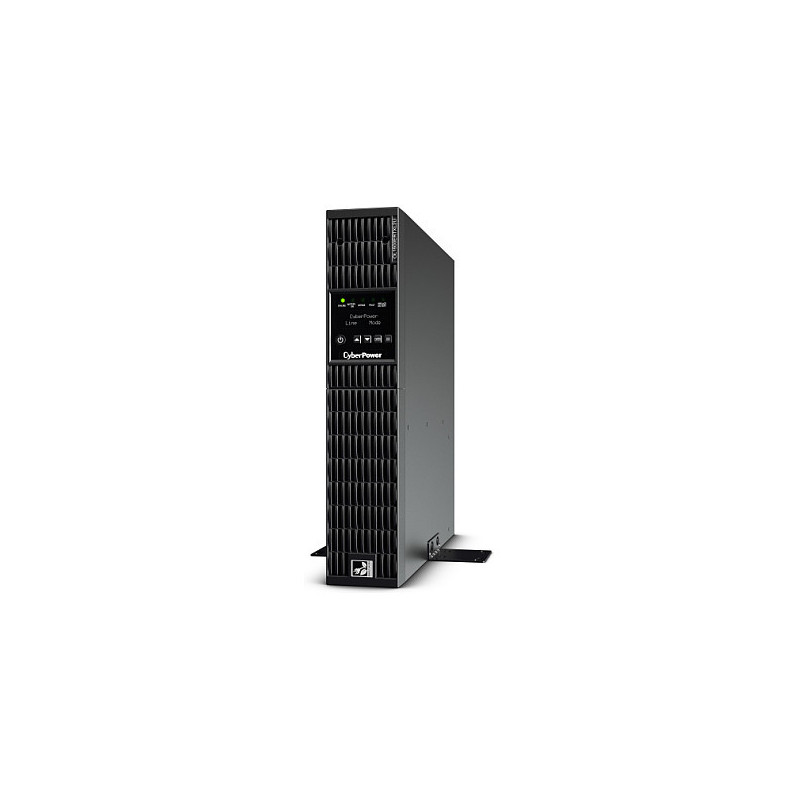

CyberPower OL1500ERTXL2U uninterruptible power supply (UPS)

CyberPower OL1500ERTXL2U. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1350 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 3 min, Typical backup time at half load: 11 min. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Metal. Compliance certificates: C-TICK, CE, RCM, RoHS

The Online Series UPS is ideal for servers, networking equipment, workstations and other mission-critical applications which require Pure Sineware power protection. Featuring Online Double Conversion design and Zero Transfer Time, it can provide consistent and seamless Pure Sinewave power to critical loads. With the add-on advantage of Extended Runtime (XL) battery packs, the UPS backup time can be extended to maximize workflow flexibility. An optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. The included PowerPanel® Business Edition management software provides corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.

Features

UPS topology: Double-conversion (Online)
Output power capacity: 1.5 kVA
Output power: 1350 W
Waveform: Pure sine
Input operation voltage (min): 190 V
Input operation voltage (max): 300 V
Input frequency: 40/70 Hz
Output operation voltage (min): 200 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Maximum current: 7.5 A
Surge energy rating: 1780 J
Response time: 0 ms
Heat dissipation: 512 BTU/h
Output power factor: 0.9
Feature: Emergency Power Off (EPO)
Total Harmonic Distortion (THD) (linear load): 3%
Total Harmonic Distortion (THD) (non-linear load): 5%
Feature: EMI/RFI noise filtering
Feature: Surge protection
Surge protection features: Fax, Modem, Network, Telephone
Power protection features: Overload, Short circuit
Feature: Audible alarm(s)
Audible alarm modes: Battery replacement

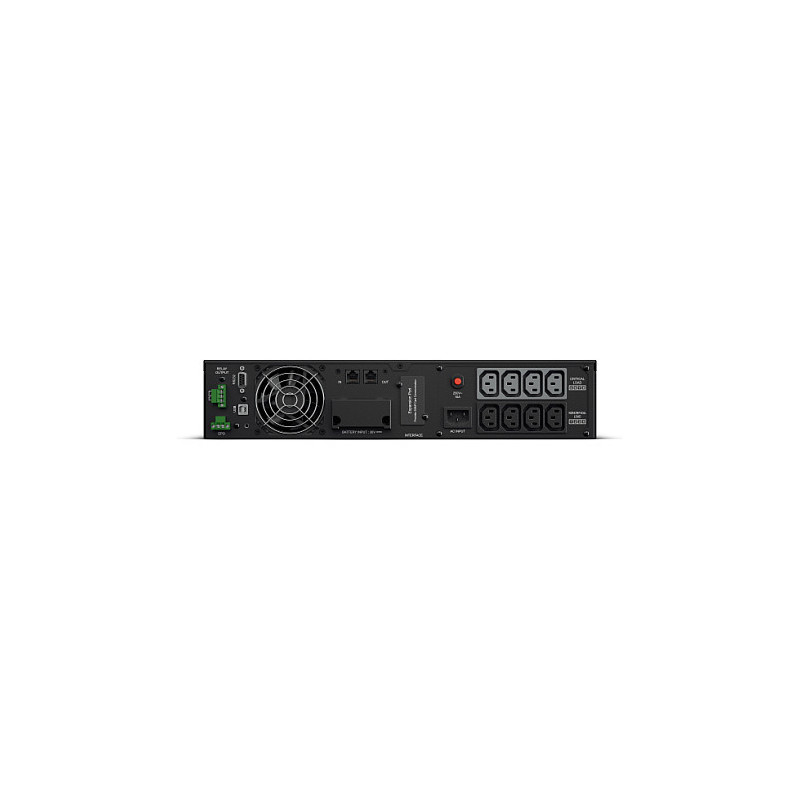

Ports & interfaces

AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 8 AC outlet(s)
USB 2.0 ports quantity: 1
Feature: Serial interface
Serial interface type: RS-232
Serial ports quantity: 1
RS-232 ports: 1
Ethernet LAN (RJ-45) ports: 2
Feature: Emergency Power Off (EPO) connector

Battery

Battery technology: Sealed Lead Acid (VRLA)
Typical backup time at full load: 3 min
Typical backup time at half load: 11 min
Battery recharge time: 5 h
Feature: Hot-swap battery
Feature: Cold start

Design

Form factor: Rackmount/Tower
Housing material: Metal
Rack capacity: 2U
Cooling type: Active
Feature: Built-in fan
Product colour: Black
Control type: Buttons
Display type: LCD
LED indicators: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 45 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: C-TICK, CE, RCM, RoHS

Packaging content

Feature: Rack mount kit
Cables included: Serial, USB cable
Feature: Manual

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 433 mm
Depth: 430 mm
Height: 88 mm
Weight: 18 kg

Packaging data

Bundled software: PowerPanel® Business Edition
Package width: 575 mm
Package depth: 550 mm
Package height: 240 mm
Package weight: 24.5 kg

Logistics data

Harmonized System (HS) code: 8504408590
Warranty period: 3 year(s)
Country of origin: China

Other features

Battery type: RBP0074
Compatible operating systems: Windows 7 / Vista / XP / 2000, Server 2008 / 2003, Linux
Feature: Overload protection
