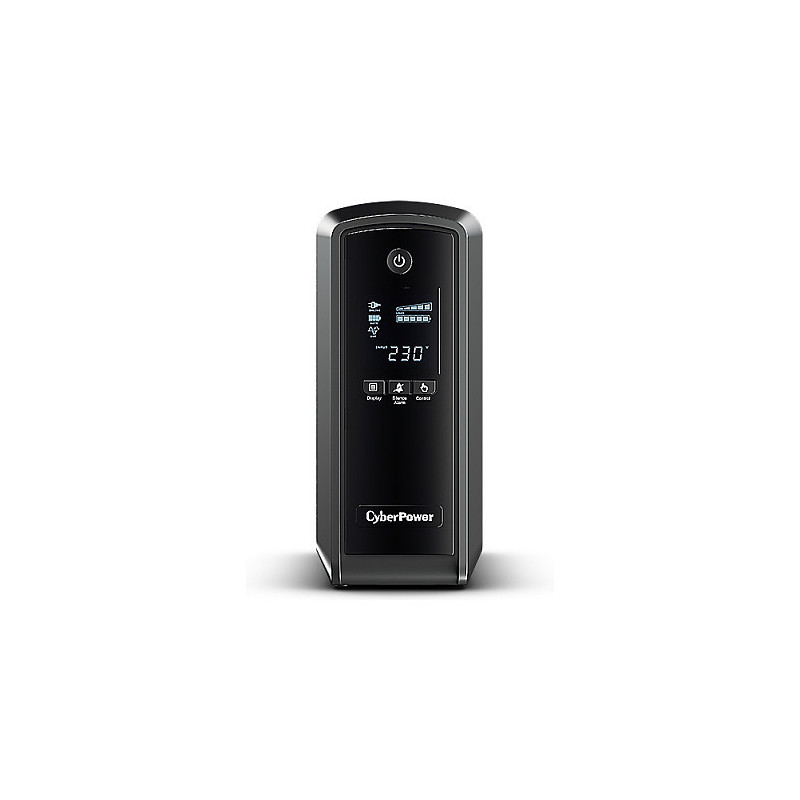

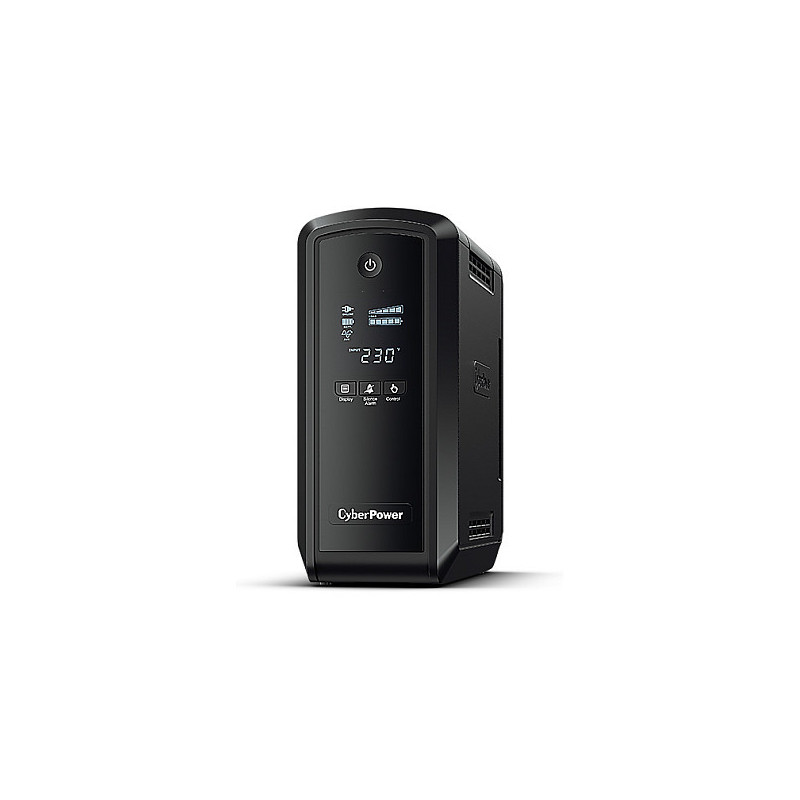

CyberPower CP550EPFCLCD uninterruptible power supply (UPS)

CyberPower CP550EPFCLCD. UPS topology: Line-Interactive, Output power capacity: 0.55 kVA, Output power: 350 W. Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s), USB port type: USB Type-B. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Mini Tower, Product colour: Black, Control type: Buttons. Compliance certificates: CE, EAC, RCM, RoHS

CyberPower CP550EPFCLCD with Pure Sine Wave output safeguards mid- to high-end computer systems, servers and networking hardware that use conventional and Active Power Factor Correction (PFC) power supplies. Designed with GreenPower UPS™ Technology to improve UPS operating efficiency and to minimize its energy consumption, users can enjoy significant energy cost savings over conventional UPS systems.

The UPS provides Automatic Voltage Regulation (AVR) to maintain safe voltage levels for connected equipment. Featured data line protection guards phones, networks, and communication equipment against surges/spikes and other power irregularities. With multifunction LCD display, users can access information of power/battery conditions and configure advanced settings, including alert of potential power problems and self-test with a single push of a button.

Features

UPS topology: Line-Interactive
Output power capacity: 0.55 kVA
Output power: 350 W
Waveform: Sine
Input operation voltage (min): 170 V
Input operation voltage (max): 270 V
Input frequency: 50/60 Hz
Output operation voltage (min): 203 V
Output operation voltage (max): 230 V
Output frequency: 50/60 Hz
Feature: Automatic Voltage Regulation (AVR)
Surge energy rating: 405 J
Response time: 4 ms
Heat dissipation: 31 BTU/h
Efficiency: 98.5%
Noise level: 35 dB
Feature: Surge protection
Power protection features: Over voltage, Overload, Under voltage
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm
Feature: Auto-restart

Ports & interfaces

Power plug: C14 coupler
AC outlets quantity: 6 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 1
USB port type: USB Type-B
Ethernet LAN (RJ-45) ports: 2

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 7 Ah
Battery voltage: 12 V
Battery recharge time: 8 h
Feature: Automatic battery test

Design

Form factor: Mini Tower
Product colour: Black
Control type: Buttons
Display type: LCD
LED indicators: Status

Certificates

Compliance certificates: CE, EAC, RCM, RoHS

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 100 mm
Depth: 275 mm
Height: 230 mm
Weight: 6.8 kg

Packaging data

Package width: 195 mm
Package depth: 365 mm
Package height: 335 mm
Package weight: 7.6 kg

Logistics data

Harmonized System (HS) code: 8504408590
Country of origin: China

Other features

Battery type: RBP0078
