CyberPower CP1600EIPFCLCD uninterruptible power supply (UPS)

CyberPower CP1600EIPFCLCD. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 1000 W. AC outlet types: C13 coupler, Type F, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 2.6 min, Typical backup time at half load: 9.7 min. Form factor: Tower, Product colour: Black, Cable length: 1.83 m. Compliance certificates: CE, RoHS

Features

UPS topology: Line-Interactive
Output power capacity: 1.6 kVA
Output power: 1000 W
Waveform: Pure sine
Input operation voltage (min): 169 V
Input operation voltage (max): 271 V
Input frequency: 50/60 Hz
Output frequency: 50/60 Hz
Feature: Automatic Voltage Regulation (AVR)
Maximum current: 10 A
Surge energy rating: 405 J
Response time: 8 ms
Heat dissipation: 24 BTU/h
Power Factor Correction (PFC) type: Active
Feature: Surge protection
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Fault, Low battery alarm, Overload alarm
Power source type: AC
Feature: Detachable power cord
Feature: Socket circuit breaker

Ports & interfaces

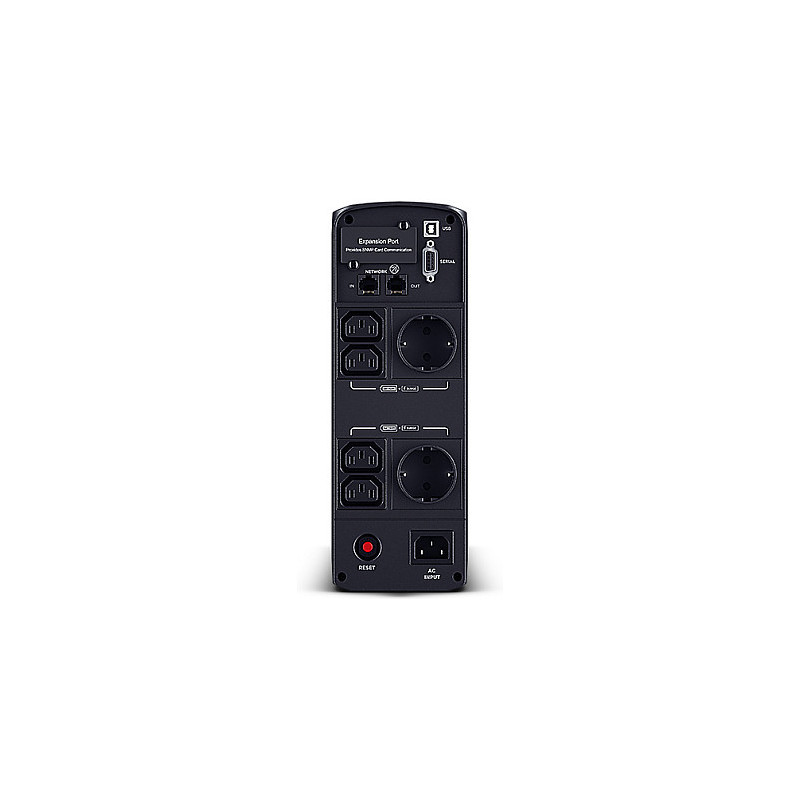

AC outlet types: C13 coupler, Type F
Power plug: C14 coupler
AC outlets quantity: 6 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 2
USB port type: USB Type A/USB Type-C
Feature: Serial interface
Ethernet LAN (RJ-45) ports: 2

Battery

Battery technology: Sealed Lead Acid (VRLA)
Typical backup time at full load: 2.6 min
Typical backup time at half load: 9.7 min
Battery recharge time: 8 h

Design

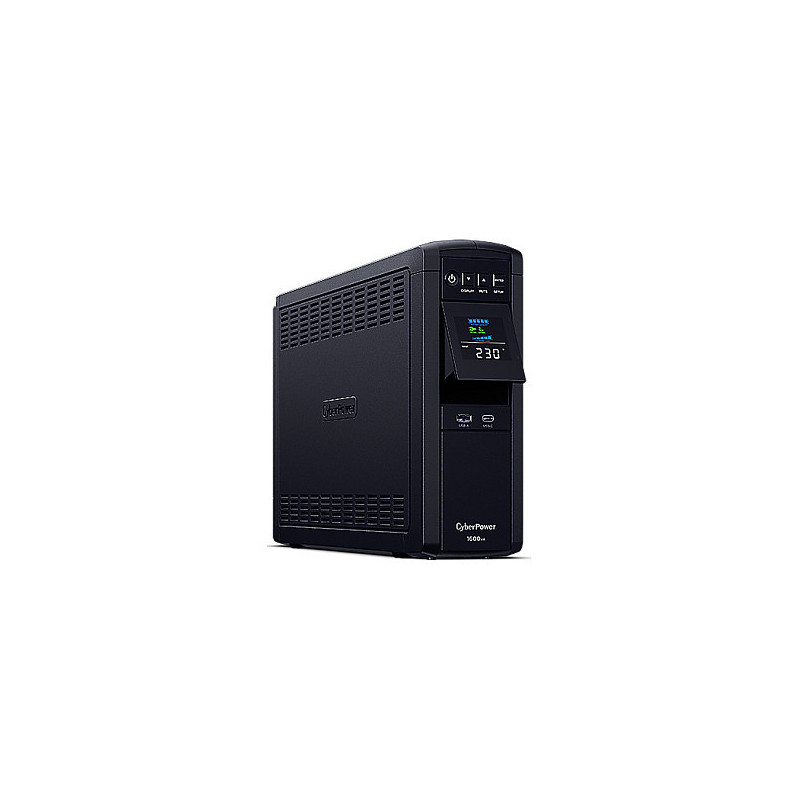

Form factor: Tower
Cable length: 1.83 m
Product colour: Black
Control type: Buttons

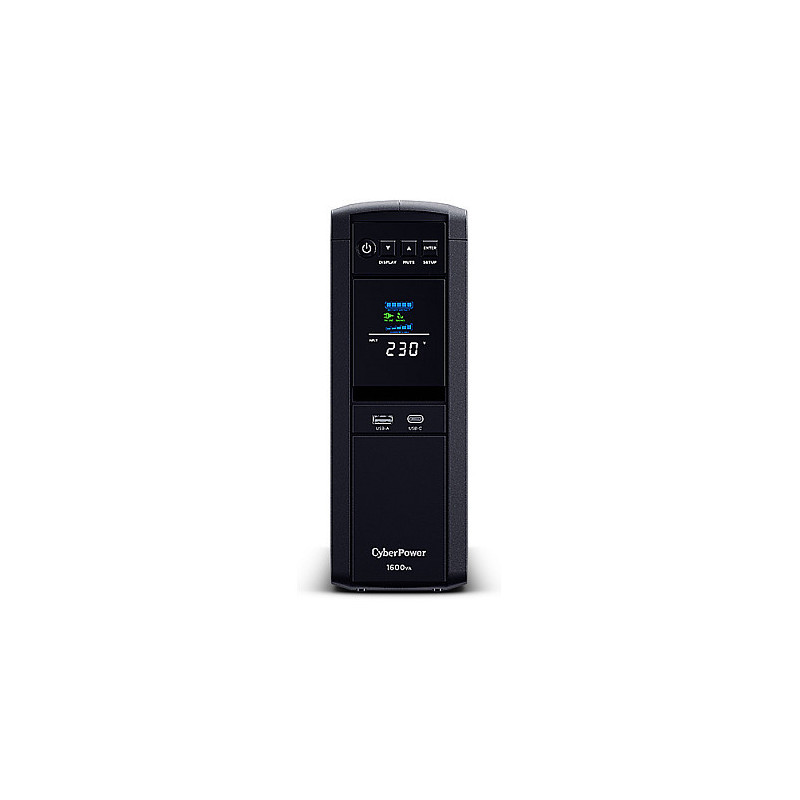

Display type: LCD
LED indicators: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: CE, RoHS

Packaging content

Feature: Batteries included
Feature: Quick installation guide

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 100 mm
Depth: 355 mm
Height: 280 mm
Weight: 11 kg

Packaging data

Package width: 195 mm
Package depth: 466 mm
Package height: 370 mm
Package weight: 13 kg

Other features

Nominal output voltage: 230 V
Nominal input voltage: 220-240 V
Feature: Overload protection
