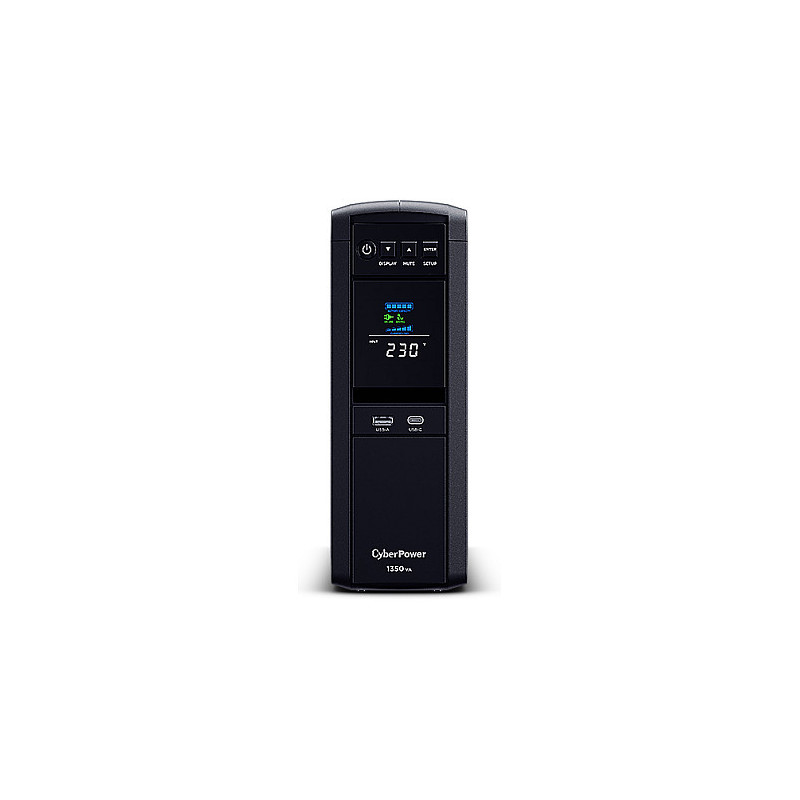

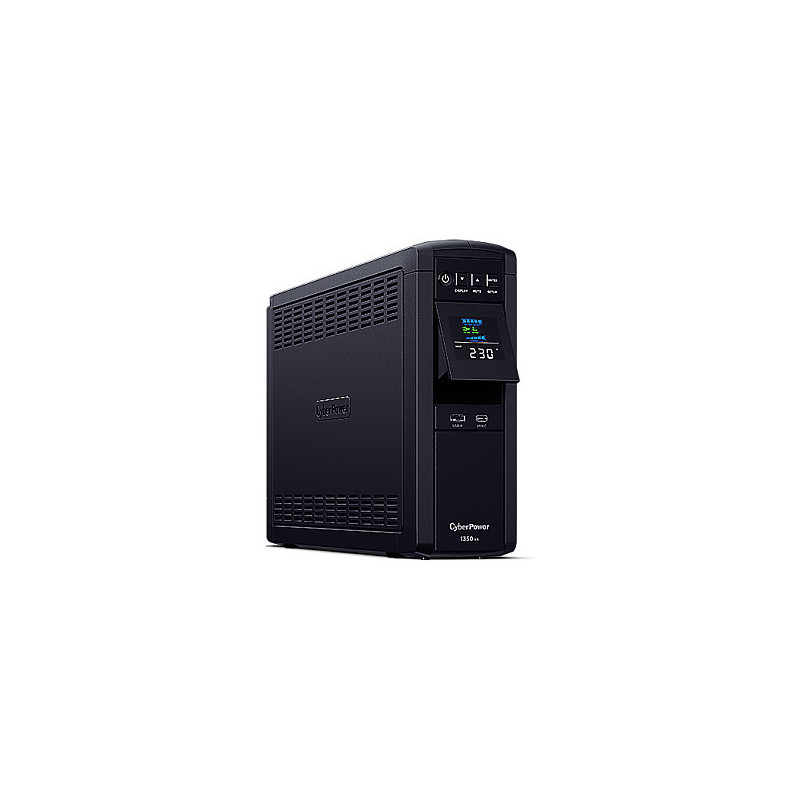

CyberPower CP1350EPFCLCD uninterruptible power supply (UPS)

CyberPower CP1350EPFCLCD. UPS topology: Line-Interactive, Output power capacity: 1.35 kVA, Output power: 810 W. AC outlet types: Type F, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery capacity: 8.5 Ah, Battery voltage: 12 V, Typical backup time at full load: 4 min. Form factor: Tower, Product colour: Black, Cooling type: Passive. Compliance certificates: RoHS

Backup PFC Sinewave Series for Mac.

Designed for new Mac Pro with additional USB ports on front to recharge mobile equipments.

Features

UPS topology: Line-Interactive
Output power capacity: 1.35 kVA
Output power: 810 W
Waveform: Pure sine
Input operation voltage (min): 165 V
Input operation voltage (max): 265 V
Input frequency: 50/60 Hz
Output frequency: 50/60 Hz
Feature: Automatic Voltage Regulation (AVR)
Maximum current: 10 A
Efficiency: 98.5%
Feature: EMI/RFI noise filtering
Noise level: 35 dB
Feature: Surge protection
Surge protection features: Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone
Power protection features: Overload
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Fault, Low battery alarm, Overload alarm
Feature: Auto-restart

Ports & interfaces

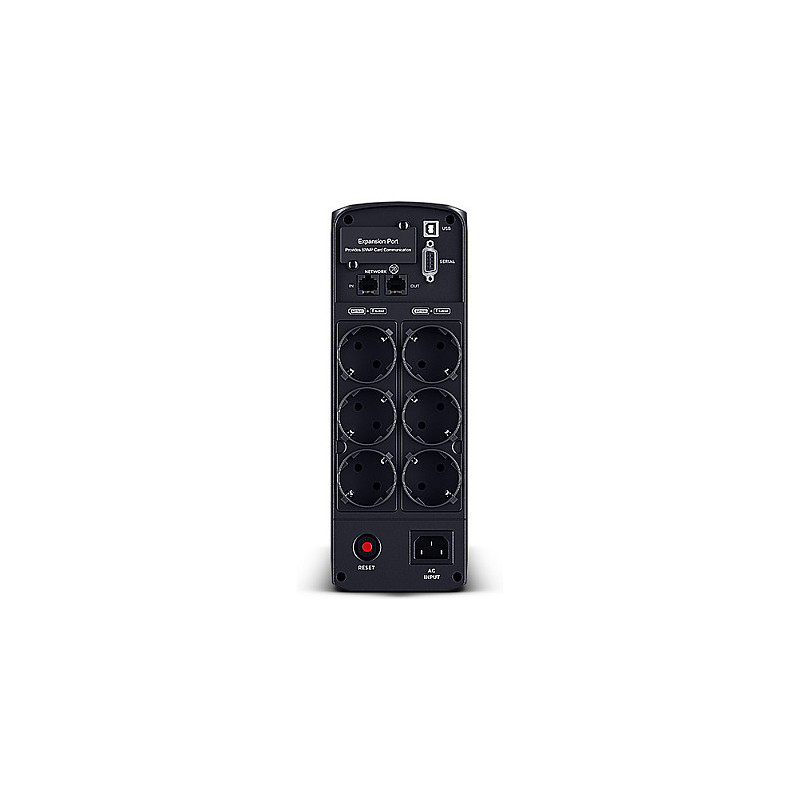

AC outlet types: Type F
Power plug: C14 coupler
AC outlets quantity: 6 AC outlet(s)
Number of type F outputs: 6
Feature: USB port
USB 2.0 ports quantity: 3
Feature: Serial interface
Serial ports quantity: 1
Modem (RJ-11) ports: 1
Ethernet LAN (RJ-45) ports: 1
Cabling technology: 10/100/1000Base-T(X)

Battery

Battery capacity: 8.5 Ah
Battery voltage: 12 V
Number of batteries supported: 2
Typical backup time at full load: 4 min
Typical backup time at half load: 10 min
Battery recharge time: 8 h

Design

Form factor: Tower
Cooling type: Passive
Product colour: Black
Display type: LCD
LED indicators: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: RoHS

Weight & dimensions

Width: 100 mm
Depth: 370 mm
Height: 265 mm
Weight: 10.9 kg

Packaging data

Package width: 195 mm
Package depth: 466 mm
Package height: 370 mm
Package weight: 11.6 kg

Logistics data

Harmonized System (HS) code: 8504408590
Country of origin: China

Other features

Nominal output voltage: 230 V
