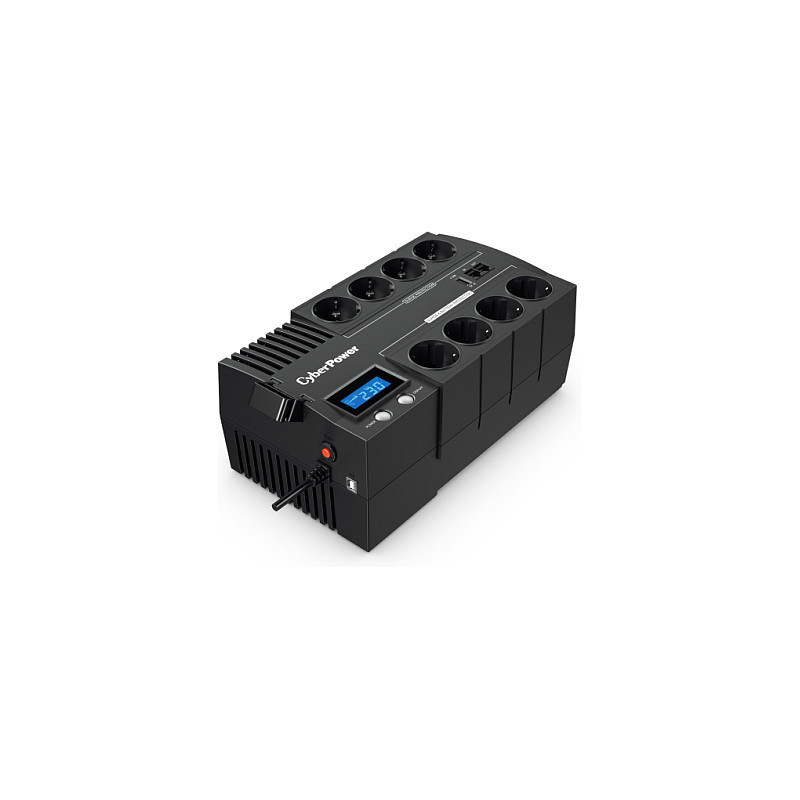

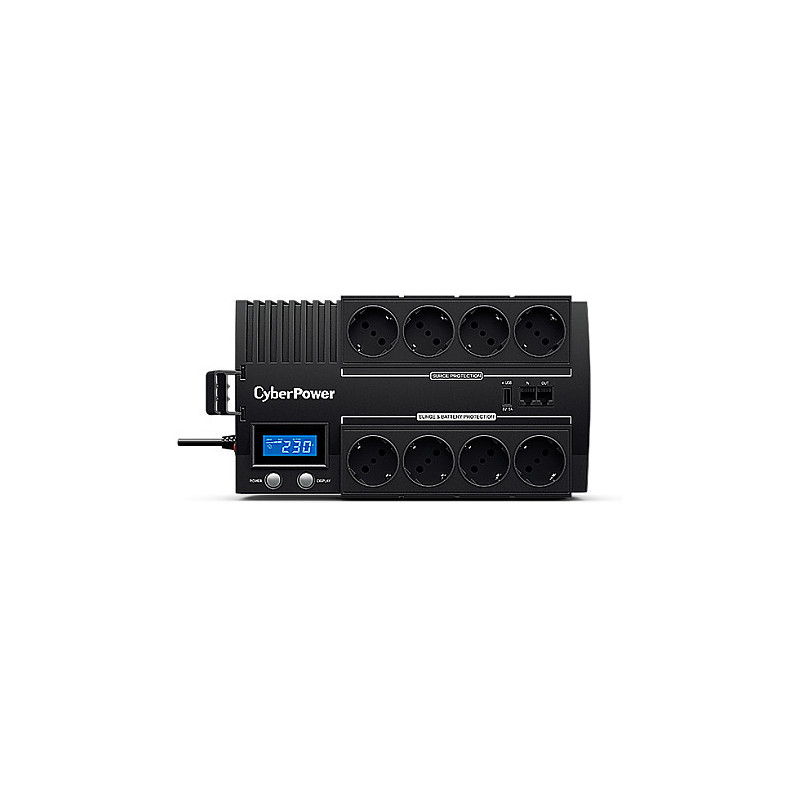

CyberPower BR1200ELCD uninterruptible power supply (UPS)

CyberPower BR1200ELCD. UPS topology: Line-Interactive, Output power capacity: 1.2 kVA, Output power: 720 W. AC outlet types: Type F, AC outlets quantity: 8 AC outlet(s), USB port type: USB Type-A. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 230 V, Typical backup time at full load: 2 min. Form factor: Desktop, Product colour: Black, Housing material: Plastic. Compliance certificates: CE, EAC, RoHS

The BRICs LCD Series UPS with LCD can supply clean and stable power to protect your equipment. The include PowerPanel Personal Edition management software showcases the feature rich abilities of this UPS such as input /output power voltage readings, self-diagnostics, scheduled shutdown, and approximate battery back-up time reading. These UPS units can be placed in either a horizontal or wallmount postition to mark the most of your space. With Energy-Saving Technology, BRICs LCD Series UPS can save upto 75% of electricity and save your electricity bill. You can easy charge AA/AAA battery Via USB charge with battery charger.

Features

UPS topology: Line-Interactive
Output power capacity: 1.2 kVA
Output power: 720 W
Waveform: Sine
Input operation voltage (min): 165 V
Input operation voltage (max): 290 V
Input frequency: 50/60 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Feature: Automatic Voltage Regulation (AVR)
Surge energy rating: 150 J
Response time: 4 ms
Heat dissipation: 137 BTU/h
Feature: EMI/RFI noise filtering
Feature: Surge protection
Surge protection features: Fax, Modem, Network, Telephone
Power protection features: Short circuit
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Fault, Low battery alarm, Overload alarm

Ports & interfaces

AC outlet types: Type F
AC outlets quantity: 8 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 1
USB port type: USB Type-A
Modem (RJ-11) ports: 2
Ethernet LAN (RJ-45) ports: 2

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery voltage: 230 V
Number of batteries supported: 2
Typical backup time at full load: 2 min
Typical backup time at half load: 9 min
Battery recharge time: 8 h
Replacement battery cartridge: RBP0063

Design

Form factor: Desktop
Housing material: Plastic
Cable length: 1.5 m
Product colour: Black
Display type: LCD
LED indicators: Battery level, Power, Status

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 50 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 90%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 3000 m

Certificates

Compliance certificates: CE, EAC, RoHS

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 166 mm
Depth: 288 mm
Height: 118 mm
Weight: 8.2 kg

Packaging data

Package width: 158 mm
Package depth: 325 mm
Package height: 230 mm
Package weight: 8.43 kg

Logistics data

Harmonized System (HS) code: 8504408590

Other features

Number of phases: 1
