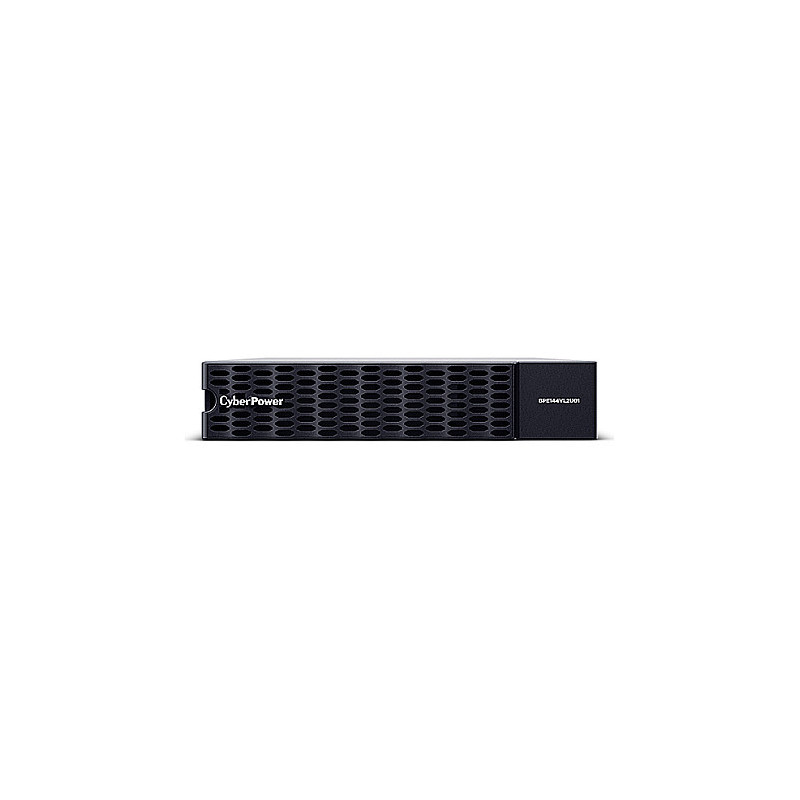

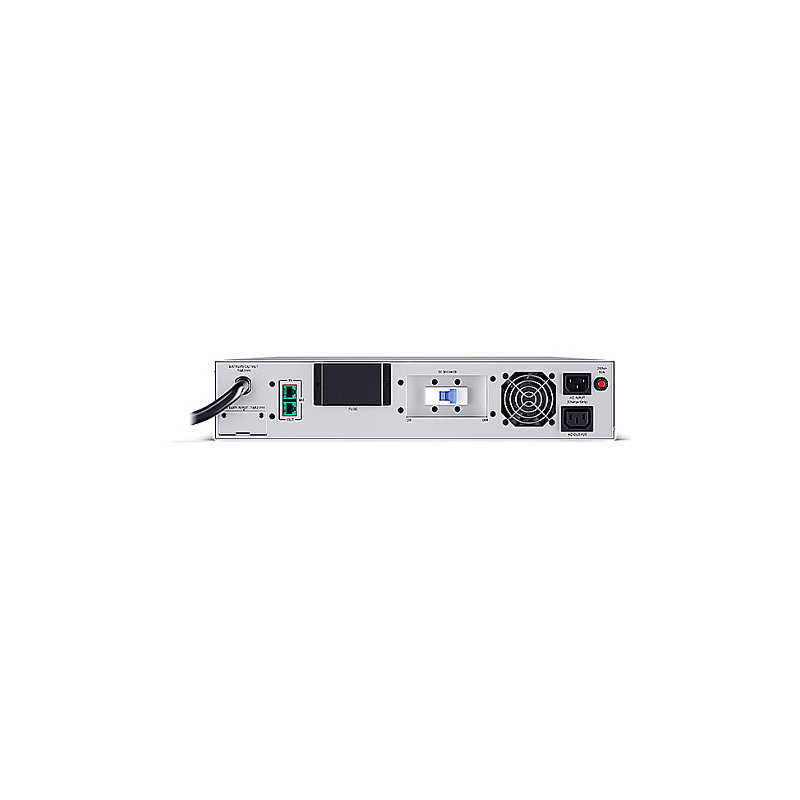

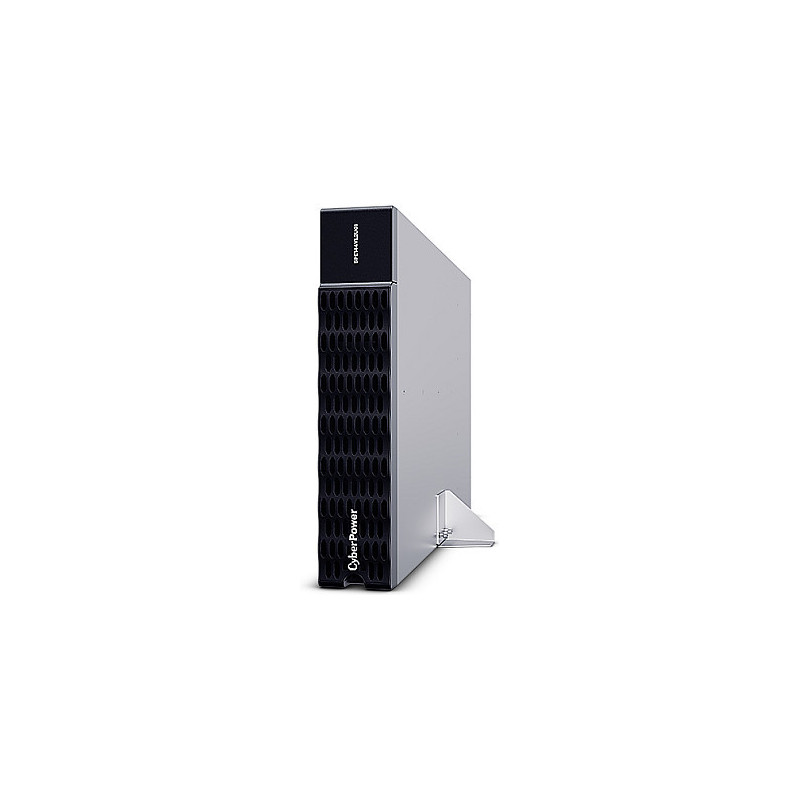

CyberPower BPE144VL2U01 UPS battery cabinet

CyberPower BPE144VL2U01. Form factor: Rackmount/Tower, Rack capacity: 2U, Product colour: Silver. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 12 V. Compliance certificates: BSMI, CE, EAC, RCM, RoHS. Sustainability certificates: BSMI, CE, EAC, RCM, RoHS. Width: 433 mm, Depth: 720 mm, Height: 86.5 mm

CyberPower BPE144VL2U01 is an Extended Battery Module (EBM) which can be used in conjunction with compatible UPS systems to provide prolonged system runtime during power interruption. The battery module comes with DC plug-and-play power connectors to allow for adding multiple EBMs. With the built-in charger design, the EBMs can charge directly from utility without resorting to UPS, significantly saving total charging time when charging multiple EBMs.

The product features hot-swappable battery packs, allowing users to safely replace battery module without interrupting connected loads. The sealed lead-acid battery used within the EBM is stable and safe, which ensures the power system's reliable performance. Designed with industrial-grade metal enclosure, the product is suitable for data center and critical applications.

Design

Form factor: Rackmount/Tower
Feature: Rack mounting
Rack capacity: 2U
Product colour: Silver
Housing material: Metal
Brand compatibility: CyberPower
Compatible products: OL5KERTHD, OL6KERTHD

Battery

Battery technology: Sealed Lead Acid (VRLA)
Number of batteries supported: 12
Battery capacity: 9 Ah
Battery voltage: 12 V
Feature: Hot-swap battery

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 45 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: BSMI, CE, EAC, RCM, RoHS

Sustainability

Feature: Sustainability compliance
Sustainability certificates: BSMI, CE, EAC, RCM, RoHS

Weight & dimensions

Width: 433 mm
Depth: 720 mm
Height: 86.5 mm
Weight: 44 kg

Packaging content

Feature: Rack mount kit

Packaging data

Package width: 600 mm
Package depth: 1100 mm
Package height: 335 mm
Package weight: 53.1 kg
