Crimped ring terminal, copper, for 16mm2 cable, 10pcs.
Product reference:
14-9990000822072
Tinned copper cable lug, crimped, with inspection hole. Made of pure electrolytic copper with a tinned finish for improved electrical contact. With inspection hole to check correct cable position. Fully annealed lug to ensure optimum resistance. Suitable for low voltage cables.
Crimped ring terminal, copper, for 16mm2 cable, 10pcs.
Product reference:
14-9990000822072
Tinned copper cable lug, crimped, with inspection hole. Made of pure electrolytic copper with a tinned finish for improved electrical contact. With inspection hole to check correct cable position. Fully annealed lug to ensure optimum resistance. Suitable for low voltage cables.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Not available

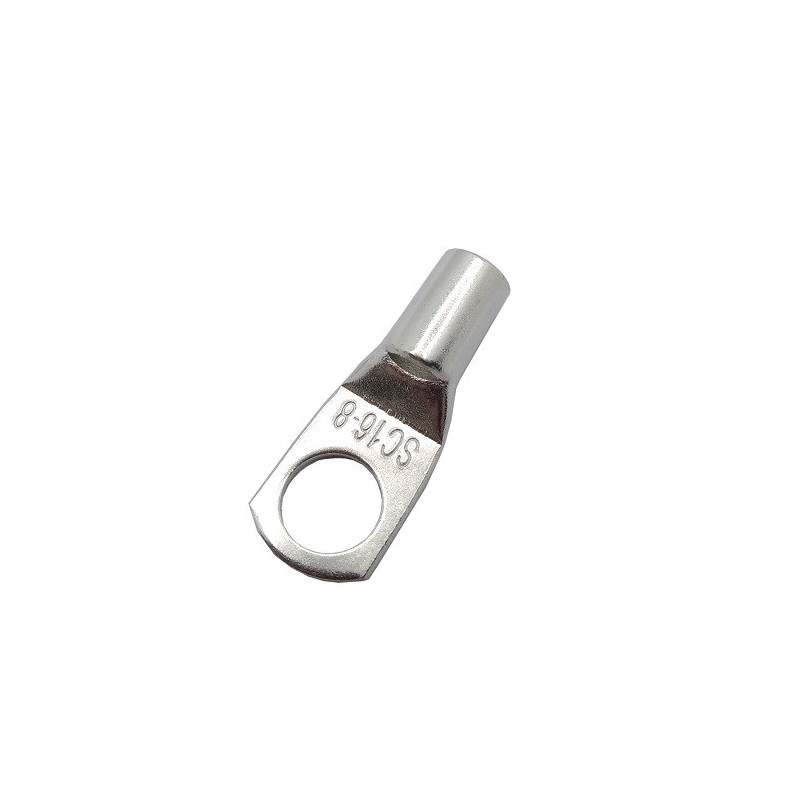

Crimped loop terminal, copper, for 16mm² cable, 10 pcs.
Features:
- Tinned copper cable lug, crimped, with inspection hole.
- Made of pure electrolytic copper with a tinned finish that improves electrical contact.
- With an inspection cavity that allows you to check the correct position of the cable.
- Fully annealed tip to ensure optimal resistance.
- Suitable for low voltage cables.

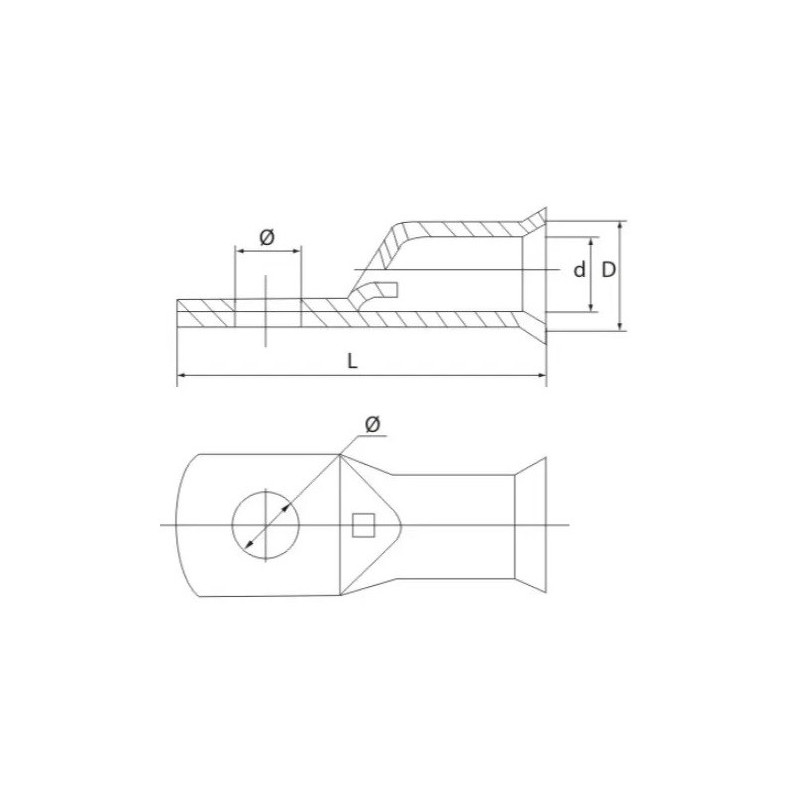

Technical data:
- Cable cross-sectional area: 16.0mm².
- Material: copper gt; /=99.9%.
- Surface treatment: tin plated.
- Suitable screw diameter: 8mm.
- Insulated: no.
- Connection angle: 180° (horizontal).
- Tip length: 30.0mm.
- Depth: 11.0mm.
- With inspection cavity: yes.
- Inner diameter: 5.8mm.
- Outer diameter: 7.5mm.
- The set includes: 10 pcs.
| Height | 50mm |
| Length | 150mm |
| Weight | 200g |
| Width | 100mm |
