Crimped loop terminal, copper, for 10mm2 cable, 10pcs.
Product reference:
14-9990000822065
Pressed copper ring terminal 10mm², tinned, with inspection hole. Ideal for low voltage cables. Set - 10 pcs.
Crimped loop terminal, copper, for 10mm2 cable, 10pcs.
Product reference:
14-9990000822065
Pressed copper ring terminal 10mm², tinned, with inspection hole. Ideal for low voltage cables. Set - 10 pcs.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Not available

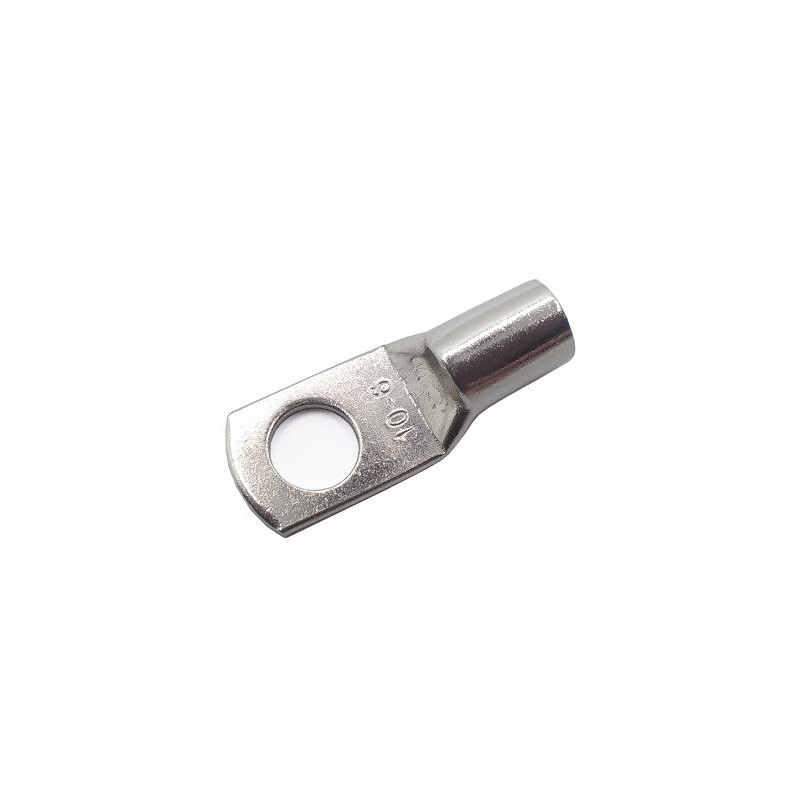

Crimped loop terminal, copper, for 10mm² cable, 10 pcs.
Features:
- Tinned copper cable lug, crimped, with inspection hole.
- Made of pure electrolytic copper with a tinned finish that improves electrical contact.
- With an inspection cavity that allows you to check the correct position of the cable.
- Fully annealed tip to ensure optimal resistance.
- Suitable for low voltage cables.

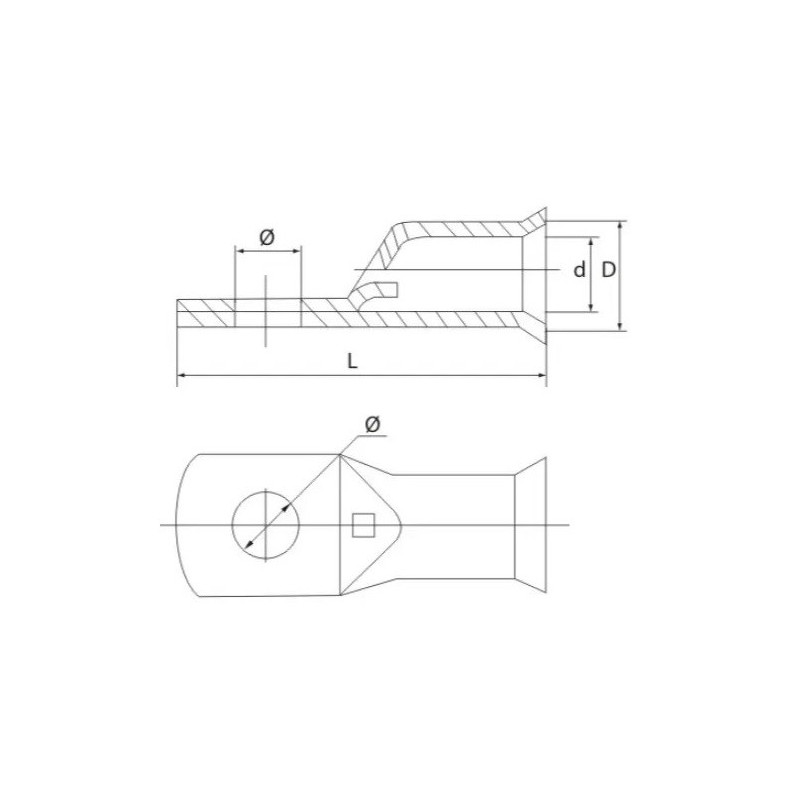

Technical data:
- Cable cross-sectional area: 10.0mm².
- Material: copper gt; /=99.9%.
- Surface treatment: tin plated.
- Suitable screw diameter: 6mm.
- Insulated: no.
- Connection angle: 180° (horizontal).
- Tip length: 25.0mm.
- Depth: 9.0mm.
- With inspection cavity: yes.
- Inner diameter: 5.0mm.
- Outer diameter: 6.7mm.
- The set includes: 10 pcs.
| Height | 100mm |
| Length | 150mm |
| Weight | 200g |
| Width | 50mm |
